9323 HD/SD Embedder/De-Embedder with A/V Processing

Tabs

Overview

(This product is discontinued. Please see 9933-EMDE-ADDA for its replacement.) In addition to providing 24-bit basic audio embedding/de-emdedding and crosspoint of up to eight analog input channels and 16 AES input/output channels, the 9323 offers AFD code insertion, full timecode control, and video proc features. Advanced audio features such as AES Sample Rate Converters allow error-free audio embedding from external asynchronous sources.

Timecode can be inserted on the SDI output from selectable sources such as SDI VITC waveform, SD/HD ATC_VITC/ATC_LTC. +LTC option allows LTC input/output on shared port, with bi-directional conversion between VBI and LTC on RS-485 or any audio I/O.

The 9323 features full user remote and card-edge controls for audio levels and routing, video proc, and other functions. Factory presets enable a return to factory settings.

9323 Options

Audio Mixing (+AMx)
Linear Acoustic® Loudness Processing (+LP)
Loudness Metering (+LM-C)
Linear Acoustic® Upmixing (+UM)
LTC In/Out (+LTC)

Features

HD/SD universal digital inputs
16 channels of de-embedding and embedding
Eight analog audio inputs with 24-bit conversion
24-bit Embedded audio processing
Audio channel mapping phase inversion and level control
Audio embed adaptive SRC allows asynchronous 48 kHz AES audio to automatically sync with card 48 kHz timing for glitch-free AES embedding
Four internal tone generators
Video processing controls
Local or remote user controls
Remote control/monitoring via Dashboard ™ software or OGCP-9000 remote control panels
Five year warranty

Options

Option

COMPASS CARD OPTIONS OVERVIEW

Linear Acoustic Loudness Processing (+LP51, +LP20, +2LP20)

Loudness Metering (+LM-C)

Linear Acoustic® Upmixing (+UM)

Audio Mixing (+AMx)

LTC In/Out (+LTC)

Diagrams

Specifications

Electrical
Power: 10 Watts
Power
(Dolby®-DEC Option): 12.5 Watts
HD/SD-SDI Input
Number of Inputs: 1
Standard: SMPTE 292 and 259M
Return Loss: >15 dB at 5 MHz - 1.485 GHz

AES Input
Number of Inputs: 16-Ch unbalanced BNC (nominal 48 kHz only)
Impedance: 75 Ω
Input Level: 0.1 V to 2.5 V p-p  (5 V p-p tolerant)
Resolution: 24-bit

Analog Audio Input
Number of Inputs: 8-Ch Balanced
Connector: Removable 3-pin Phoenix
Signal Level: up to +24 dBu
Sample Rate: 48 kHz

AES Output
Number of Outputs: 16-Ch unbalanced BNC
Impedance: 75 Ω
Sample Rate: 48 kHz
Resolution: 24-bit

HD/SD-SDI Output
Number of Outputs: 2 processed , 2 reclocked
Standard: SMPTE 292 and 259M
Signal Level: 800 mV nominal
Return Loss: >15 dB at 5 MHz - 270 MHz >12 dB at 270 MHz - 1.485 GHz
Jitter: HD: < 0.15 UI
SD: < 0.10 UI
Embedded Audio: 16-Ch SD/HD

Rear Module Options

Rear Modules

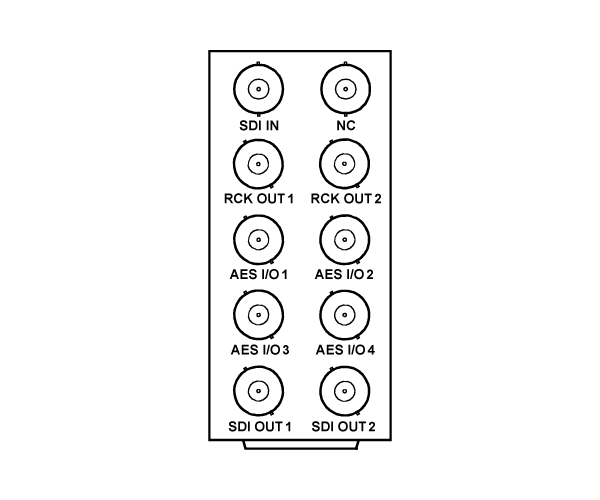

RM20-9323-A

   • SDI In
   • (2) Reclocked Input SDI Out
   • (4) AES In/Out
   • (2) Processed SDI Out
   (All coaxial connectors BNC)

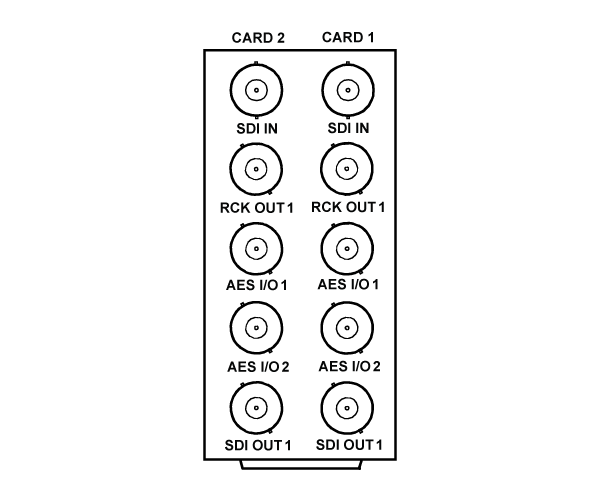

RM20-9323-A/S

   (Dual-card (split) rear module; connections are per card)
   • SDI In
   • (1) Reclocked Input SDI Out
   • (2) AES In/Out
   • (1) Processed SDI Out
   (All coaxial connectors BNC)

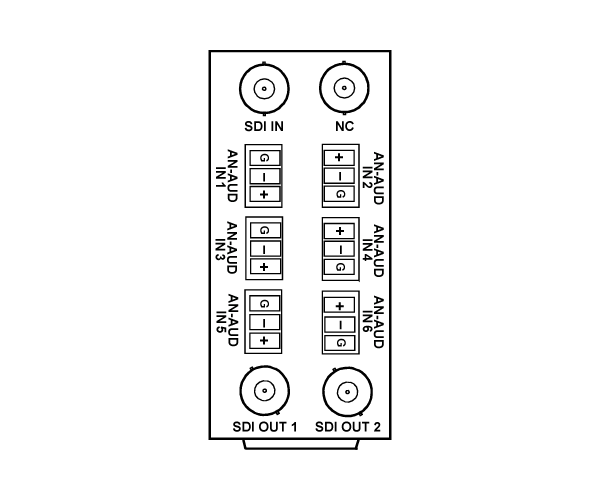

RM20-9323-B

   • SDI In
   • (6) Balanced Analog Audio In
   • (2) SDI Out
   (All coaxial connectors BNC)

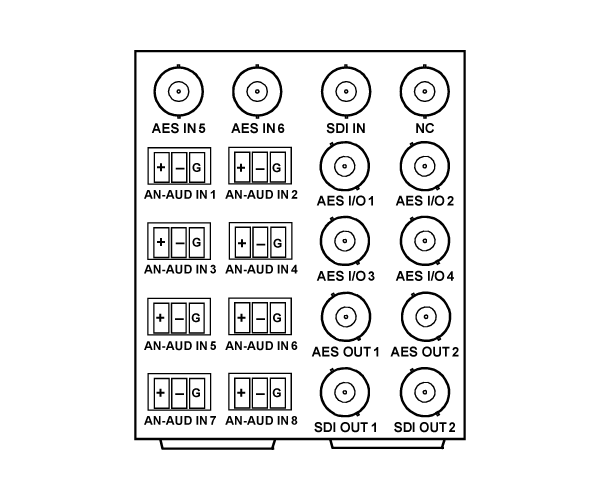

RM20-9323-C

   • SDI In
   • (4) AES In/Out (1-4)
   • (2) AES Out (1-2)
   • (2) AES In (5-6)
   • (8) Balanced Analog Audio In
   • (2) SDI Out
   (All coaxial connectors BNC)

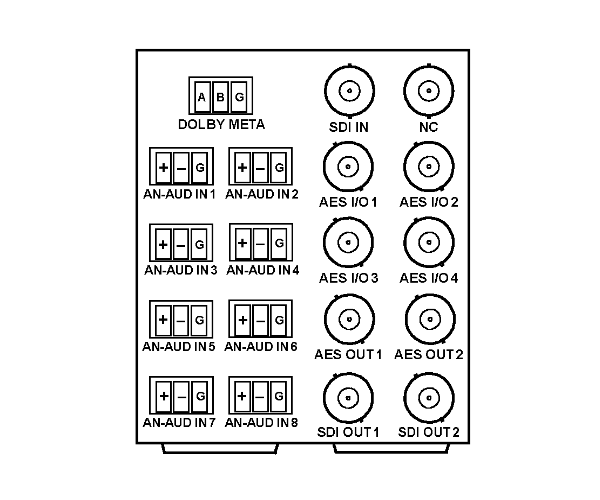

RM20-9323-D

   • SDI In
   • (4) AES In/Out (1-4)
   • (2) AES Out (1-2)
   • Metadata Out/LTC In/Out RS-485
   • (8) Balanced Analog Audio In
   • (2) SDI Out
   (All coaxial connectors BNC)

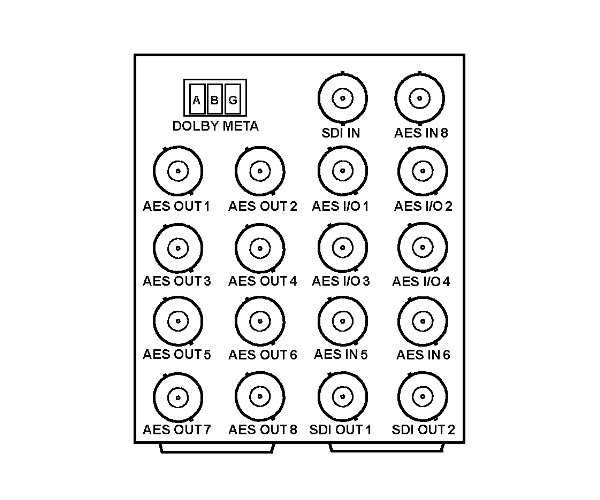

RM20-9323-E

   • SDI In
   • (4) AES In/Out (1-4)
   • (8) AES Out (1-8)
   • (3) AES In (5, 6, 8)
   • Metadata Out/LTC In/Out RS-485
   • (2) SDI Out
   (All coaxial connectors BNC)

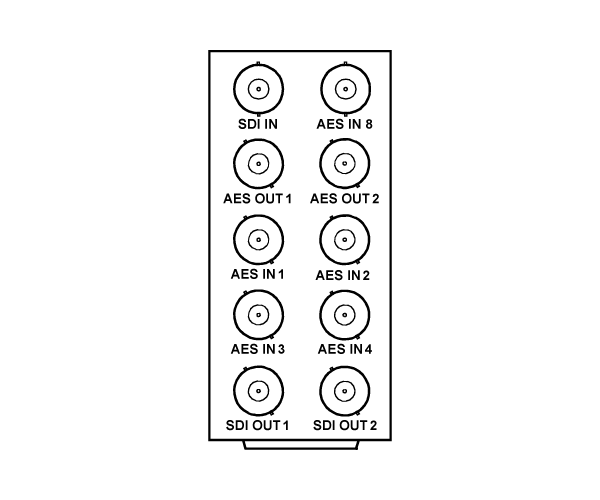

RM20-9323-F

   • SDI In
   • (5) AES In (1-4, 8)
   • (2) AES Out (1-2)
   • (2) SDI Out
   (All coaxial connectors BNC)

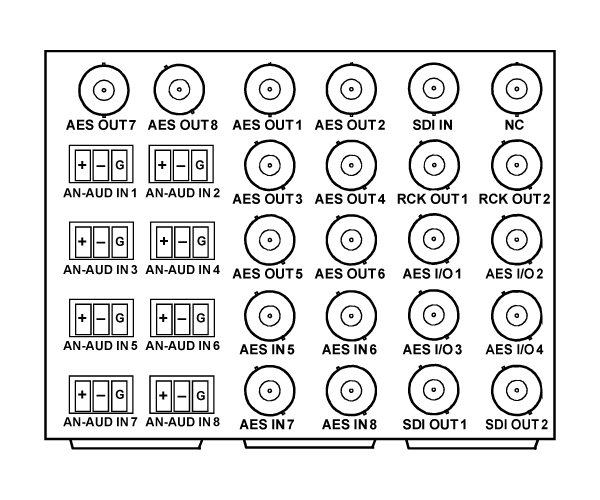

RM20-9323-G

   • SDI In
   • (2) Reclocked Input SDI Out
   • (4) AES In/Out (1-4)
   • (8) AES Out (1-8)
   • (8) AES In (5-8)
   • (8) Balanced Analog Audio In
   • (2) SDI Out
   (All coaxial connectors BNC)

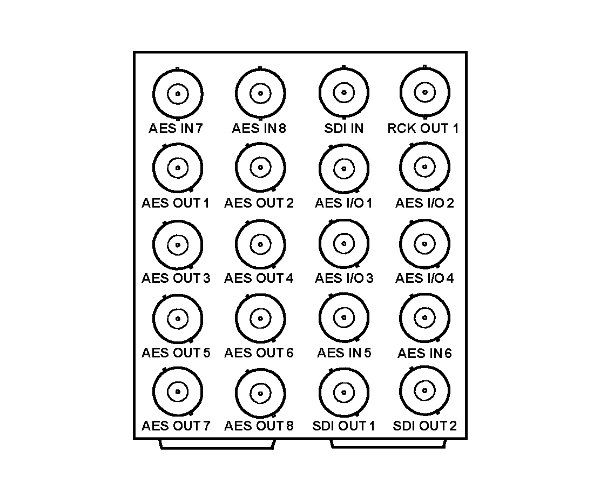

RM20-9323-H

   • SDI In
   • (1) Reclocked Input SDI Out
   • (4) AES In/Out (1-4)
   • (8) AES Out (1-8)
   • (4) AES In (5-8)
   • (2) SDI Out
   (All coaxial connectors BNC)

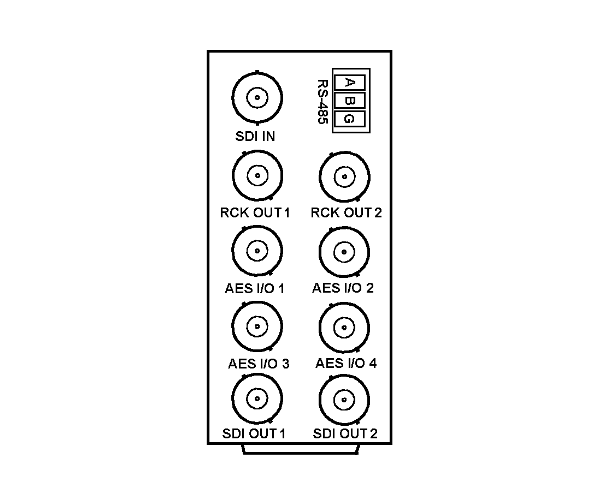

RM20-9323-J

   • SDI In
   • (2) Reclocked Input SDI Out
   • (4) AES In/Out (1-4)
   • Metadata Out/LTC In/Out RS-485
   • (2) SDI Out
   (All coaxial connectors BNC)

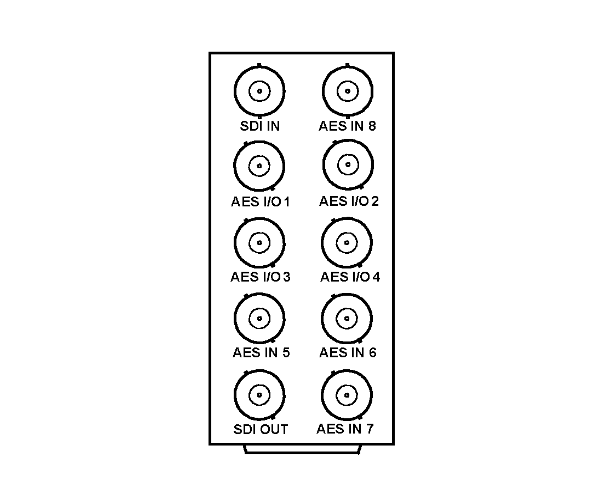

RM20-9323-K

   • SDI In
   • (4) AES In/Out (1-4)
   • (4) AES In (5-8)
   • (1) SDI Out
   (All coaxial connectors BNC)

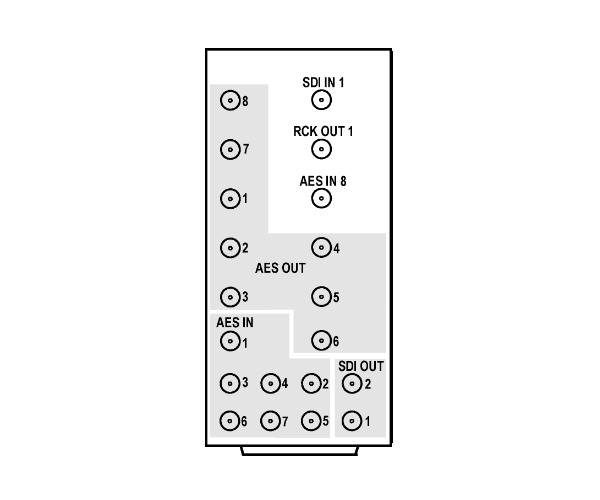

RM20-9323-E-DIN
RM20-9323-E-HDBNC

   • SDI In
   • (1) Reclocked Input SDI Out
   • (8) AES Out (1-6)
   • (7) AES In (1-7)
   • (2) SDI Out
   (All coaxial connectors DIN1.0/2.3 or HD-BNC)

Ordering Information

9323 HD/SD-SDI Audio Embedder/De-Embedder with A/V Processing
RM20-9323-A 20-Slot Frame Rear I/O Module (Standard Width) HD/SD-SDI Input, 2 HD/SD-SDI Reclocked Outputs, AES BNCs: 4 In/Out, 2 HD/SD-SDI Output BNCs
RM20-9323-A/S 20-Slot Frame Rear I/O Module (Split; supports 2 cards) HD/SD-SDI Input, 1 HD/SD-SDI Reclocked Output, AES BNCs: 2 In/Out, 1 HD/SD-SDI Output BNC (connections are per card)
RM20-9323-B 20-Slot Frame Rear I/O Module (Standard Width) HD/SD-SDI Input BNC, 6 Analog Audio Inputs, 2 HD/SD-SDI Output BNCs
RM20-9323-C 20-Slot Frame Rear I/O Module (Double Width) HD/SD-SDI Input, AES BNCs: 2 In, 4 In/Out, 2 Out, 8 Analog Audio Inputs, 2 HD/SD-SDI Output BNCs
RM20-9323-D 20-Slot Frame Rear I/O Module (Double Width) HD/SD-SDI In, AES BNCs: 4 In/Out, 2 Out, 8 Analog Audio In, 2 HD/SD-SDI Out BNCs, RS-485 LTC / Metadata I/O Port
RM20-9323-E 20-Slot Frame Rear I/O Module (Double Width) HD/SD-SDI Input, AES BNCs: 4 In/Out, 2 In, 8 Out, RS-485 LTC / Metadata I/O Port, 2 HD/SD-SDI Output BNCs
RM20-9323-F 20-Slot Frame Rear I/O Module (Standard Width) HD/SD-SDI Input, AES BNCs: 4 In/Out, 2 Out, 2 HD/SD-SDI Output BNCs
RM20-9323-G 20-Slot Frame Rear I/O Module (Triple Width) HD/SD-SDI Input, 2 HD/SD-SDI Reclocked Outputs, 8 AES In BNCs, 8 AES Out BNCs, 8 Analog Audio In BNCs and 2 HD/SD-SDI Output BNCs
RM20-9323-H 20-Slot Frame Rear I/O Module (Double Width) Digital Video Input, 4 AES In BNCs, 4 AES In/Out BNCs, 8 AES Out BNCs and 2 SDI Output BNCs
RM20-9323-J 20-Slot Frame Rear I/O Module (Standard Width) HD/SD-SDI Input, 4 AES BNC In/Out, 2 HD/SD-SDI Reclocked Outputs, 2 HD/SD-SDI Processed Outputs, RS-485 LTC / Metadata I/O Port
RM20-9323-K 20-Slot Frame Rear I/O Module (Standard Width) HD/SD-SDI Input BNC, 4 AES BNC In/Out, 4 AES Input BNCs, HD/SD-SDI Output BNC
RM20-9323-E-DIN 20-Slot Frame Rear I/O Module (Standard Width, High Density) HD/SD-SDI Input, 8 AES Inputs, 8 AES Outputs, 2 HD/SD-SDI Outputs, 1 Reclocked HD/SD-SDI Output (all connectors DIN1.0/2.3)
RM20-9323-E-HDBNC 20-Slot Frame Rear I/O Module (Standard Width, High Density) HD/SD-SDI Input, 8 AES Inputs, 8 AES Outputs, 2 HD/SD-SDI Outputs, 1 Reclocked HD/SD-SDI Output (all connectors HD-BNC)
