9005 Triple-Channel 3G/HD/SD Reclocking Distribution Amplifier

Tabs

Overview

(This product is discontinued. Please see 9910DA-4Q-3G-RCK for its replacement.) The 9005 is a three-channel, multi-rate SDI distribution amplifier capable of equalizing  and reclocking 3G, HD, and SD signals. Excellent receiver EQ performance allows for up to 160m cable lengths for HD signals.

Features

Automatic rate detection/display for all industry-standard data rates
Equalize up to 160m of Belden 1694A cable at 1.485 Gbit
Available high-density rear modules allow up to 20 cards per frame
Remote control/monitoring via Dashboard ™ software or OGCP-9000 remote control panels
Five year warranty

Diagrams

Specifications

Electrical
Power: 3 watts

3G/HD/SD-SDI Inputs
Number of Inputs: 3
Standard: SMPTE 424M, 292M, and 259M
Return Loss: >15 dB at 5 MHz - 1.485 GHz
>10 dB at 1.5 GHz to 3 GHz

Cable Length Equalized (w/Belden 1694A)
3 Gbps: 100m
1.485 Gbps: 160m
143-360 Mbps: 350m

3G/HD/SD-SDI Output
Number of outputs: 7 (3 ASI Compatible)
Standard: SMPTE 424M, 292M, and 259M
Signal Level: 800 mV nominal
Return Loss: >15 dB at 5 MHz - 1.485 GHz
>10 dB at 1.5 GHz to 3 GHz
Jitter (wideband): HD: < 0.2 UI

Rear Module Options

Rear Modules

Some Rear I/O Modules shown below may also be used for other Cobalt card models. This allows you to re-use rear modules from one card model to another. The Manufacturing Part Number (MPN) shown in the images below is the common code that is used to identify multi-use rear modules. Cross-compatibility can be checked using this number and About Cobalt Rear I/O Modules and Rear Module Cross-Reference at Reference and Help Documents.

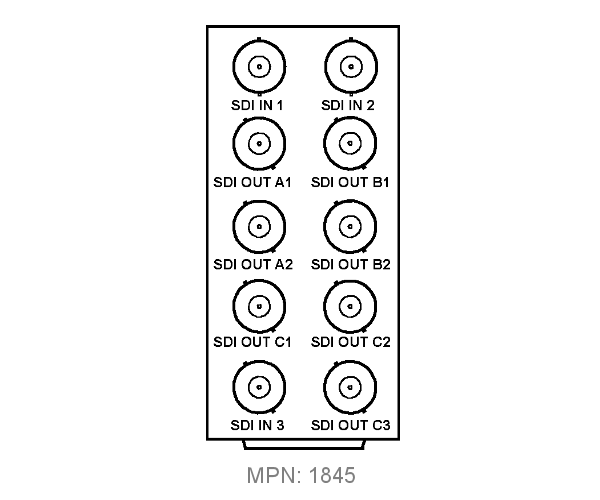

RM20-9005-A

   • (3) SDI In
   • (7) SDI Out (1x2 / 1x2 / 1x3)
   (All coaxial connectors BNC)
   (OUT A1, OUT B2, OUT C1, and OUT C3 are
   inverting and not compatible with ASI)

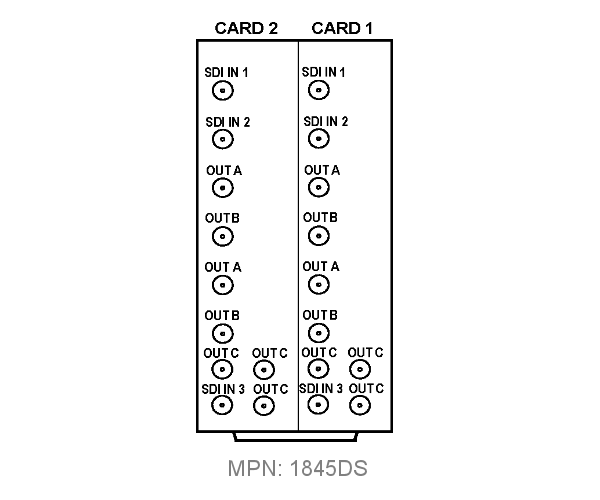

RM20-9005-B/S-DIN
RM20-9005-B/S-HDBNC

   (Dual-card (split) rear module; connections are per card)
   • (3) SDI In
   • (7) SDI Out (1x2 / 1x2 / 1x3)
   (All coaxial connectors DIN1.0/2.3 or HD-BNC)
   (OUT A1, OUT B2, OUT C1, and OUT C3 are
   inverting and not compatible with ASI)

Ordering Information

9005 Triple-Channel 3G/HD/SD Reclocking Distribution Amplifier, 3 Channels: 1x2, 1x2, 1x3
RM20-9005-A 20 Slot Frame Rear I/O Module (Standard Width) Triple 3G/HD/SD-SDI Inputs, 7 Reclocked 3G/HD/SD-SDI Outputs (1x2 / 1x2 / 1x3)
RM20-9005-B/S-HDBNC 20 Slot Frame Rear I/O Module (Split; supports 2 cards) Triple 3G/HD/SD-SDI Inputs, 7 Reclocked 3G/HD/SD-SDI Outputs (1x2 / 1x2 / 1x3) (connections are per card; all connectors are HD-BNC)
RM20-9005-B/S-DIN 20 Slot Frame Rear I/O Module (Split; supports 2 cards) Triple 3G/HD/SD-SDI Inputs, 7 Reclocked 3G/HD/SD-SDI Outputs (1x2 / 1x2 / 1x3) (connections are per card; all connectors are DIN 1.0/2.3)
