9252 AES Audio Distribution Amplifier, 110 Ohms

Tabs

Overview

(This product is discontinued. Please see 9913DA-AES110-RG for its replacement.) The 9252 is an AES/EBU distribution amplifier designed for broadcast use. It provides eight, 110Ω balanced copies of the 110Ω balanced input signal. The 9252 supports audio sampling frequencies from 30 kHz to 192 kHz. Cable equalization and reclocking techniques enable the 9252 to reliably recover incoming digital audio signals.

Features

Supports audio sampling frequencies from 30 kHz to 192 kHz
Cable equalization and data reclocking on incoming AES/EBU signal
1x8 DA: one input, eight outputs
110 Ω balanced AES connections
Remote control/monitoring via DashBoard™ software
Five year warranty

Diagrams

Specifications

Electrical
Power: 4 Watts

AES Input
Number of Inputs: 1 balanced
Impedance: 110 Ω
Resolution: 24-bit
Level: 0.2 - 7 Vp-p
Sample Rate: 30 kHz to 192 kHz

AES Output
Number of Outputs: 8 unbalanced
Impedance: 110 Ω
Resolution: 24-bit
Level: 1 Vp-p
Sample Rate: 30 kHz to 192 kHz
Jitter: <5 ns

Rear Module Options

Rear Modules

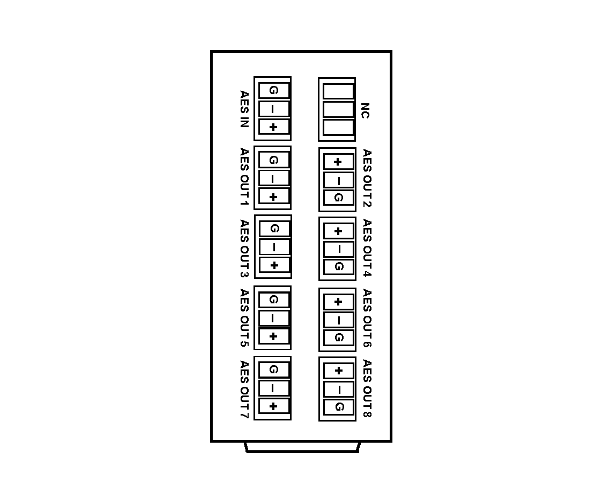

RM20-9252-B

• Differential 110-ohm AES In
• (8) Differential 110-ohm AES Out

Ordering Information

9252 1 X 8 AES/EBU Reclocking Distribution Amplifier, 110 Ohm, Balanced, Phoenix I/O
RM20-9252-B 20-Slot Frame Rear I/O Module (Standard Width) 1 Differential AES Audio In, 8 Differential AES Audio Out
