9062 Up-Down-Cross Converter with HD/SD-SDI Input and Frame Sync

Tabs

Overview

(This product is discontinued. Please see 9902-UDX for its replacement.) The 9062 offers full-feature HD/SD format conversion, an HD/SD-SDI input, video processing, embedded audio crosspoint and level control, and frame sync with video/audio offset.

The 9062 additionally provides AFD functions that detect the incoming AFD code, allow independent custom ARC to be applied for each incoming AFD code, and set the desired AFD code to be inserted on the output, even if there is no code detected on the input. Closed captions and timecode are preserved through up, down, and cross conversions. 708/608 CC data is extracted from the transport stream,  converted to line 21 data on a down conversion, and inserted into the transport stream on an up conversion. The 9062 features full user remote and card-edge proc control with user memory that allows adjustment of white level, black level, color gain, color phase, audio levels, audio routing, frame sync, and many other controls. Factory presets enable a return to factory settings.

9062 Options

Audio Mixing (+AMx)
Loudness Metering (+LM-C)
Linear Acoustic® Upmixing (+UM)
Linear Acoustic® Loudness Processing (+LP)
LTC In/Out (+LTC)

Features

HD/SD digital inputs
HD/SD closed captioning support and flexible timecode processing
Up, Down, Cross and Aspect Ratio Conversion
AFD code insertion and AFD ARC control
Selectable Safe Action, Safe Title, and Center Cross overlays
Frame sync with up to 13 frames of user adjustable delay
Embedded audio offset adjustment for lip-sync alignment
Audio channel mapping, downmixing, and level control
3:2 pulldown and reverse 3:2 pulldown conversion
16 user presets
Remote control/monitoring via Dashboard ™ software or OGCP-9000 remote control panels
Detail enhancement and noise reduction
Timecode insertion/conversion. +LTC option allows LTC input/output on shared port, with bi-directional conversion between VBI and LTC on RS-485 or any audio I/O.
Five year warranty

Options

Option

COMPASS CARD OPTIONS OVERVIEW

Audio Mixer (+AMx)

Loudness Meter (+LM)

Linear Acoustic Upmixing (+UM)

Linear Acoustic Loudness Processing (+LP51, +LP20, +2LP20)

LTC In/Out (+LTC)

Diagrams

Specifications

Electrical
Power: 18 Watts

HD/SD-SDI Input
Number of Inputs: 1
Standard: SMPTE 292 and 259M
Return Loss: >15 dB at 5 MHz - 1.485 GHz

Reference Video Input
Number of Inputs: 2 looping (openGear® frame)
Standard: Tri-level sync (SMPTE 274) and
black burst (NTSC and PAL)

Processing Delay
Minimum Frame Sync Delay: < 3 lines

HD/SD-SDI Output
Number of Outputs: 4 reclocked, 4 processed
Standard: SMPTE 292 and 259M
Signal Level: 800 mV nominal
Return Loss: >15 dB at 5 MHz - 270 MHz
>12 dB at 270 MHz - 1.485 GHz
Jitter: HD: < 0.15 UI
SD: < 0.10 UI
Embedded Audio: 16-Ch SD/HD

Note
This card uses a daughtercard mounted on the card right-side (viewed from front). As such, this card cannot be installed in Slot 20 of a 20-slot frame (the card must be installed in even-numbered slots 2 through 18). Please note this when fitting out a frame using this card.

Rear Module Options

Rear Modules

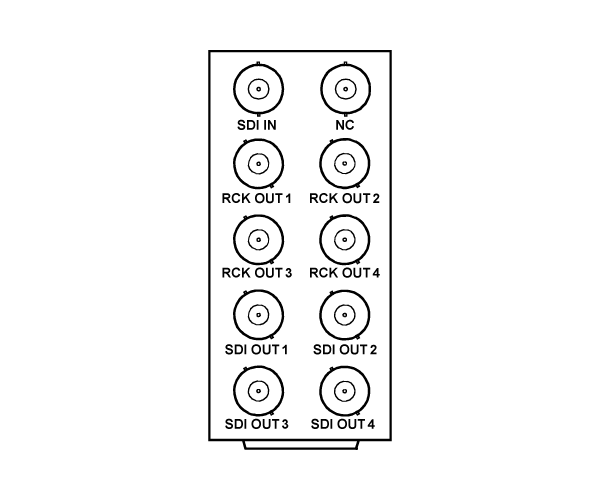

RM20-9062-A

   • SDI In
   • (4) Reclocked Input SDI Out
   • (4) Processed SDI Out
   (All coaxial connectors BNC)

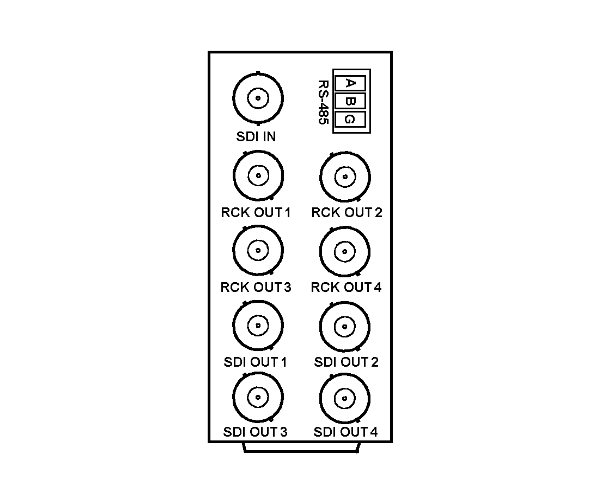

RM20-9062-B

   • SDI In
   • (4) Reclocked Input SDI Out
   • Metadata Out/LTC In/Out RS-485
   • (4) Processed SDI Out
   (All coaxial connectors BNC)

Ordering Information

9062 Up-Down-Cross Converter with HD/SD-SDI Input and Frame Sync
RM20-9062-A 20-Slot Frame Rear I/O Module (Standard Width) HD/SD-SDI Input BNC, 4 HD/SD-SDI Reclocked Output BNCs, 4 HD/SD-SDI Processed Output BNCs
RM20-9062-B 20-Slot Frame Rear I/O Module (Standard Width) HD/SD-SDI Input BNC, 4 HD/SD-SDI Reclocked Output BNCs, 4 HD/SD-SDI Processed Output BNCs,  RS-485 LTC / Metadata I/O Port
