9066 Up-Converter with Analog/SDI Input, Frame Sync, and Audio Embed/De-Embed

Tabs

Overview

(This product is discontinued. Please see 9902-UDX for its replacement.) The 9066 offers upconversion (including analog-to-digital conversions using 12-bit conversion depth), SD-SDI and analog video inputs, video processing, full audio embed/de-embed, crosspoint, and level control (with analog and AES audio inputs), and frame sync with video/audio offset. The upconverter allows upconversion to several HD formats, or can pass SD video without conversion.

The 9066 also provides AFD functions that detect the incoming AFD code, allow independent custom ARC to be applied for each incoming AFD code, and set the desired AFD code to be inserted on the output, even if there is no code detected on the input. Closed captions and timecode are preserved through up conversions. CC data is decoded from line 21 and inserted into the SDI stream on a user-selectable line. The 9066 provides full user remote and card-edge proc control (with user memory) that allows adjustment of gain, offset, saturation/hue, audio levels, audio routing, frame sync, and many other controls. Factory presets enable a return to factory settings.

9066 Options

Audio Mixing (+AMx)
Loudness Metering (+LM-C)
Linear Acoustic® Loudness Processing (+LP)
Linear Acoustic® Upmixing (+UM)
LTC In/Out (+LTC)

Features

SD analog and digital inputs
Differential analog video inputs for power hum rejection
5-Line adaptive comb filter for SD-Composite mode
Upconversion and aspect ratio conversion
Detail enhancement and noise reduction
Selectable safe action, safe title, and center cross overlays
Analog and AES audio inputs; AES outputs
24-bit analog audio conversion
24-bit audio embedding or de-embedding
Audio channel mapping, downmixing, and level control
Audio offset adjustment for lip-sync alignment
Audio embed adaptive SRC allows asynchronous 48 kHz AES audio to automatically sync with card 48 kHz timing for glitch-free AES embedding
Frame sync with up to 13 frames of user adjustable delay
Closed captioning support and flexible timecode processing
AFD code insertion and AFD ARC control
Remote control/monitoring via Dashboard ™ software or OGCP-9000 remote control panels
Timecode insertion/conversion. +LTC option allows LTC input/output on shared port, with bi-directional conversion between VBI and LTC on RS-485 or any audio I/O
16 user presets
Five year warranty

Options

Option

COMPASS CARD OPTIONS OVERVIEW

Audio Mixer (+AMx)

Loudness Meter (+LM)

Linear Acoustic Upmixing (+UM)

Linear Acoustic Loudness Processing (+LP51, +LP20, +2LP20)

LTC In/Out (+LTC)

Diagrams

Specifications

Electrical
Power: 23 watts

HD/SD-SDI Input
Number of Inputs: 1
Standard: SMPTE 292 and 259M
Return Loss: >15 dB at 5 MHz - 1.485 GHz

Analog Video Input
HD Standard: YPbPr or RGB SMPTE
SD Standard: Composite, Y/C or Component
(YPbPr BetaCam™, MII™ or
SMPTE/N10)
Impedance: 75 Ω

AES Input
Number of Inputs: 16-Ch unbalanced BNC (nominal 48 kHz only)
Impedance: 75 Ω
Input Level: 0.1 V to 2.5 V p-p
(5 V p-p tolerant)
Resolution: 24-bit

Analog Audio Input
Number of Inputs: 8-Ch balanced
Signal Level: up to +24 dBu
Sample Rate: 48 kHz

Reference Video Input
Number of Inputs: 2 looping (openGear® frame)
Standard: Tri-level sync (SMPTE 274) and
black burst (NTSC and PAL)

Processing
A/D Converson: HD: 4:4:4 SD: 8:8:8
Quantization: 12-bit A to D and 10-bit video
data path
SD Comb Filter: 5-line adaptive
Freq. Response: HD: Y - 0-25 MHz +/- 0.3 dB
HD: Pb, Pr 0-13.5 MHz +/-0.3 dB
SD: 5.2 MHz +/- 0.25 dB

AES Output
Number of Outputs: 16-Ch unbalanced BNC
Impedance: 75 Ω
Sample Rate: 48 kHz
Resolution: 24-bit

HD-SDI Output
Number of outputs: 2
Standard: SMPTE 292 and 259M
Signal Level: 800 mV nominal
Return Loss: >15 dB at 5 MHz - 270 MHz
>12 dB at 270 MHz - 1.485 GHz
Jitter: HD: < 0.15 UI
SD: < 0.10 UI
Embedded Audio: 16-Ch SD/HD

Note
This card uses a daughtercard mounted on the card right-side (viewed from front). As such, this card cannot be installed in Slot 20 of a 20-slot frame (the card must be installed in even-numbered slots 2 through 18). Please note this when fitting out a frame using this card.

Rear Module Options

Rear Modules

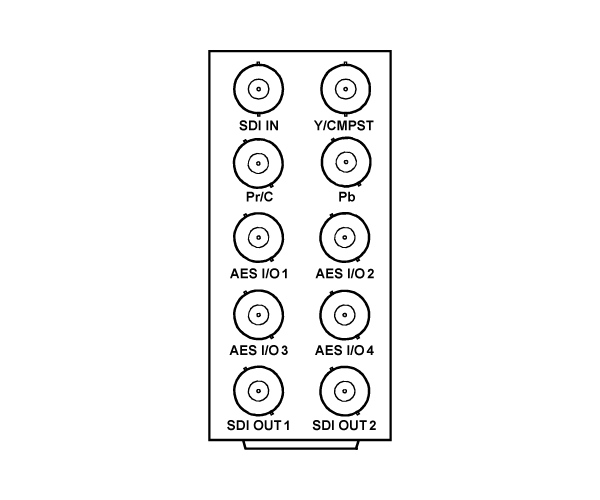

RM20-9066-A

   • SDI In
   • Component/CVBS Analog Video In
   • (4) AES In/Out
   • (2) SDI Out
   (All coaxial connectors BNC)

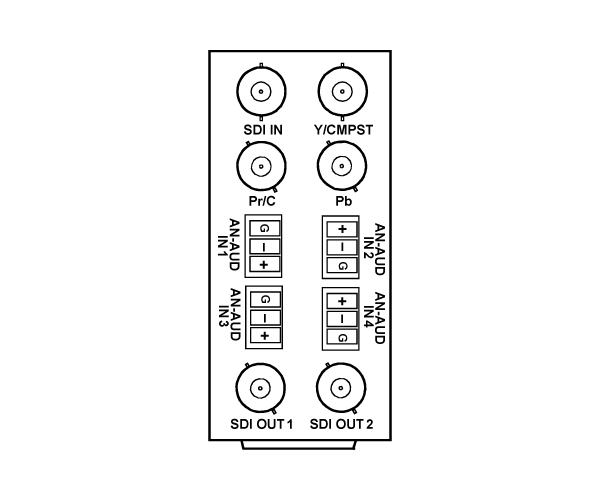

RM20-9066-B

   • SDI In
   • Component/CVBS Analog Video In BNCs
   • (4) Balanced Analog Audio In
   • (2) SDI Out
   (All coaxial connectors BNC)

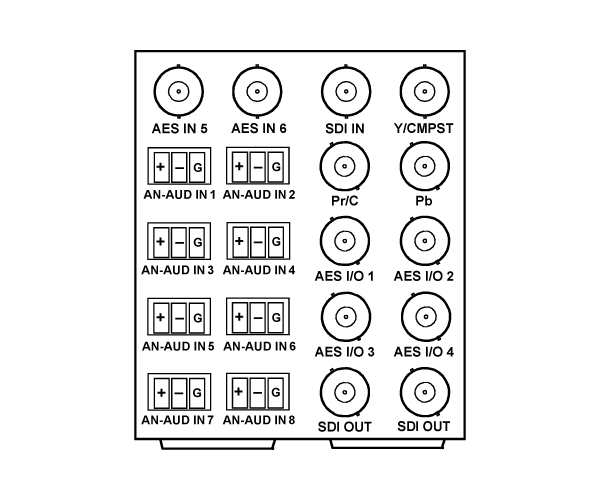

RM20-9066-C

   • SDI In
   • Component/CVBS Analog Video In BNCs
   • (4) AES In/Out (1-4)
   • (2) AES In (5-6)
   • (8) Balanced Analog Audio In
   • (2) SDI Out

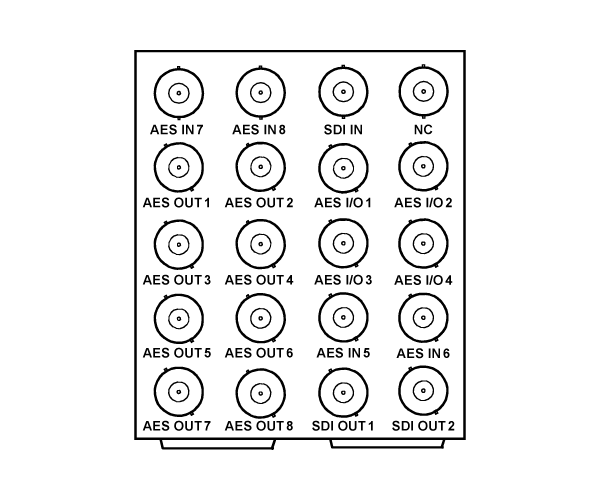

RM20-9066-D

   • SDI In
   • (4) AES In/Out (1-4)
   • (8) AES Out (1-8)
   • (4) AES In (5-8)
   • (2) SDI Out
   (All coaxial connectors BNC)

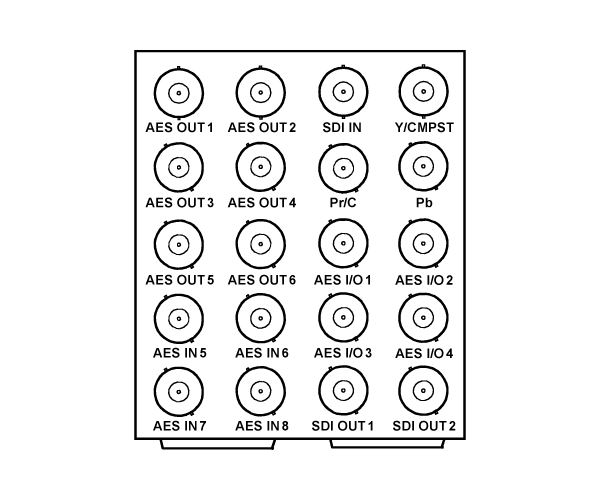

RM20-9066-E

   • SDI In
   • Component/CVBS Analog Video In BNCs
   • (4) AES In/Out (1-4)
   • (6) AES Out (1-6)
   • (4) AES In (5-8)
   • (2) SDI Out
   (All coaxial connectors BNC)

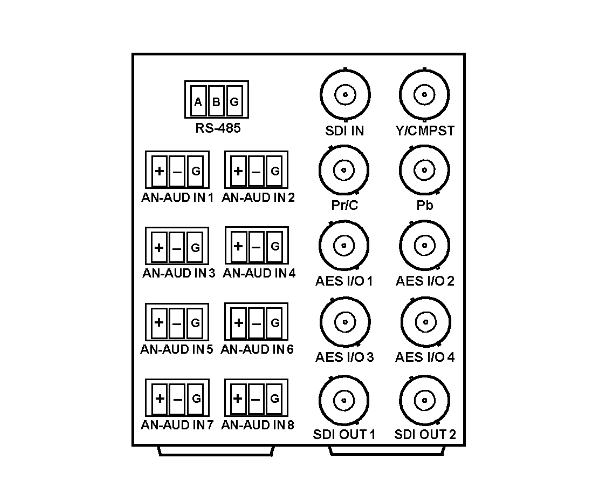

RM20-9066-F

   • SDI In
   • Component/CVBS Analog Video In BNCs
   • (4) AES In/Out (1-4)
   • (8) Balanced Analog Audio In
   • Metadata Out/LTC In/Out RS-485
   • (2) SDI Out

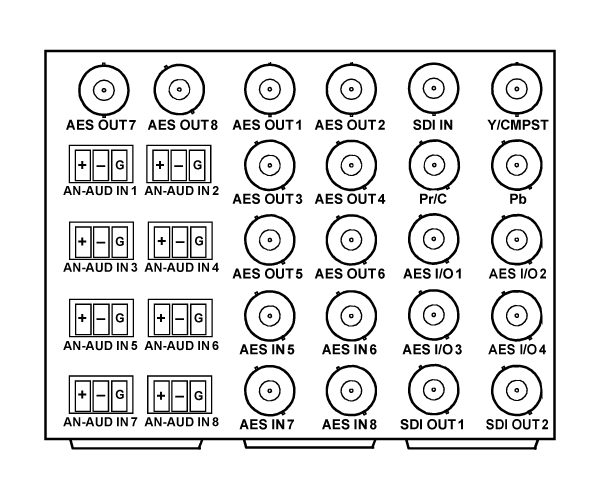

RM20-9066-G

   • SDI In
   • Component/CVBS Analog Video In BNCs
   • (4) AES In/Out (1-4)
   • (8) AES Out (1-8)
   • (4) AES In (5-8)
   • (8) Balanced Analog Audio In
   • (2) SDI Out
   (All coaxial connectors BNC)

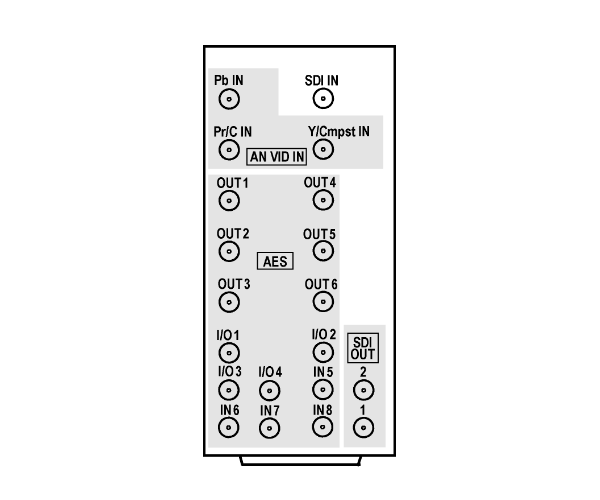

RM20-9066-E-DIN
RM20-9066-E-HDBNC

   • SDI In
   • Component/CVBS Analog Video In
   • (4) AES In/Out (1-4)
   • (6) AES Out (1-6)
   • (4) AES In (5-8)
   • (2) SDI Out
   (All coaxial connectors DIN1.0/2.3 or HD-BNC)

Ordering Information

9066 Up-Converter with Analog/SDI Input, Frame Sync, and Audio Embed/De-Embed
RM20-9066-A 20-Slot Frame Rear I/O Module (Standard Width) Analog and Digital Video Input BNCs, 4 AES In/Out BNCs, and 2 SDI Output BNCs
RM20-9066-B 20-Slot Frame Rear I/O Module (Standard Width) Analog and Digital Video Input BNCs, 4 Analog Audio Inputs, and 2 SDI Output BNCs
RM20-9066-C 20-Slot Frame Rear I/O Module (Double Width) Analog and Digital Video Input BNCs, 2 AES In BNCs, 4 AES In/Out BNCs, 8 Analog Audio Inputs, and 2 SDI Output BNCs
RM20-9066-D 20-Slot Frame Rear I/O Module (Double Width) Digital Video Input BNC, 4 AES In BNCs, 4 AES In/Out BNCs, 8 AES Out BNCs, and 2 SDI Output BNCs
RM20-9066-E 20-Slot Frame Rear I/O Module (Double Width) Analog and Digital Video Input BNCs, 4 AES In BNCs, 4 AES In/Out BNCs, 6 AES Out BNCs, and 2 SDI Output BNCs
RM20-9066-F 20-Slot Frame Rear I/O Module (Double Width) Analog and Digital Video Input BNCs, 4 AES In/Out BNCs, 8 Analog Audio In, RS-485 LTC / Metadata I/O Port, and 2 SDI Output BNCs
RM20-9066-G 20-Slot Frame Rear I/O Module (Triple Width) Analog and Digital Video Input BNCs, 8 AES In BNCs, 8 AES Out BNCs, 8 Analog Audio In, and 2 SDI Output BNCs
RM20-9066-E-DIN 20-Slot Frame Rear I/O Module (Standard Width, High-Density) Analog and Digital Video Input, 4 AES In, 4 AES In/Out, 6 AES Out, and 2 SDI Output (all connectors DIN1.0/2.3)
RM20-9066-E-HDBNC 20-Slot Frame Rear I/O Module (Standard Width, High-Density) Analog and Digital Video Input, 4 AES In, 4 AES In/Out, 6 AES Out, and 2 SDI Output (all connectors HDBNC)
