9381 HD/SD-SDI Timecode Inserter

Tabs

Overview

(This product is discontinued. Please see 9950-EMDE-ANC for its replacement. When licensed with option +LTC, 9950-EMDE-ANC provides same functions as 9381.)

The 9381 provides centralized timecode support, allowing conversion and insertion of VITC waveform, ATC_VITC, and ATC_LTC timecode on the SDI output. Timecode can be extracted from the SDI input, analog video input, or embedded audio LTC sources and applied to the SDI output as waveform or ATC-based timecode as applicable. The card also provides embedded audio routing and controls, and full video proc control with user memory.

9381 Options

• Audio Mixing (+AMx)
• Linear Acoustic Loudness Processing (+LP)
• Loudness Metering (+LM)
• Linear Acoustic Upmixing (+UM)

Features

HD/SD-SDI inputs
Video proc controls
AFD code insertion
VITC waveform-to-HD SDI ATC timecode insertion, including audio/RS-485 LTC embedding to VBI
16 user presets
Remote control/monitoring via Dashboard ™ software or OGCP-9000 remote control panels
LTC In/Out
Five year warranty

Options

Option

COMPASS CARD OPTIONS OVERVIEW

Audio Mixing (+AMx)

Linear Acoustic Loudness Processing (+LP51, +LP20, +2LP20)

Loudness Metering (+LM)

Linear Acoustic Upmixing (+UM)

Diagrams

Specifications

Electrical
Power: 11 watts

Analog Video Input
SD Standard: Composite
Impedance: 75 Ω

Processing Delay
Total Delay: 3.2 μ

Timecode Processing
Formats Inserted: Analog VITC, SDI VITC, SDI ATC LTC, SDI ATC VITC

HD/SD-SDI Output
Number of Outputs: 4 processed, 4 reclocked
Standard: SMPTE 292 and 259M
Signal Level: 800 mV nominal
Return Loss: >15 dB at 5 MHz - 270 MHz
>12 dB at 270 MHz - 1.485 GHz
Jitter: HD: < 0.15 UI
SD: < 0.10 UI
Embedded Audio: 16-Ch SD/HD

Rear Module Options

Rear Modules

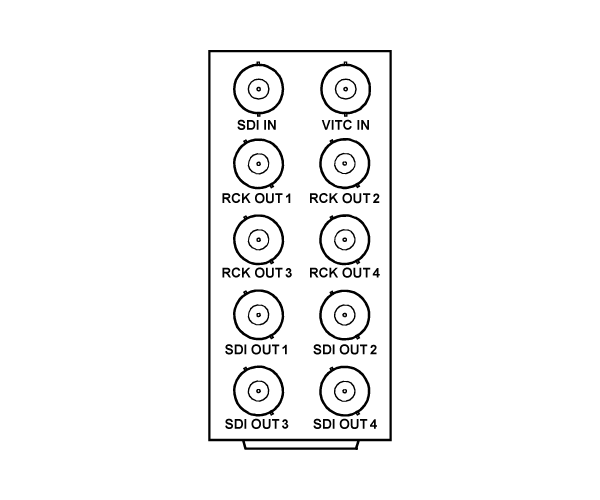

RM20-9381-A

   • SDI In
   • CVBS Analog Video In (VITC waveform IN)
   • (4) Reclocked Input SDI Out
   • (4) Processed SDI Out
   (All coaxial connectors BNC)

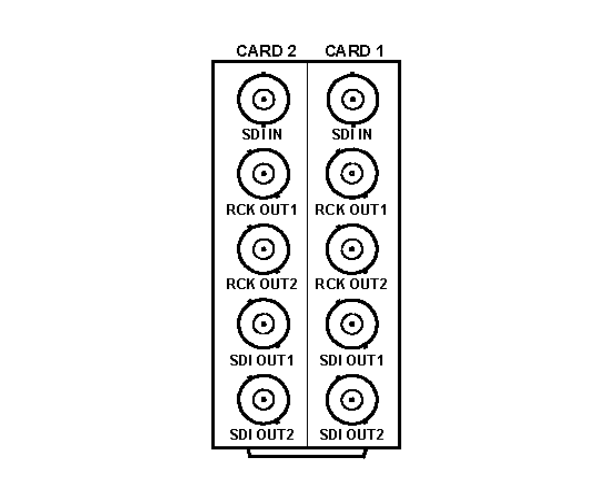

RM20-9381-A/S

   (Dual-card (split) rear module; connections are per card)
   • SDI In
   • (2) Reclocked Input SDI Out
   • (2) Processed SDI Out
   (All coaxial connectors BNC)

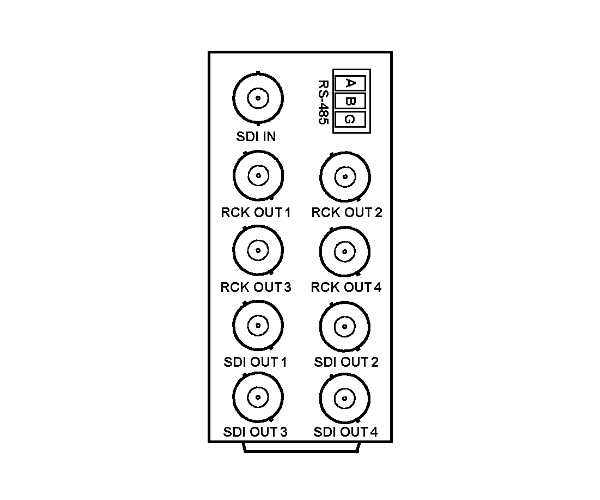

RM20-9381-B

   • SDI In
   • RS-485 LTC In/Out
   • (4) Reclocked Input SDI Out
   • (4) Processed SDI Out
   (All coaxial connectors BNC)

Ordering Information

9381 HD/SD-SDI Metadata/Timecode Inserter
RM20-9381-A 20-Slot Frame Rear I/O Module (Standard Width) HD/SD-SDI Input, 4 HD/SD-SDI Reclocked Outputs, 4 HD/SD-SDI Processed Outputs
RM20-9381-A/S 20-Slot Frame Rear I/O Module (Split; supports 2 cards) HD/SD-SDI Input, 2 HD/SD-SDI Reclocked Outputs, 2 HD/SD-SDI Processed Outputs (connections are per card)
RM20-9381-B 20-Slot Frame Rear I/O Module (Standard Width) HD/SD-SDI Input, 4 HD/SD-SDI Reclocked Outputs, 4 HD/SD-SDI Processed Outputs, RS-485 LTC I/O Port
