9391 3G/HD/SD-SDI Timecode Burn-In Inserter

Tabs

Overview

(This product is discontinued. Please see 9922-FS for its replacement. When licensed with option +LTC, 9922-FS provides same functions as 9391.)

The 9391 3G/HD/SD-SDI Timecode Burn-In Inserter allows SMPTE embedded or RS-485 LTC to be burned onto SDI video. The card can burn timecode and up to 16 characters of static text onto program video. A failover/manual select function provides for a user-selectable flat-field to replace program video either as a manual selection or upon loss of input video. The generated flat field can be timed to input video, or to a frame reference signal. Timecode burn-in and text can be sized and positioned anywhere in the active video area using easy-to-use positioning controls.

The 9391 also includes a 2x4 SDI output crosspoint, with processed or reclocked input video routable to up to 4 SDI outputs.

Features

Economical, single-card solution for timecode burning
Full timecode support – burn-in timecode from selected SMPTE embedded formats or RS-485 LTC. Free-run (self generated) timecode can be set for count-up or count-down with wrap or halt at zero count.
Easy to configure manually invoked or automatic failover flat field generation. Also provides identification text burn-in.
3G/HD/SD-SDI compatible. Generated flat field can match input format, or be set to provide any of several output formats regardless of input video format.
Convenient built-in 2x4 SDI output crosspoint
DashBoard™ and OGCP-9000 remote control simplifies setup and operation
Five year warranty

Diagrams

LTC Timecode Burn-In and Static ID Example

Specifications

Power
< 25 Watts

Timecode Insertion
Uses SMPTE timecode from input SDI or RS-485 LTC source, with free-run failover in absence of selected format. Free-run start time can be user configured. Burn-in enable/disable user controls. Configurable for burn-in string of seconds, seconds:fields, seconds:frames:fields. User controls for text size and H/V position.

Flat Field Insertion
Enable/disable manual user controls, with selectable failover upon loss of input video. Flat-field output format is user selectable. Flat-field raster color selectable from nine colors.

Identification Text Insertion
Enable/disable manual user controls. Up to 16 ASCII character entry field. User controls for text size and H/V position.

Video Input/Output
SDI inputs: (1) 75Ω BNC
SDI outputs: (4) 75Ω BNC via 2x4 crosspoint
Formats (pass-thru and burn-in/flat-field):
SD: 486i59.94, 576i50
HD: 1080i59.94, 1080i50, 1080p24, 1080p23.98, 1080psf24, 1080psf23.98
720p59.94, 720p50, 720p24, 720p23.98
3G: 1080p59.94, 1080p50
Cable Length: 3G/HD/SD: 120/180/320 m (Belden 1694A)
Return Loss: >15 dB up to 1.485 GHz
>10 dB up to 2.970 GHz
Alignment Jitter: 3G/HD/SD: < 0.3/0.2/0.2 UI
Timing Jitter: 3G/HD/SD: < 2.0/1.0/0.2 UI

LTC Input
3-terminal Phoenix connector, supporting RS-485 LTC input (– (A), +(B), GND)

Frame Reference Input
Signal: SMPTE 170M/318M “Black Burst”
SMPTE 274M/296M “Tri-Level”
Return Loss: >35 dB up to 5.75 MHz

Processing Latency
Less than 25 samples

Rear Module Options

Rear Modules

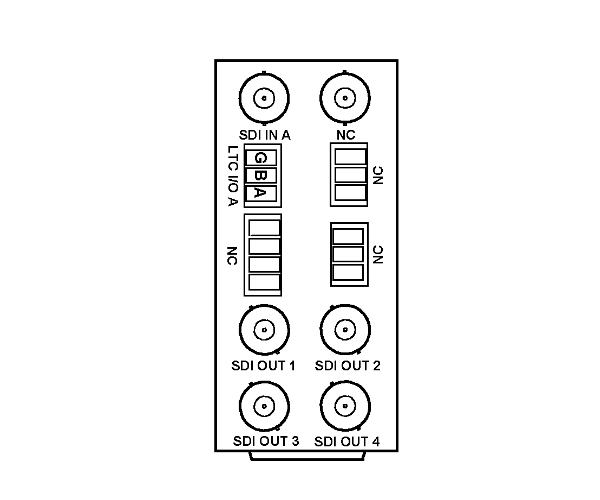

RM20-9391-D

   • SDI In
   • RS-485 LTC In/Out
   • (4) SDI Out (crosspoint selectable as
      processed SDI or input reclocked out)
   (All coaxial connectors BNC)

Ordering Information

9391 3G/HD/SD-SDI Timecode Burn-In Inserter
RM20-9391-D 20-Slot Frame Rear I/O Module (Standard Width) 3G/HD/SD-SDI Input, RS-485 LTC Input/Output, (4) 3G/HD/SD-SDI Outputs (selectable as processed or RCK out)
