9213-2OE Dual 3G/HD/SD-SDI Fiber Receiver (OE)

Tabs

Overview

(This product is discontinued. Please see 9410DA-2OE for its replacement.) The 9213-2OE is a dual 3G/HD/SD-SDI fiber receiver (OE) card. The card converts two fiber optic signals to independent SDI output signals. The 9213-2EO detects the incoming fiber signal and outputs the up to six SDI signals over six BNC connectors. Card-edge LED indicators identify the presence of incoming video and the identified signal data rate.

The 9213-2OE is fully hot swappable with all active components on the front removable module. No active components are installed on the rear module, greatly reducing down time and eliminating any need for users to access the back of the rack frame. Up to 20 cards can be used in the 20-Slot Frame to acheive a density of 40 optical to electrical conversions in 2RU.

Features

Supports single-mode fiber
Reclocking at 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, and 2.970 Gbps
LC/UPC optical connection
Automatic detection of incoming data rate
LED indicators for input signal presence and input data rate
Remote monitoring via DashBoard™ software or OGCP-9000 remote control panel
Five year warranty

Diagrams

Specifications

Electrical
Power: 5 watts

Optical Input
Number of Inputs: 2
Standard: 143-360 Mbps - SMPTE 259M
1.485 Gbps - SMPTE 292
3 Gbps - SMPTE 424M
Operating Wavelength Range:
1210 nm to 1600 nm
Connector Type: Single Mode, LC/UPC

SDI Outputs
Number of Outputs: 6 (max)
Return Loss: >15 dB to 1.485 GHz
>10 dB from 1.485 GHz to 2.97 GHz
Connector Type: BNC

Rear Module Options

Rear Modules

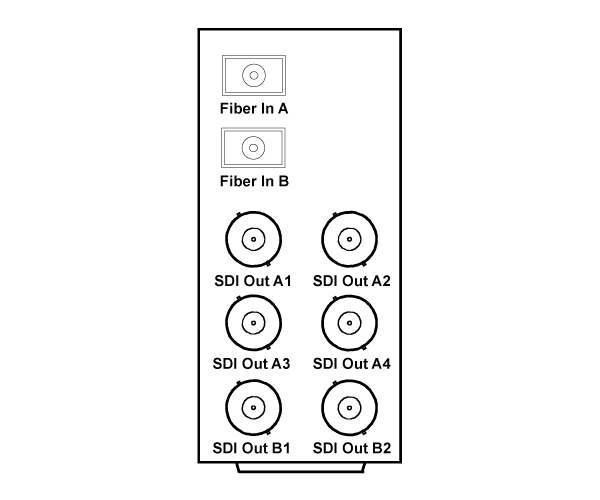

RM20-9213-B

   • (2) Optical In (Path A and B; LC connectors)
   • (4) Reclocked Input A SDI Out
   • (2) Reclocked Input B SDI Out
   (All coaxial connectors BNC)

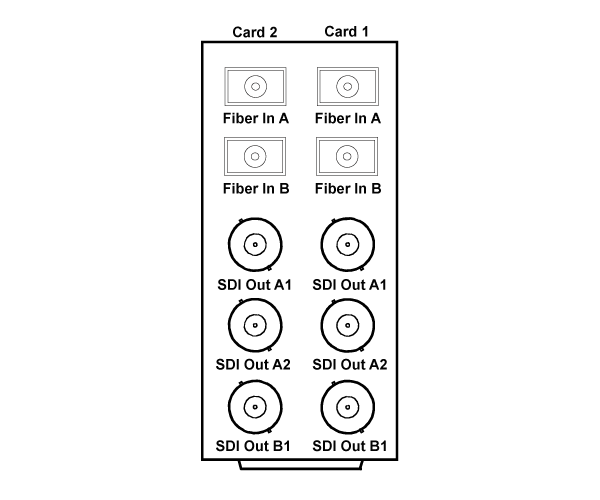

RM20-9213-B/S

   (Dual-card (split) rear module; connections are per card)
   • (2) Optical In (Path A and B; LC connectors)
   • (2) Reclocked Input A SDI Out
   • (1) Reclocked Input B SDI Out
   (All coaxial connectors BNC)

Ordering Information

9213-2OE Dual 3G/HD/SD Fiber Receiver (OE)
RM20-9213-B 20 Slot Frame Rear I/O Module (Standard Width) 2 Optical LC Inputs (A, B), 4 Reclocked Path A Output BNCs, 2 Reclocked Path B Output BNCs
RM20-9213-B/S 20 Slot Frame Rear I/O Module (Split; supports 2 cards) 2 Optical LC Inputs (A, B), 2 Reclocked Path A Output BNCs, 1 Reclocked Path B Output BNC (connections are per card)
