9001 3G/HD/SD Reclocking Distribution Amplifier

  • Details
  • Click to view

The 9001 is a multi-rate SDI and ASI distribution amplifier capable of equalizing and reclocking 3G, HD, and SD signals. All outputs are non-inverted for reclocking of ASI signals.

Rear modules are sold separately as RM-9001-X for the 10-slot 8310 openGear™ frame, and RM20-9001-X for the 20-slot 8321 openGear™ frame. Also available is the RM20-9001-A/S high density split rear module (5 BNCs per module) for the 20-slot frame.

Standard Features

Equalize up to 150m of Belden 1694A cable at 1.485 Gbit Automatic rate detection for all popular data rates
ASI reclocking on all outputs Remote control/monitoring via Dashboard ™ software or OGCP-9000 remote control panels
Five year warranty

Specifications

Input
Number of Inputs: 1
Formats supported:
3Gbps - SMPTE 424M
1.485Gbps - SMPTE 292
143-360 Mbps - SMPTE 259M
Cable lengths w/ Belden 1694A
3Gbps - 80m
1.485Gbps - 120m
143-360 Mbps - 300m
Output
Number of outputs: 9 SDI-BNC (all 9 are ASI compatible)
Return loss > 15dB (for SMPTE 259M)
Power
3 watts
Size
12.9" x 3" (330mm x 76mm)
For use in openGear™ frames

Diagrams

Click to view diagram

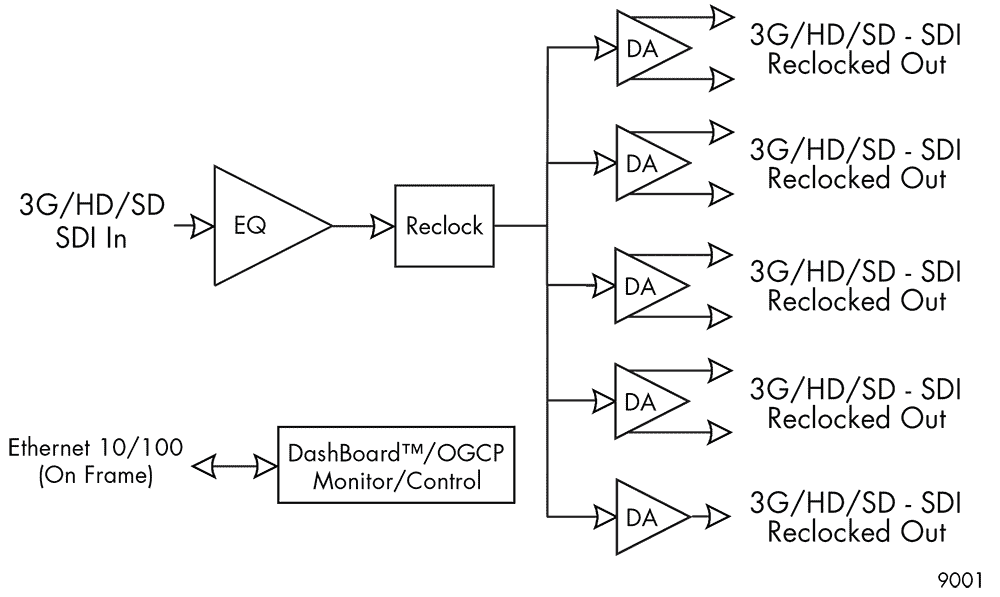

Block Diagram
Block Diagram

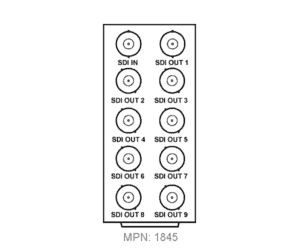

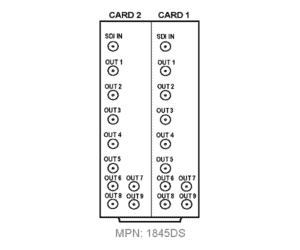

RM20-9001-A
RM20-9001-A

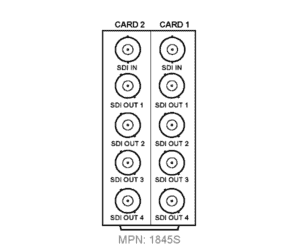

RM20-9001-A/S
RM20-9001-A/S

Ordering Information

  • 9001 3G/HD/SD Reclocking Distribution Amplifier
  • RM20-9001-A 8321 Frame Rear I/O Module (Standard Width) HD/SD-SDI Input BNC, 9 Reclocked HD/SD-SDI Output BNCs
  • RM20-9001-A/S 8321 Frame Rear I/O Module (Split) HD/SD-SDI Input BNC, 4 Reclocked HD/SD-SDI Output BNCs (Not available for 8310 openGear™ frame)

Rear modules also available for 8310 10-slot openGear™ frame (RM-XXXX-X), except where noted.
