9003 Dual 3G/HD/SD Reclocking Distribution Amplifier

  • Details
  • Click to view

The 9003 is a two-channel, multi-rate SDI distribution amplifier capable of equalizing and reclocking 3G, HD, and SD signals.  The 9003 can be set up as either a single-channel 1:8, dual-channel 1:4, or 1:8 with failsafe using DashBoard™ remote control software or card-edge switches. In failsafe mode, the card automatically switches to the secondary input if the primary input is lost.

Standard Features

Dual or single input with user-configurable modes Automatic rate detection/display for all popular data rates
Equalize up to 160m of Belden 1694A cable at 1.485 Gbit Remote monitoring via DashBoard™ software or OGCP-9000 remote control panel
Failsafe mode automatically switches to secondary input on primary input loss Five year warranty

Specifications

Electrical
Power: 3 watts 		3G/HD/SD-SDI Inputs
Number of Inputs: 2
Standard: SMPTE 424M, 292M, and 259M
Return Loss: >15 dB at 5 MHz - 1.485 GHz
>10 dB at 1.5 GHz to 3 GHz
Cable Length Equalized (w/Belden 1694A)
3 Gbps: 100m
1.485 Gbps: 160m
143-360 Mbps: 350m 		3G/HD/SD-SDI Output
Number of outputs: 8 (4 ASI Compatible)
Standard: SMPTE 424M, 292M, and 259M
Signal Level: 800 mV nominal
Return Loss: >15 dB at 5 MHz - 1.485 GHz
>10 dB at 1.5 GHz to 3 GHz
Jitter (wideband): HD: < 0.2 UI

Diagrams

Click to view diagram

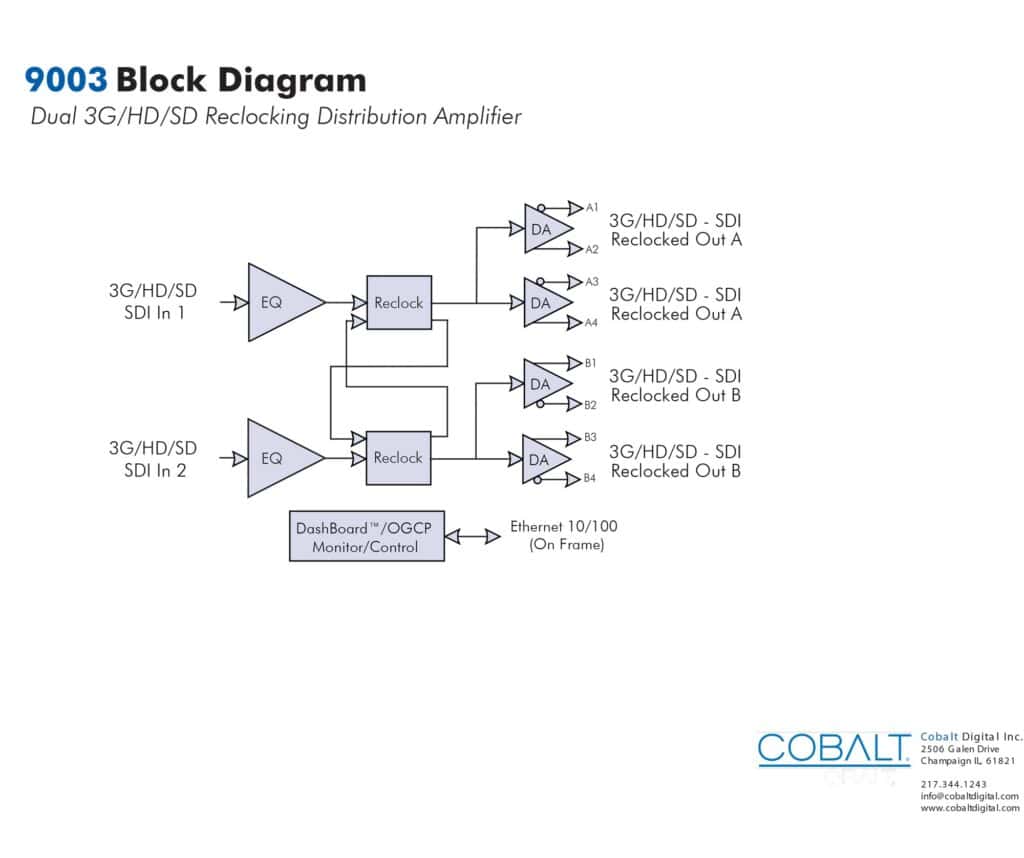

Block Diagram
Block Diagram

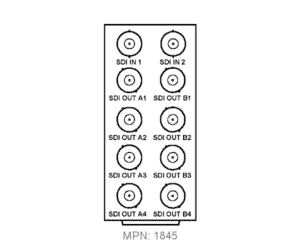

 		RM20-9003-A
RM20-9003-A
 		RM20-9003-B/S
RM20-9003-B/S

Ordering Information

  • 9003 Dual 3G/HD/SD Reclocking Distribution Amplifier, 2 X 4 or 1 X 8 Configurations, Failover Mode
  • RM20-9003-A 8321 Frame Rear I/O Module (Standard Width) 2 HD/SD-SDI Inputs, 8 Reclocked HD/SD-SDI Outputs
  • RM20-9003-B/S-HDBNC 8321 Frame Rear I/O Module (Split) Dual HD/SD-SDI Inputs (HDBNC), 1x4 / 1x4 HD/SD-SDI Outputs (HDBNC) (High Density)
  • RM20-9003-B/S-DIN 8321 Frame Rear I/O Module (Split) Dual HD/SD-SDI Inputs (DIN 1.0/2.3), 1x4 / 1x4 HD/SD-SDI Outputs (DIN 1.0/2.3) (High Density)
