9262 Stereo AES to Analog Audio D/A Converter
- Details
- Click to view
The 9262 provides digital to analog audio conversion along with AES/EBU signal distribution. It supports audio sampling frequencies from 30 kHz to 192 kHz, and converts the incoming AES/EBU digital audio signal to a stereo balanced analog audio signal pair using 24-bit conversion. Cable equalization and reclocking techniques enable the 9262 to reliably recover the incoming digital audio signal.

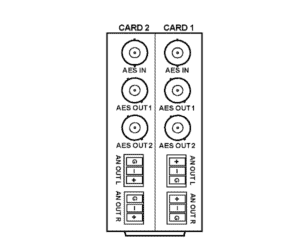

Rear modules are sold separately as RM-9262-X for the 10-slot 8310 openGear™ frame, and RM20-9262-X for the 20-slot 8321 openGear™ frame.
Product Downloads
Standard Features
| 24-bit audio conversion | Supports audio sampling frequencies from 30kHz to 192 kHz |
| Cable equalization and data reclocking on incoming AES/EBU signal | Remote control/monitoring via DashBoard™ software |
| Five year warranty |
Specifications
|
Resolution 24 Bit |
Input Level 0.27Vpp |
|
Input Impedance 75 Ω, 110 Ω, HiZ |
Sampling Frequency Range 30 kHz to 192 kHz |
|
Output Level 1 Vpp nominal |
Output Impedance 75 Ω unbalanced |
|
Output Jitter Less than 5 ns |
Power +12 V, 4 watts |
|
Size 12.9" x 3" (330mm x 76 mm) For use in openGear™ frames |
Analog Maximum Output Level: +24 dBu Frequency Response: +/0.2 dB, 20 Hz to 20 kHz Noise (unweighted): 84 dBu, 20 Hz to 20 kHz THD+N: <0.01% Stereo Separation: 100 dB, 20 Hz to 20 kHz Output Impedance: 60 Ω Balanced |
Diagrams

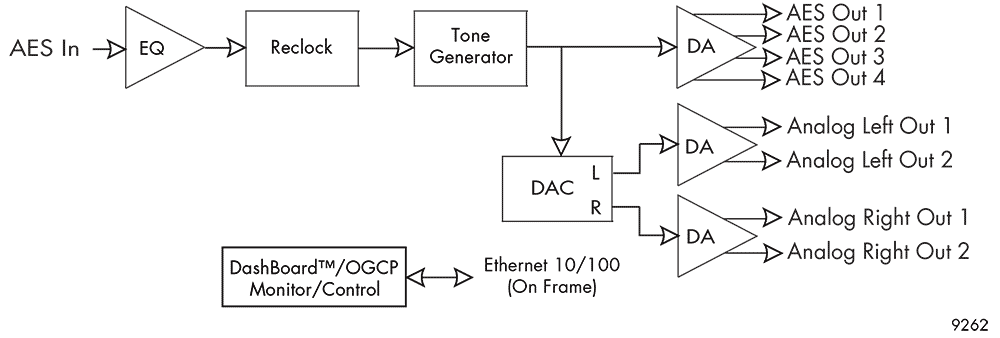

Block Diagram
|

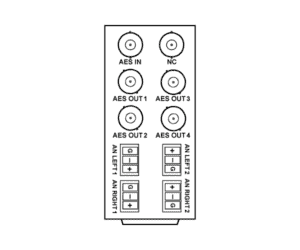

RM20-9262-B
|
