9275 HD/SD-SDI Analog Audio De-Embedder

Tabs

Overview

(This product is discontinued. Please see 9933-EMDE-ADDA for its replacement.) The 9275-8C accepts an HD/SD-SDI input and provides up to eight de-embedded balanced analog output channels. The 9275-4C provides up to four de-embedded balanced analog output channels. The cards offer full 24-bit audio D-to-A, processing/routing control (card edge and remote control) for individual channel gain with ganging, delay (up to 1 second), phase invert, as well as channel summing. User presets allow fast and easy recall of custom settings.

Features

Conforms to SMPTE 259M and SMPTE 292M
Automatic rate detection for all popular data rates
LED indicators for input signal presence and input data rate
Audio channel mapping, phase inversion, and level control
Programmable video output on SDI input loss
Silence output on loss of audio input
Programmable silence detection and timeout thresholds
Remote control/monitoring via DashBoard software or OGCP-9000 remote control panel
Five year warranty

Diagrams

Specifications

Electrical
Power (4-Ch): 8 Watts
Power (8-Ch): 9 Watts

HD/SD-SDI Input
Number of Inputs: 1
Standard: SMPTE 292 and 259M-C
Return Loss: >15 dB at 1.5 GHz

HD/SD-SDI Output
Number of Outputs: 1 processed

Analog Audio Output
Analog Audio Outputs:
9275-4C: 4-Ch balanced outputs
9275-8C: 8-Ch balanced outputs
Maximum Output Level: +27 dBu
Frequency Response: ±0.07 dB
(22 Hz to 20 kHz @ Fs=48 kHz)
Signal to Noise Ratio: -90 dB
THD: > -76 dB
Crosstalk: <-80 dB (20 Hz to 20 kHz)

Rear Module Options

Rear Modules

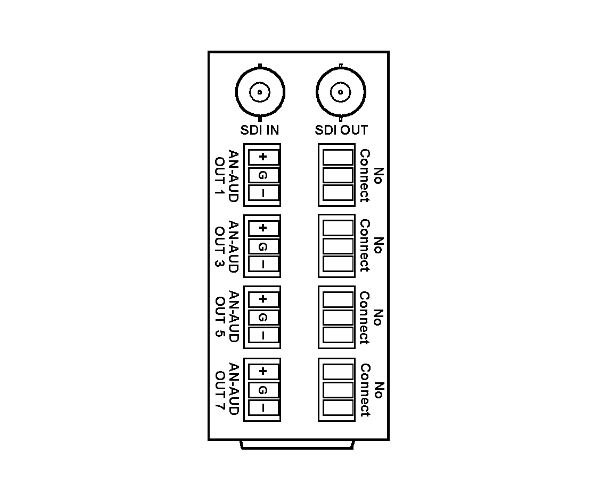

RM-9275-4C-B

   • SDI In
   • SDI Out
   • (4) Balanced Analog Audio Out
   (All coaxial connectors BNC. This rear module is used
   with card model 9275-4C)

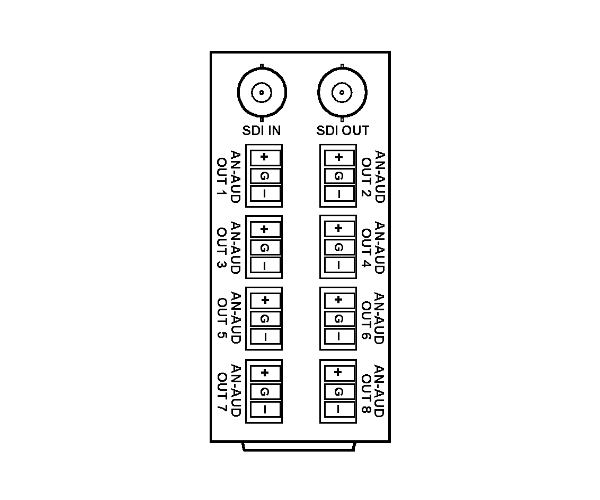

RM-9275-8C-B

   • SDI In
   • SDI Out
   • (8) Balanced Analog Audio Out
   (All coaxial connectors BNC. This rear module is used
   with card model 9275-8C)

Ordering Information

9275-4C HD/SD-SDI 4 Channel Audio De-Embedder with Analog Audio
9275-8C HD/SD-SDI 8 Channel Audio De-Embedder with Analog Audio
RM20-9275-4C-B 20 Slot Frame Rear I/O Module (Standard Width) 1 HD/SD-SDI Input BNC, 1 Loop Output BNC, 4 Analog Audio Outputs
RM20-9275-8C-B 20 Slot Frame Rear I/O Module (Standard Width) 1 HD/SD-SDI Input BNC, 1 Loop Output BNC, 8 Analog Audio Outputs
