OGCP-9000 Remote Control Panel for Fusion3G and COMPASS Cards

  • Details
  • Click to view

The OGCP-9000 is an award-winning remote control panel for Fusion3G® 9900 series and COMPASS® 9000 series signal processing cards.

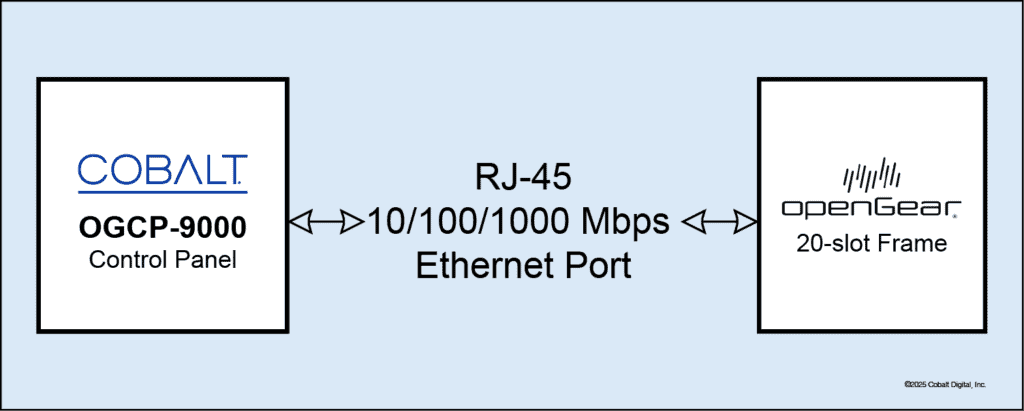

Communication with the openGear™ frame occurs over an optimized high-speed openGear Ethernet control protocol, allowing lightning-fast access. The OGCP-9000 offers instantaneous, real-time adjustments, so operators can manipulate on-air signals with confidence and precision.

An easy to use keypad enables intuitive access with minimal submenus. A given card uses only one level of submenus to access all of its functions.

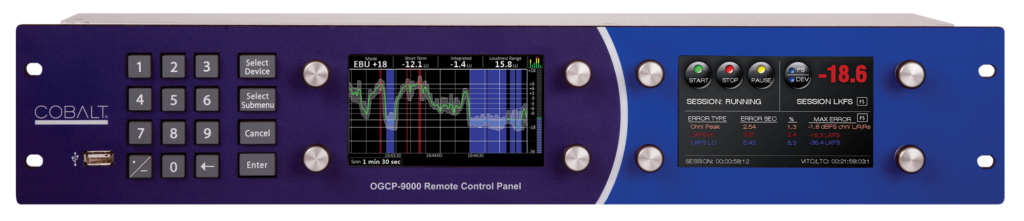

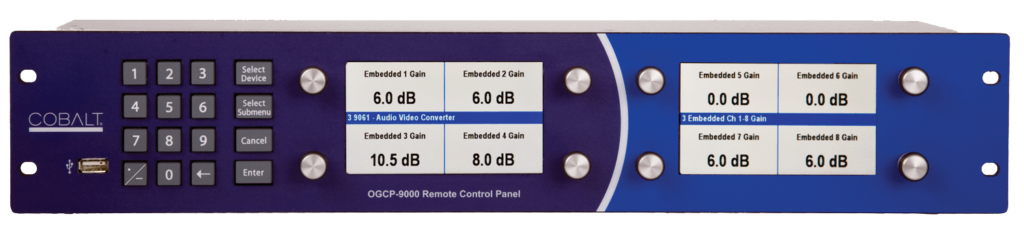

The control panel is optimized for both bright and low light environments. Two large format, super-bright, wide-angle color LCD screens show sharp and clear text; operators can select either a white or black background. Other features include a fully backlit keypad and user-adjustable LED back light.

Station engineers can configure the panel to restrict availability of specific cards and parameters for operation. Configuration is done through a simple web interface, where configurations can be exported, backed up, and re-imported easily.

The OGCP-9000 works seamlessly with DashBoard™ control software. Any changes made with either system are instantly reflected on the other.

Standard Features

Real time adjustments, excellent for on-air manipulation Simultaneous display and update of 8 parameters
No deep submenus, all parameters can be accessed quickly Seamless integration with DashBoard™ control software
10/100 Mbps Ethernet TCP/IP connection Optimized for bright and low light environments
Completely configurable with password protected web interface Save and restore panel configuration with web interface
Rugged 2U rack mounted chassis Five year warranty

Specifications

Power
9 watts
AC Power
IEC C14 Chassis Plug accepting 90-264 VAC @ 47-63 Hz
DC Power
12 VDC 1.0 A
Ethernet
10/100 Mbps with Auto-MDIX on RJ45 socket with DC isolation
LCD
500 cd/m2 (nits) of brightness, 300:1 contrast ratio, 120 degree viewing angle
Size
Standard 2RU; 5" depth

Ordering Information
