9231 Analog Video Distribution Amplifier with EQ

Tabs

Overview

(This product is being discontinued and not recommended for new designs. Please see 9910DA-AV or 9910DA-AV-EQ for its replacement.) The 9231 is an analog video distribution amplifier with a differential input designed for broadcast use. The card provides 1x8 distribution with one differential analog input and eight 75-Ω BNC analog outputs. The 9231 can be accessed through DashBoard™ for status monitoring.

Features

Differential composite analog input with 75Ω or Hi-Z looping input selection
User adjustable gain
Variable cable EQ up to 984 ft (300m)
User-selectable input clamping
Remote monitoring via DashBoard™ software or OGCP-9000 remote control panel
Five year warranty

Diagrams

Specifications

Electrical
Power: 2 watts

Analog Audio Input
Number of inputs: 1
Impedance: 75 Ω
Level: 1 Vp-p, nominal
Return Loss: 46 dB at 3.58 MHz

Performance
Freq. Response: >0.05 dB at 3.58 MHz
Differential Gain: >0.15% at 3.58 MHz
Differential Phase: >0.15° at 3.58 MHz
SN: >60 dB, 5 MHz BW

Analog Video Output
Number of Outputs: 8
Impedance: 75 Ω
Level: 1 Vp-p, nominal

Rear Module Options

Rear Modules

Some Rear I/O Modules shown below may also be used for other Cobalt card models. This allows you to re-use rear modules from one card model to another. The Manufacturing Part Number (MPN) shown in the images below is the common code that is used to identify multi-use rear modules. Cross-compatibility can be checked using this number and About Cobalt Rear I/O Modules and Rear Module Cross-Reference at Reference and Help Documents.

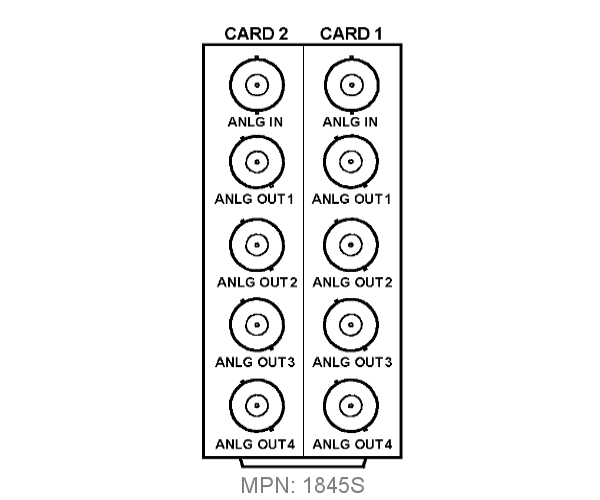

RM20-9231-A/S

   (Dual-card (split) rear module; connections are per card)
   • CVBS Analog Video In
   • (4) CVBS DA Out (1-4)
   (All coaxial connectors BNC)

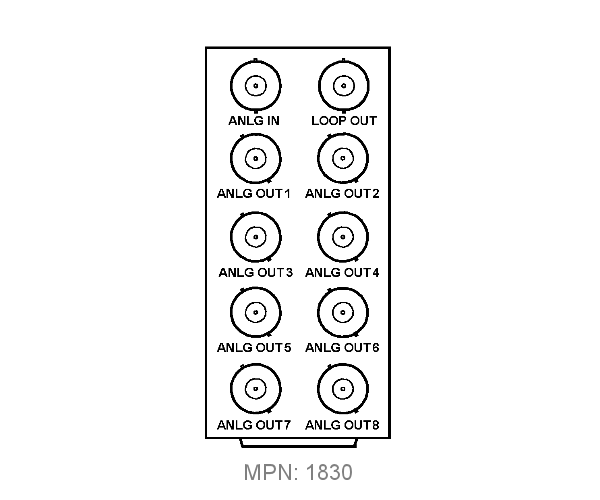

RM20-9231-B

   • CVBS Analog Video In
   • (1) CVBS Input Loop Out
   • (8) CVBS DA Out (1-8)
   (All coaxial connectors BNC)

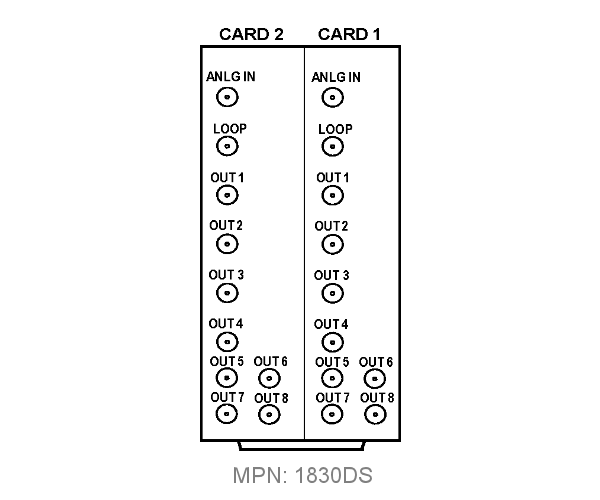

RM20-9231-B/S

   (Dual-card (split) rear module; connections are per card)
   • CVBS Analog Video In
   • (1) CVBS Input Loop Out
   • (8) CVBS DA Out (1-8)
   (All coaxial connectors DIN1.0/2.3 or HD-BNC)

Ordering Information

9231 1 X 8 Analog Video Distribution Amplifier with Differential Input, Clamping and Cable EQ
RM20-9231-A/S 20 Slot Frame Rear I/O Module (Split; supports 2 cards) 1 Video Input BNC, 4 Video Output BNCs (connections are per card)
RM20-9231-B 20 Slot Frame Rear I/O Module (Standard Width) 1 Video Input BNC, 1 Looped Video Output BNC, 8 Video Output BNCs
RM20-9231-B/S-HDBNC 20 Slot Frame Rear I/O Module (Split; supports 2 cards) 1 Video Input, 1 Looped Video Output, 8 Video Outputs (connections are per card; all connectors are HD-BNC)
RM20-9231-B/S-DIN 20 Slot Frame Rear I/O Module (Split; supports 2 cards) 1 Video Input, 1 Looped Video Output, 8 Video Outputs (connections are per card; all connectors are DIN 1.0/2.3)
