9901-XC 3G/HD/SD Cross-Converter/Frame Sync/Audio Embed/De-Embed with Full-Feature Proc – I/O Support

Tabs

Overview

(This product is discontinued. Please see 9902-UDX for its replacement. Where audio processing options such as loudness processing, upmixing, and/or Dolby encode/decode are also required, please see 9902-UDX-DSP).

The 3G/HD/SD-SDI Fusion3G® 9901-XC offers cross conversions within 3G/HD formats (such as between interlaced and progressive formats), and between broadcast and film/psf rates. (All input formats can be passed unconverted if desired.) The 9901-XC also includes frame sync, advanced audio and ancillary data support, plus many other powerful features. Full audio support includes per-channel audio delay. Remote control is quick and easy with the free DashBoard™ remote control software or the Cobalt OGCP-9000 remote control panels.

You can select from options to add (as inputs and/or outputs) fiber, analog video, AES, and analog audio. This level of integration reduces module count and simplifies the signal chain, as well as providing flexibility for ever-changing requirements. Options also include wings insertion, general purpose keying, color correction, Dolby® E/AC-3 encoding, ITU/ATSC/EBU compliant loudness metering, and Linear Acoustic® upmixing and loudness processing. The 9901-XC provides a more economical solution where full conversion capability is not required. If later desired, the 9901-XC can be field upgraded to full 9901-UDX (up/down/cross convert) functionality using a firmware upgrade without removing the card from its frame.

Alternate Base Models

9901-XC-HD HD/SD Only model. Provides cross conversions within HD formats only. All other features and specifications remain the same.

Features

Economical choice for cross-conversion with full Fusion3G® audio and video feature set support
Full 3G/HD/SD-SDI support on BNC coax
Preset standard and user-definable ARC with configurable pan, tilt, & crop controls
Per-channel audio delay with glitchless delay adjustment
Frame sync with reference failover using dual reference inputs on frame
Full SMPTE timecode support with translation between formats. Timecode sources selectable from SDI and analog video inputs, reference, and internally generated
Advanced audio processing allows routing, gain, delay, and flexible mixing as standard features
Centralized GUI remote control using DashBoard™ software and Cobalt OGCP-9000 remote control panels — custom settings saved as presets can be recalled manually, or with GPI or events-based triggering
Five year warranty

Options

Option

Our Fusion3G® cards support the broadest array of options of any cards in our line. Using these powerful options is like having two or more cards in one card. Adding options allows adding processing versatility without the expense and space usage of extra, added cards. Many Fusion3G® options can be field-installed via an easy software feature upload, allowing select options to be installed as needed on already-installed cards. Software option upgrades typically take less than a minute to upload and require no removal of the card from its frame (these options of course can be ordered for new cards with the option already installed).

All of the Fusion3G® options described here can be installed on any Fusion3G® card (unless noted otherwise).

+AES
16-Channel Audio Embedding/De-embedding Option
Provides eight (total) AES pair BNC connections that can be GUI-configured as inputs or outputs. Independent SRC for all AES inputs, with auto and manual bypass for non-PCM data.

Installation: Licensable feature ordered on new card or can be field installed with feature upload. Requires appropriate compatible rear I/O module(s).

+AES16
8-Port AES Output Expansion Option
Provides the 16-channel embed/de-embed of option +AES (see above) as well as eight added AES output ports to provide a total complement of AES I/O 1 thru AES I/O 8 and added ports AES OUT 1 thru AES OUT 8. Allows 16 channels of AES embedding and 16 channels of AES de-embedding simultaneously.

Installation: Hardware feature available only on new card. Requires appropriate compatible rear I/O module(s)

+ANA & +ANV
Analog Audio/Video I/O Options
Assorted options provide balanced analog audio and component/CVBS video input/ouputs.

+ANAIO – Analog audio I/O
+ANAVI – Analog audio/video inputs
+ANAVO – Analog audio/video ouputs
+ANAVIO – Analog audio/video inputs/outputs
See Analog I/O Options detail on web page for more information

Installation: Hardware feature available only on new card. Requires appropriate compatible rear I/O module(s).

+ADM
Auto Downmix Software Option
Provides automatic stereo downmix from selected alternate multi-channel sources if primary stereo channels lose signal.

Installation: Licensable feature ordered on new card or can be field-installed with feature upload.

+AFO
Auto Failover Audio Software Option
Provides automatic failover to alternate ("secondary") channels to substitute for the primary channels in the event of audio signal loss.

Installation: Licensable feature ordered on new card or can be field-installed with feature upload.

+ENCDA thru +ENCDD
Dolby® Digital™/Digital Plus™ Encoder Software Options
Provides full assortment of Dolby® Digital/Digital Plus encoding formats with multiple stream encoding – all on the same card. Uses any combination of audio sources supported by the card (including mixed, upmixed, and loudness processed signals). Encode using internal metadata selections with a full complement of encoding formats and bit rates, as well as from serial or SMPTE 2020 external metadata. Contact sales for information about multiple simultaneous encode modes.

Installation: Licensable feature ordered on new card or can be field-installed with feature upload.

+ENCEA
Dolby® E Encoder Software Option
Provides Dolby® E encoding from any combination of audio sources supported by the card (including mixed and loudness controlled signals). Full metadata support using internally generated or external metadata via SMPTE 2020 or serial. Can be added to card already equipped with ENCD option(s) above.

Installation: Licensable feature +ENCDA ordered on new card or can be field-installed with feature upload.

+LP51/LP20
Linear Acoustic® Loudness Processing Software Option
Using Linear Acoustic® AEROMAX® algorithms, performs ATSC A/85-compliant 5.1 or stereo loudness processing on any of six channels outputted by the card.

Available in the following packages:

+LP51A, +LP51B – Two independent 5.1-channel loudness processors
+LP20A, +LP20B, +LP20C, +LP20D – Four independent 2.0-channel loudness processors
+LP20A, +LP20B, +UMA,+UMB – Two 2.0-channel loudness processors; two upmixers (see +UM below)
+LP51A, +LP20A,+UMA – 5.1-channel loudness processor, aux stereo (SAP) loudness processor, one upmixer

Installation: Licensable feature ordered on new card or can be field-installed with feature upload.

+UM
Upmixer Option
Featuring Linear Acoustic® UPMAX™ technology, the 5.1 upmixer uses any stereo pair accommodated by the card and generates a six-channel 5.1 complement (L, R, C, LFE, Ls, Rs) from the stereo source, allowing legacy stereo programming to fully utilize 5.1-channel audio capabilities. Upmixing can be combined with loudness processing options as listed in +LP51/LP20 above.

Installation: Licensable feature ordered on new card or can be field-installed with feature upload.

+LM
Audio Loudness Meter Software Option
Adds Loudness Metering software which works in conjunction with the award-winning OGCP-9000 Remote Control Panel and our new WinOGCP Desktop Virtual Control Panel to provide a flexible, complete solution for ingest or on-air loudness metering, assessment, and records. Where Fusion3G card is licensed for +LP option(s), +LM option allows selection of pre-processed or post-processed loudness to be displayed. Several cards can reports loudness data to one or virtually any number of control panels.

Installation: Licensable feature ordered on new card or can be field-installed with feature upload.

+FTx & +FRx
Fiber Input/Output Options
Provides up to two fiber connections per card. Connector type is dual LC with blind-mate connectors. Cards are fully swappable.

+FRx – Single fiber receive (input)
+FTx – Single fiber transmit (output)
+FRxTx – Fiber receive (input) / fiber transmit (output)
+FRxRx– Dual fiber receive (input)
+FTxTx– Dual fiber transmit (output)

Installation: Hardware feature available only on new card. Requires appropriate compatible rear I/O module(s)

+COLOR
Color Correction Software Option
Provides independent RGB channel controls for luma, black, and gamma. Ultra-fast response time. The color correction feature is perfectly suited for use with Cobalt OGCP-9000/CC Remote Control Panel.

Installation: Licensable feature ordered on new card or can be field-installed with feature upload.

• Color Correction Synergies with Cobalt Color Correction and OGCP-9000/CC Remote Control Panel

+KEYER
Keying Option
Provides keying using independent SDI inputs for key and fill signals. A separate preview SDI output is provided for observing key results before applying to program video output. Alpha Threshold mode allows full-color key/fill using low-cost PC-based graphics host where the same signal provides a shared key/fill input.

Installation: Hardware feature available only on new card. Requires appropriate compatible rear I/O module(s).

+WINGS
Wings Insertion Software Option
Provides wings insertion using an independent SDI input provided for wings signal. On cards equipped with a scaler, allows wings insertion width to automatically track with AFD.

Installation: Licensable feature ordered on new card or can be field-installed with feature upload.

+LTC
Audio/RS-485 LTC Software Option
Allows bidirectional transfer and conversion between video timecode formats and audio/RS-485 LTC. Audio LTC can be received or sent over various card audio channels. RS-485 LTC can be received or sent via a rear module RS-485 port.

Installation: Licensable feature ordered on new card or can be field-installed with feature upload.

+3G
3G Upgrade Software Option
On card purchased as alternate HD/SD model (for example "9901-UDX-HD"), allows upgrade to full 3G/HD/SD-SDI I/O and processing.

Installation: Licensable feature can be field-installed using software feature upload.

+UDX
Up/Down/Cross Converter Upgrade Software Option
Upgrades 9901-UC, XC, DC models to full up/down/cross conversion for 3G/HD/SD formats. (Card must be base 3G-compatible model or have option +3G to perform 3G conversions.)

Installation: Licensable feature can be field-installed using software feature upload.

+2GB
Frame Buffer Expansion Option
Increases frame buffer to provide independently adjustable audio and video delay buffer capacity to over 46 seconds for SD video, 9 seconds for HD video, or 4 seconds for 3G video.

Installation: Hardware feature available only on new card.

+CGMS
CGMS Support Software Option
Provides controls for using analog video CGMS copy protect bit/indicator.

Installation: Licensable feature ordered on new card or can be field-installed with feature upload.

Diagrams

Specifications

Power
35 Watts (nominal)
The following options add power consumption as follows:
• +KEYER option: 2 Watts
• +ANA, +ANV (analog audio/video I/O) options: 15 Watts (typical)

Video Input/Output (4 In, 4 Out)
Standard:
SD: 486i59.94, 576i50
HD: 1080i59.94, 1080i50, 1080p24, 1080p23.98, 1080psf24, 1080psf23.98, 720p59.94, 720p50, 720p24, 720p23.98
3G: SMPTE 425 level A: 1080p59.94, 1080p50
Cable Length: 3G/HD/SD: 120/180/320 m (Belden 1694A)
Return Loss: >15 dB up to 1.485 GHz, >10 dB up to 2.970 GHz
Alignment Jitter: 3G/HD/SD: < 0.3/0.2/0.2 UI
Timing Jitter: 3G/HD/SD: < 2.0/1.0/0.2 UI

Frame Reference Input
Signal: SMPTE 170M/318M “Black Burst”
SMPTE 274M/296M “Tri-Level”
Return Loss: >35 dB up to 5.75 MHz

Audio/Video Delay
Conversion Latency: 1 frame
Frame Sync Min Latency: 2 lines
Video Delay: 3G/HD/SD: 0.5/1.0/5.0 sec
User Audio Delay Offset from Video:
Bulk delay control: -800 msec to +800 msec
Per-channel delay controls: -800 msec to +800 msec
Option +2GB Delay (max.) 3G/HD/SD: 4.5 sec / 9.4 sec / 47.0 sec

AES Audio Input/Output (8)
Physical Interface: BNC per AES3-id
Input Level: 0.2 to 2 Vp-p
Output Level: 1.0 Vp-p
Impedance: 75 Ω
Return Loss: >15 dB up to 6.144 MHz
Input SRC Range: 32 to 96 kHz
Input SRC Performance: >130 dB THD+N

Analog Audio Input/Output
Input Impedance: >10 kΩ
Input Clip Level: +24 dBu (eq. 0 dBFS)
Max Output Level: +24 dBu (eq. 0 dBFS)
Freq. Response: ±0.12 dB (20 Hz to 20 kHz)
SNR: 115 dB (A weighted)
THD+N: -96 dB (20 Hz to 10 kHz)
Crosstalk: -106 dB (20 Hz to 20 kHz)

Analog Video Input
ADC bit depth: 12-bit
Sampling: 54 MHz (4X over-sampling)
Freq. Response: Y/CVBS : ± 0.25 dB to 30 MHz
Pb/Pr: ± 0.25 dB to 15.0 MHz
Noise: < -60 dB to 30 MHz (unweighted)
Differential Phase: < 1.5 degree
Differential Gain: < 1

Analog Video Output
DAC bit depth: 12-bit
Freq. Response: Y/CVBS : ± 0.25 dB to 30 MHz
Pb/Pr: ± 0.25 dB to 15.0 MHz
Noise: < -60 dB to 30 MHz (unweighted)
Differential Phase: < 1.5 degree
Differential Gain: < 1 %

Fiber Input/Output
Connectors: Dual LC, Standard Polish
Fiber Type: 9/125 micron, single mode
Mating system: Blind mate
TX power: -5 dBm @ 1310 nm
RX power: -16 to -3 dBm / 1260 to 1620 nm

GPI
Complement/Triggering: Two; independent opto-isolated. Independent edge-triggered on H/L or L/H transition or combined logic considering both inputs (binary truth table)
Connector: 3-terminal Phoenix; GPI-1/GPI-2/COM

GPO
Complement/Signalling: Two, independent. Non-referenced SPST relay closure upon true condition(s).
Connector: 4-terminal Phoenix; GPI-1 pair/GPI-2 pair
Mapping: Selectable GPO true statement(s) activates selected GPO

Serial I/O
Connector: Two, independent function
Connector: 3-terminal Phoenix
Functions: Tx/Rx for Dolby® metadata, RS-485 LTC, logging/reserved functions

Rear Module Options

Rear Modules

Base Rear I/O Modules
Base Rear I/O Modules provide connections for standard card BNC video and audio connections, as well as other connections depending on rear module part number. These modules mate directly with the Fusion3G® card.

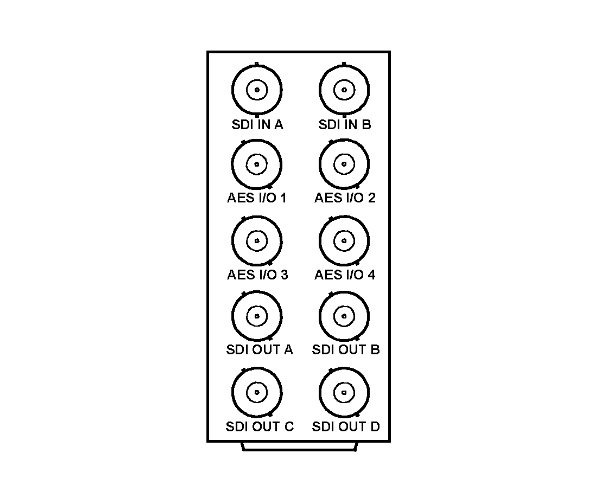

RM20-9901-B

   • (2) SDI In (Crosspoint selectable)
   • (4) AES In/Out (1-4)
   • (4) SDI Out (Crosspoint selectable)
   (All coaxial connectors BNC)

RM20-9901-B-HV-DIN
RM20-9901-B-HV-HDBNC

   • (2) SDI In (Crosspoint selectable)
   • (4) AES In/Out (1-4)
   • (4) SDI Out (Crosspoint selectable)
   (High-ventilation; all coaxial connectors DIN1.0/2.3 or
   HD-BNC)

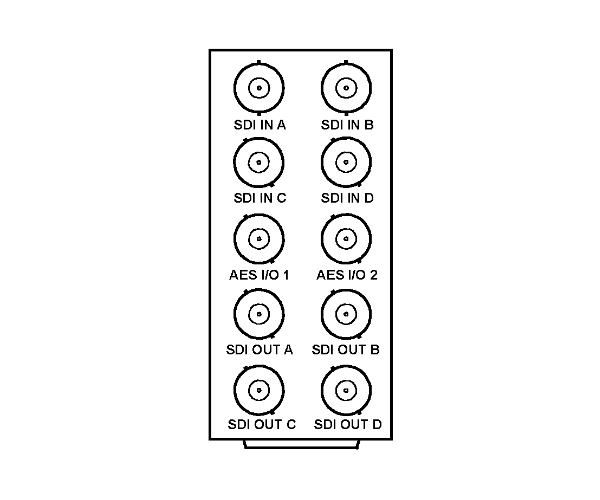

RM20-9901-C

   • (4) SDI In (Crosspoint selectable)
   • (2) AES In/Out (1-2)
   • (4) SDI Out (Crosspoint selectable)
   (All coaxial connectors BNC)

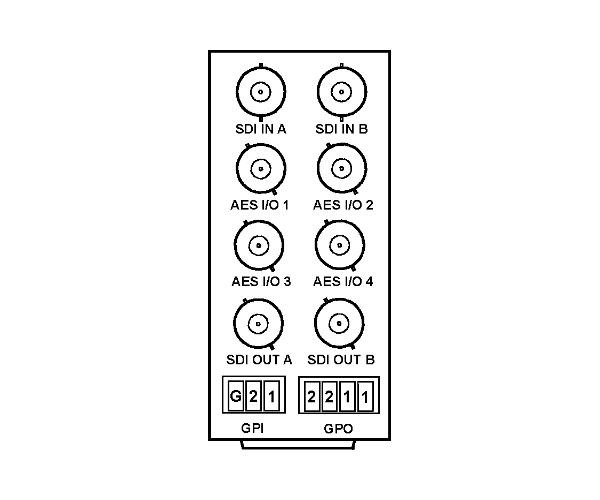

RM20-9901-D

   • (2) SDI In (Crosspoint selectable)
   • (4) AES In/Out (1-4)
   • (2) SDI Out (Crosspoint selectable)
   • (2) GPI
   • (2) GPO
   (All coaxial connectors BNC)

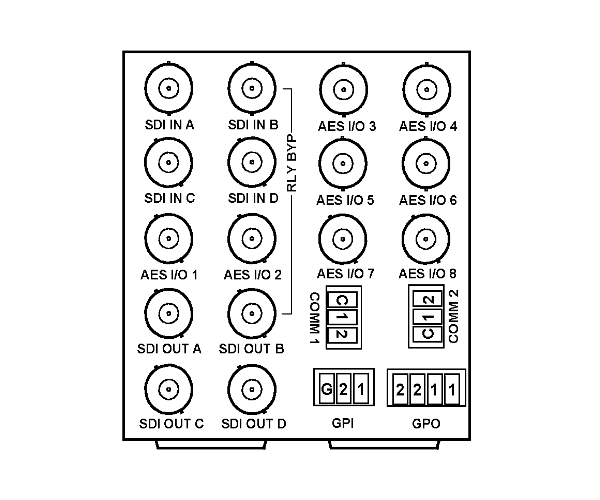

RM20-9901-E

   • (4) SDI In (Crosspoint selectable; RLY bypass on path B)
   • (8) AES In/Out (1-8)
   • (4) SDI Out (Crosspoint selectable)
   • (2) GPI
   • (2) GPO
   • (2) RS-485 (Metadata I/O; LTC I/O)
   (All coaxial connectors BNC)

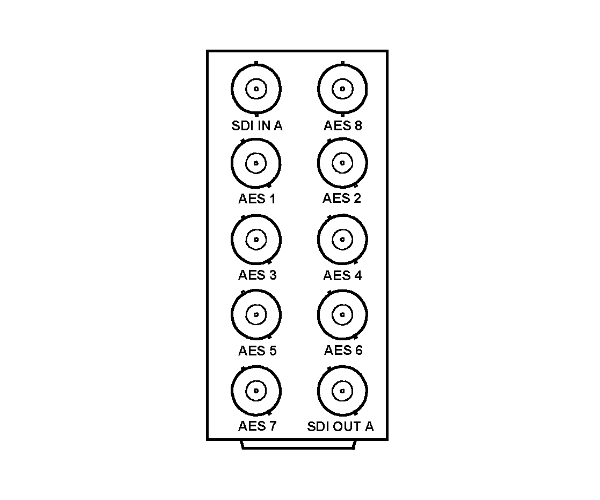

RM20-9901-F

   • (1) SDI In
   • (8) AES In/Out (1-8)
   • (1) SDI Out
   (All coaxial connectors BNC)

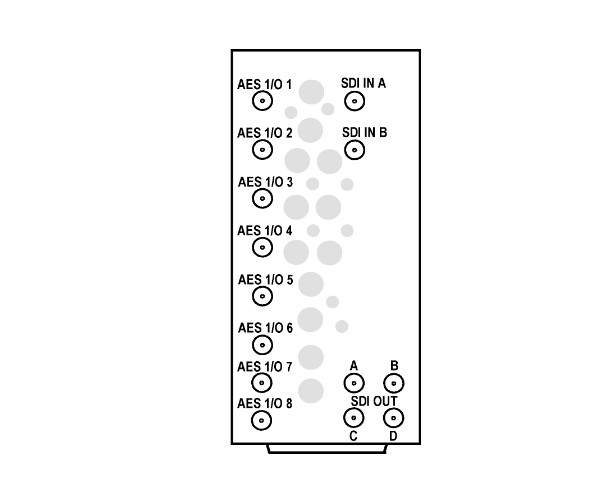

RM20-9901-F-HV-DIN
RM20-9901-F-HV-HDBNC

   • (2) SDI In (Crosspoint selectable)
   • (8) AES In/Out (1-4)
   • (4) SDI Out (Crosspoint selectable)
   (High-ventilation; all coaxial connectors DIN1.0/2.3 or
   HD-BNC)

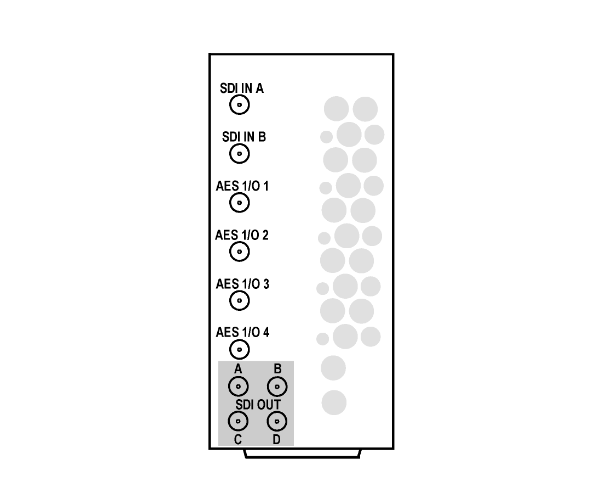

RM20-9901-F-HV2-DIN
RM20-9901-F-HV2-HDBNC

   • (2) SDI In (Crosspoint selectable)
   • (4) AES In/Out (1-4)
   • (4) SDI Out (Crosspoint selectable)

      (High-ventilation; all coaxial connectors DIN1.0/2.3 or
HD-BNC. This rear module provides optimized ventilation and

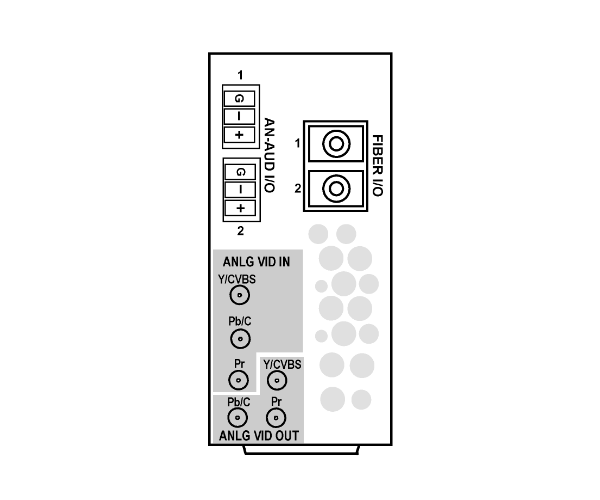

      should be used with -XF-HV where an expansion rear module
is required for analog A/V IO or fiber.)

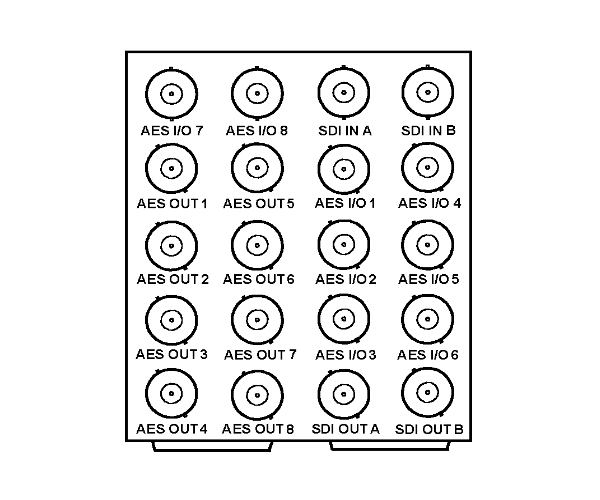

RM20-9901-G

   • (2) SDI In (Crosspoint selectable)
   • (8) AES In/Out (I/O 1-8)
   • (8) AES Out (OUT 1-8)
   • (2) SDI Out (Crosspoint selectable)
   (All coaxial connectors BNC)

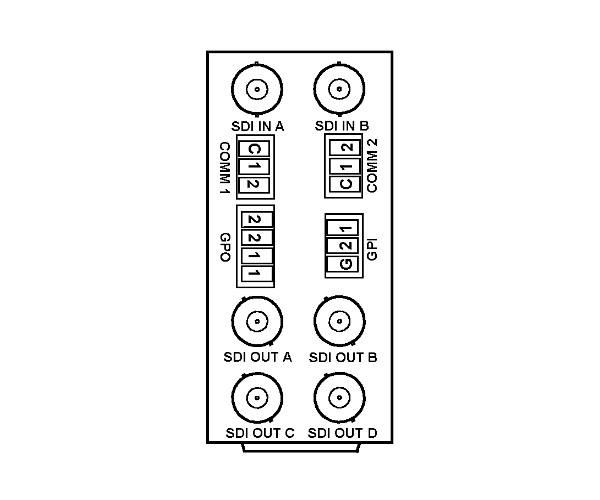

RM20-9901-H

   • (2) SDI In (Crosspoint selectable)
   • (4) SDI Out (Crosspoint selectable)
   • (2) GPI
   • (2) GPO
   • (2) RS-485 (Metadata I/O; LTC I/O)
   (All coaxial connectors BNC)

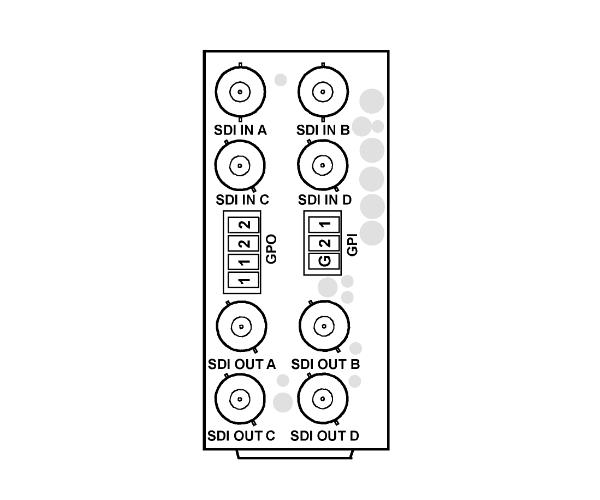

RM20-9901-J

   • (4) SDI In (Crosspoint selectable)
   • (4) SDI Out (Crosspoint selectable)
   • (2) GPI
   • (2) GPO
   (All coaxial connectors BNC)

Expansion Rear I/O Modules
Expansion Rear I/O Modules are required for some video and audio options, such as analog audio/video and fiber connections. These rear modules mate with an Expansion piggyback card that is mounted to the base Fusion3G® card when equipped with these options. Expansion Rear I/O Modules are identified with ‘X’ in the part number and must be used with a Base Rear I/O Module to provide the full complement of card connections. See About Cobalt Rear I/O Modules and Rear Module Cross-Reference at Reference and Help Documents for more information.

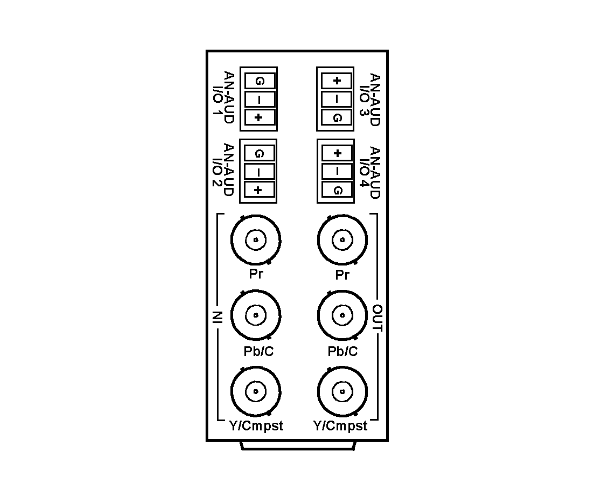

RM20-9901-XB

   • Component/CVBS Analog Video In
   • Component/CVBS Analog Video Out
   • (4) Balanced Analog Audio In/Out
   (All coaxial connectors BNC)
   Expansion rear module; must be used with base
   rear module.

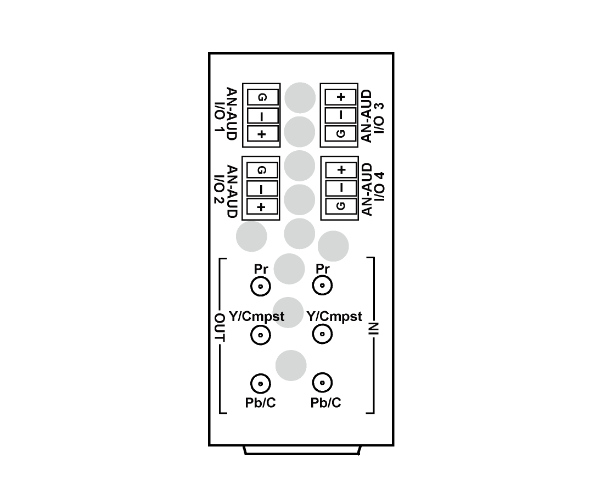

RM20-9901-XB-HV-DIN
RM20-9901-XB-HV-HDBNC

   • Component/CVBS Analog Video In
   • Component/CVBS Analog Video Out
   • (4) Balanced Analog Audio In/Out
   (High-ventilation; all coaxial connectors DIN1.0/2.3 or
   HD-BNC)
   Expansion rear module; must be used with base
   rear module.

RM20-9901-XC

   • Up to (2) Fiber I/O
   • (8) Balanced Analog Audio In/Out
   Expansion rear module; must be used with base
   rear module.

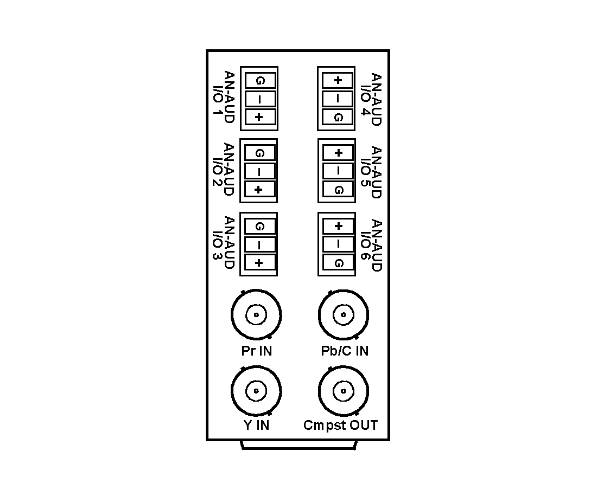

RM20-9901-XD

   • Component/CVBS Analog Video In
   • CVBS Analog Video Out
   • (6) Balanced Analog Audio In/Out
   (All coaxial connectors BNC)
   Expansion rear module; must be used with base
   rear module.

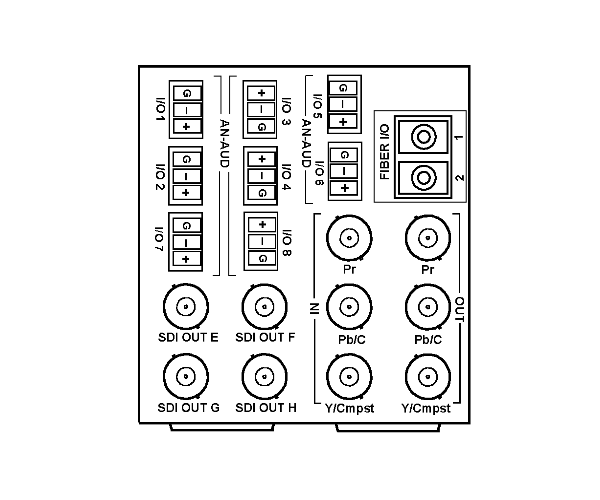

RM20-9901-XE

   • Component/CVBS Analog Video In
   • Component/CVBS Analog Video Out
   • (8) Balanced Analog Audio In/Out
   • Up to (2) Fiber I/O
   • (4) SDI Out (crosspoint selectable)
   (All coaxial connectors BNC)
   Expansion rear module; must be used with base
   rear module.

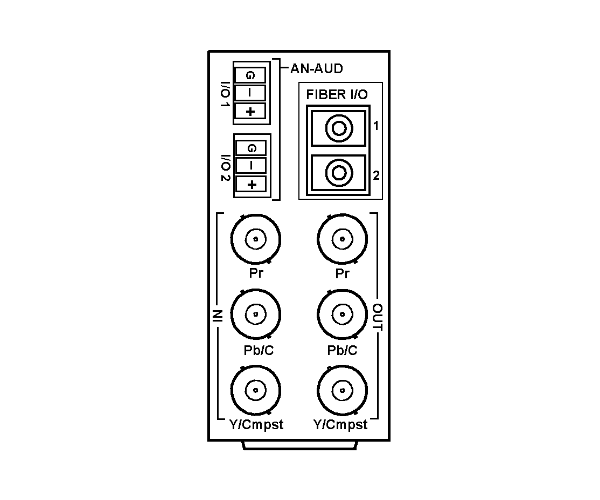

RM20-9901-XF

   • Component/CVBS Analog Video In
   • Component/CVBS Analog Video Out
   • (2) Balanced Analog Audio In/Out
   • Up to (2) Fiber I/O
   (All coaxial connectors BNC)
   Expansion rear module; must be used with base
   rear module.

RM20-9901-XF-HV-DIN
RM20-9901-XF-HV-HDBNC

   • Component/CVBS Analog Video In
   • Component/CVBS Analog Video Out
   • (2) Balanced Analog Audio In/Out
   • Up to (2) Fiber I/O
   (High-ventilation; all coaxial connectors DIN1.0/2.3 or
   HD-BNC)
   Expansion rear module; must be used with base
   rear module.

Ordering Information

9901-XC 3G/HD/SD Cross-Converter/Frame Sync/Audio Embed/De-Embed with Full-Feature Proc – I/O Support
9901-XC-HD HD/SD Only model
+UDX Field-upgrade to +UDX option for 9901-UC/9901-DC/9901-XC models
+3G Upgrade of -HD alternate model to 3G/HD/SD

See Options for a full list of available options, descriptions, and option ordering codes.

Base Rear I/O Modules

Base Rear I/O Modules provide connections for standard card BNC video and audio connections, as well as other connections depending on rear module part number. These modules mate directly with the Fusion3G® card.

RM20-9901-B 20-Slot Frame Rear I/O Module (Standard Width) (2) 3G/HD/SD-SDI BNC Inputs, (4) AES I/O BNCs,  (4) 3G/HD/SD-SDI BNC Outputs
RM20-9901-C 20-Slot Frame Rear I/O Module (Standard Width) (4) 3G/HD/SD-SDI BNC Inputs, (2) AES I/O BNCs,  (4) 3G/HD/SD-SDI BNC Outputs
RM20-9901-D 20-Slot Frame Rear I/O Module (Standard Width) (2) 3G/HD/SD-SDI Inputs, (4) AES I/O BNCs, (2) GPIO,  (2) 3G/HD/SD-SDI BNC Outputs
RM20-9901-E 20-Slot Frame Rear I/O Module (Double Width) (4) 3G/HD/SD-SDI BNC Inputs (SDI B with Relay Bypass),  (8) AES I/O BNCs, (2) GPIO, (2) COMM, (4) 3G/HD/SD-SDI BNC Outputs
RM20-9901-F 20-Slot Frame Rear I/O Module (Standard Width) (1) 3G/HD/SD-SDI BNC Input, (8) AES I/O BNCs,  (1) 3G/HD/SD-SDI BNC Output
RM20-9901-G 20-Slot Frame Rear I/O Module (Double Width) (2) 3G/HD/SD-SDI BNC Inputs, (8) AES I/O BNCs, 8 additional AES BNC Outputs, (2) 3G/HD/SD-SDI BNC Outputs  (Available only in conjunction with card option +AESOUT16)
RM20-9901-H 20-Slot Frame Rear I/O Module (Standard Width) (2) 3G/HD/SD-SDI BNC Inputs, (2) GPIO, (2) COMM, (4) 3G/HD/SD-SDI BNC Outputs
RM20-9901-J 20-Slot Frame Rear I/O Module (Standard Width) (4) 3G/HD/SD-SDI Inputs,  (4) 3G/HD/SD-SDI Output BNCs, 2 GPIO
RM20-9901-B-HV-HDBNC 20-Slot Frame Rear I/O Module (Standard Width; High Ventilation) (2) 3G/HD/SD-SDI Inputs, (4) AES Inputs/Outputs, (4) 3G/HD/SD-SDI Outputs (all connectors HD-BNC)
RM20-9901-B-HV-DIN 20-Slot Frame Rear I/O Module (Standard Width; High Ventilation) (2) 3G/HD/SD-SDI Inputs, (4) AES Inputs/Outputs, (4) 3G/HD/SD-SDI Outputs (all connectors DIN 1.0/2.3)
RM20-9901-F-HV-HDBNC 20-Slot Frame Rear I/O Module (Standard Width; High Ventilation) (2) 3G/HD/SD-SDI Inputs, (8) AES Inputs/Outputs, (4) 3G/HD/SD-SDI Outputs (all connectors HD-BNC)
RM20-9901-F-HV-DIN 20-Slot Frame Rear I/O Module (Standard Width; High Ventilation) (2) 3G/HD/SD-SDI Inputs, (8) AES Inputs/Outputs, (4) 3G/HD/SD-SDI Outputs (all connectors DIN 1.0/2.3)
RM20-9901-F-HV2-HDBNC 20-Slot Frame Rear I/O Module (Standard Width; High Ventilation) (2) 3G/HD/SD-SDI Inputs, (4) AES Inputs/Outputs, (4) 3G/HD/SD-SDI Outputs (all connectors HD-BNC)
RM20-9901-F-HV2-DIN 20-Slot Frame Rear I/O Module (Standard Width; High Ventilation) (2) 3G/HD/SD-SDI Inputs, (4) AES Inputs/Outputs, (4) 3G/HD/SD-SDI Outputs (all connectors DIN 1.0/2.3)

Expansion Rear I/O Modules

Expansion Rear I/O Modules are required for some video and audio options, such as analog audio/video and fiber connections. These rear modules mate with an Expansion piggyback card that is mounted to the base Fusion3G® card when equipped with these options. Expansion Rear I/O Modules are identified with ‘X’ in the part number and must be used with a Base Rear I/O Module to provide the full complement of card connections. See 20-Slot Frame Card Capacity and Rear Modules for more information.

RM20-9901-XB 20-Slot Frame Rear I/O Module (Standard Width) Component In BNCs, 4 Analog Audio I/O, Component Out BNC
RM20-9901-XC 20-Slot Frame Rear I/O Module (Standard Width) 2 Fiber I/O, 8 Analog Audio I/O
RM20-9901-XD 20-Slot Frame Rear I/O Module (Standard Width) Component In BNC, 6 Analog Audio I/O, Composite Out BNC
RM20-9901-XE 20-Slot Frame Rear I/O Module (Double Width) Component In BNC, 2 Fiber I/O, 8 Analog Audio I/O, Component Out BNC, (4) 3G/HD/SD-SDI BNC Outputs
RM20-9901-XF 20-Slot Frame Rear I/O Module (Standard Width) Component In BNC, 2 Fiber I/O, 2 Analog Audio I/O, Component Out BNC
RM20-9901-XB-HV-HDBNC 20-Slot Frame Rear I/O Module (Standard Width) Component In, 4 Analog Audio I/O, Component Out (All coaxial connectors are HD-BNC)
RM20-9901-XB-HV-DIN 20-Slot Frame Rear I/O Module (Standard Width) Component In, 4 Analog Audio I/O, Component Out (All coaxial connectors are DIN 1.0/2.3)
RM20-9901-XF-HV-HDBNC 20-Slot Frame Rear I/O Module (Standard Width) CVBS/Component In, 2 Fiber I/O, 2 Analog Audio I/O, CVBS/Component Out. (All coaxial connectors are HD-BNC)
RM20-9901-XF-HV-DIN 20-Slot Frame Rear I/O Module (Standard Width) CVBS/Component In, 2 Fiber I/O, 2 Analog Audio I/O, CVBS/Component Out. (All coaxial connectors are DIN 1.0/2.3)
