9904-UDX-4K 12G/6G/3G/HD/SD UHD Up/Down/Cross Converter/Frame Sync/Embed/De-Embed Audio Processor | Dante Option

Tabs

Overview

The award-winning Cobalt® 9904-UDX-4K 12G/6G/3G/HD/SD UHD Up/Down/Cross Converter/Frame Sync/Embed/De-Embed Audio Processor is Cobalt’s next generation of advanced scaler/frame synchronizers for the openGear® platform.

The 9904-UDX-4K upconverts 12G/6G/3G/HD/SD to either UHD1 3840x2160 Square DIvision Multiplex (SDM) or Two-Sample Interleave (2SI) quad 3G-SDI based formats, or can output ST 2082 12G-SDI for single-wire 4K transport. With both 12G-SDI and quad 3G-SDI inputs, the 9904-UDX-4K can downconvert 12G and quad UHD. The 9904-UDX-4K provides an HDMI 2.0 output for economical 4K video monitoring. The 9904-UDX-4K offers numerous options, including SDR-to-HDR conversion and color correction.

The 9904-UDX-4K-DSP model provides the same functionality as the 9904-UDX-4K model, and additionally also offers a DSP-based platform that supports multiple audio DSP options, including Dolby® Real-Time Loudness Leveling automatic loudness processing, Dolby® E/D/D+ encode/decode, and Linear Acoustic® UPMAX™ automatic upmixing. Embedded audio and metadata are properly delayed and re-embedded to match any video processing delay, with full adjustment available for audio/video offset.

The high-density openGear® design allows for up to five 9904-UDX-4K to be installed in one 2RU openGear® frame. Card control/monitoring is available via DashBoard user interface or Cobalt’s RESTful-based Reflex protocol.

DATASHEET

Alternate Models:

9904-UDX-4K-DSP 12G/6G/3G/HD/SD UHD Up/Down/Cross Converter/Frame Sync with DSP Advanced Audio Processing

Features

High-density openGear® comprehensive UHD UDX solution
Supports all popular formats: 480i, 576i, 720p, 1080i, 1080PsF, 1080p, 2160p. Can support/accept 3G Level A or Level B-DL input with output as Level A or B-DL (via UI control) and also support RGB 4:4:4 / YCbCr 4:4:4 (see Ordering Info for details).
Full up/down conversion between HD/3G, ST 2082 12G-SDI single-wire, and SDM/2SI quad 3G-SDI based formats, with ST 2082 12G-SDI single-wire and quad 3G UHD available at both input and output
Supports Square Division Multiplex (SDM) and Two-Sample Interleave (2SI) quad UHD formats
12G-SDI and quad 3G frame sync and user delay
Supports Cobalt’s Reflex (JSON) Protocols
Full embedded audio processing with user delay offset and AES I/O
Noise Reduction and Detail Enhancement provide image quality optimization
Remote control/monitoring via Dashboard™ software, OGCP-9000 remote control panels, or Cobalt’s RESTful-based Reflex protocol
Hot-swappable
Many options available including DANTE
Five year warranty

Options

Option

Note:
• Options denoted as "+" are software-based options which are available on new product when
'ordered or can be customer field-installed as a software upload upgrade.
• Options or ordering line items denoted as “-“ are hardware-based options/items. These options are
'available as factory-installed only on new product, or product returned to Cobalt for
'factory installation.
-------------------------------------------------------------------------------------------------------------------------------------------

SDR/HDR Conversion Options (+HDR-TCHCLR-4K, +HDR-TCHCLR ) – Provides real-time intelligent HDR conversion powered by Technicolor®. Contains SDR-to-HDR, HDR-to-SDR, and HDR-to-HDR conversion with dynamic metadata creation. Technicolor toolkits include SL-HDR encode, SL-HDR decode, and ITM Intelligent Tone Management.

3D LUT Options (+3DLUT-PRO-4K, +3DLUT-PRO) – 3D LUT (Lookup Table) options provide 33 cube LUT mapping between 10-bit RGB and HDR color spaces.

BBC 3D LUT Option (+3D-LUT-BBC) – Licensed product developed by the BBC, provides BBC 3D LUTS as optional SDR-to-HDR and HDR-to-SDR profiles. (Requires +3D-LUT-PRO or +3D-LUT-PRO-4K option to also be present to support this option.)

Color Correction Options (+COLOR-4K, +COLOR) – Provides full RGB color corrector (offset, gain, gamma) with extended YCbCr proc controls with white hard clip, white soft clip, black hard clip, and saturation clip.

Key/Fill Keyer Option (+KEYER-4K, +KEYER) – Provides keying using SDI inputs for key and fill signals. Alpha Threshold mode allows full-color key/fill using low-cost PC-based graphics host where the same signal provides a shared key/fill input. (A second +KEYER option license can be added to enable a second independent keyer block.)

Ancillary Data Processor Option (+ANC) – Provides full user VANC/HANC packet insertion/extraction access to DID/SDID ancillary data, with insert/extract to and from IP and GPIO external interfaces.

Logo Insertion Option (+LOGO-4K, +LOGO) – Provides file-based insertion for branding local or destination branding/ID requirements. Stores up to 32 user graphics on card. Up to two graphics can be inserted simultaneously. Insertion enable via manual control or GPI. Full independent H-V positioning available. +T-SLATE (trouble slate insertion) functionality is included with the +LOGO option.

Audio LTC I/O Option (+LTC)

Dante Option (+UDX-DANTE-16x16) Adds DANTE support of 16x16 channels to the 9904-UDX card but it cannot be used simultaneously with +HDR-TCHCLR and +LOGO licenses. Option available for the following products: 9904-UDX-4K, 9904-UDX-4K-DSP and 9904-UDX-4K-IP. Option to be added per card at the time of card purchase. Not field upgradeable.

-H2S Option – Adds daughter card supporting externally-accessible HDMI input.

-UDX-SFP-MSA Adds daughter card supporting externally-accessible dual MSA SFP cage.

Note: To support SFP option(s), this option is required in addition to desired specific SFP options below. -UDX-SFP-MSA option can only be used with rear module (such as RM20-9904-C-HDBNC) that supports SFP plug-in modules. When ordering, please see Ordering Information for further details.

-SFP-EOOE-MSA-12G 12G/6G/3G/HD/SD-SDI UHD Transceiver (LC female connectors)

-SFP-EO-MSA-12G 12G/6G/3G/HD/SD-SDI UHD Transmitter (LC female connector)

-SFP-OE-MSA-12G 12G/6G/3G/HD/SD-SDI UHD Receiver (LC female connector)

-SFP-EOOE-MSA Single-Channel Video Optical Transceiver (LC female connectors)

-SFP-EO-MSA Single-Channel Video Optical Transmitter (LC female connector)

-SFP-OE-MSA Single-Channel Video Optical Receiver (LC female connector)

-SFP-IP-SWD-MSA Software-Defined MSA SFP; 2110 or 2022-6 Encapsulator/De-Encapsulator (See Ordering Info for full descriptions and details.)

-UDX-SFP Adds daughter card supporting externally-accessible dual SFP cage.

Note: To support SFP option(s), this option is required in addition to desired specific SFP options below. -UDX-SFP option can only be used with rear module (such as RM20-9904-C-HDBNC) that supports compatible SFP plug-in modules. When ordering, please see Ordering Information for further details.

-SFP-EOOE-12G 12G/6G/3G/HD/SD-SDI UHD Transceiver (LC female connectors)

-SFP-EO-12G 12G/6G/3G/HD/SD-SDI UHD Transmitter (LC female connector)

-SFP-2EO-12G 12G/6G/3G/HD/SD-SDI UHD Dual Transmitter (LC female connector)

-SFP-OE-12G 12G/6G/3G/HD/SD-SDI UHD Receiver (LC female connector)

-SFP-2OE-12G 12G/6G/3G/HD/SD-SDI UHD Dual Receiver (LC female connector)

-SFP-EOOE Single-Channel Video Optical Transceiver (LC female connectors)

-SFP-EO Single-Channel Video Optical Transmitter (LC female connector)

-SFP-2EO Dual-Channel Video Optical Transmitter (LC female connector)

-SFP-OE Single-Channel Video Optical Receiver (LC female connector)

-SFP-2OE Dual-Channel Video Optical Receiver (LC female connector)

-SFP-IP-SWD Software-Defined EmSFP; 2110 or 2022-6 Encapsulator/De-Encapsulator (See Ordering Info for full descriptions and details.)

+SCTE104-FAST Frame Accurate SCTE104 Trigger. Software option available (per path) for the following products: 9902-UDX, 9902-2UDX, 9904-UDX, 9904-UDX-4K (the option in this card does not support manual or GPI insertions), 9922-FS, 9922-2FS, 9902-UDX-FS, 9903-UDX-ADDA, 9934-AUD-PRO, 9950-EMDE-ANC, BBG-1002-UDX, BBG-1002-2UDX, BBG-1022-FS, BBG-1022-2FS, BBG-1002-UDX-FS, BBG-1003-UDX-ADDA, BBG-1034-AUD-PRO, BBG-1050-EMDE-ANC. Frame Accurate SCTE104 Trigger with support for SCTE-104 Proxy over TCP. Software option available (per path) for the following products: 9902-UDX, 9902-2UDX, 9922-FS, 9922-2FS, 9950-EMDE-ANC, BBG-1002-UDX, BBG-1002-2UDX, BBG-1022-FS, BBG-1022-2FS, BBG-1002-UDX-FS, BBG-1050-EMDE-ANC. (Supported for both paths. Controls for the manual insertions not available on path 2)

+DUAL-OUTPUT-9904 Enables 4K and HD outputs on the 9904-UDX series. This license does not enable a second 4K path. It only supports +3DLUT-PRO and -H2S Options on both outputs. Software option available for the following product: 9904-UDX-4K

+QC Quality Check Allows criteria such as black/ frozen frame events to propagate an event alert. This alert can be used by the card Presets function to invoke video routing changes, GPO, and other actions.

+DLY Option Expands the delay capability to 60 frames. (All video formats) NOTE: Not available if +DUAL-OUTPUT-9904 option is installed.

Diagrams

Specifications

Note: All specifications are preliminary and subject to change.

12G/6G/3G/HD/SD-SDI Input/Outputs
(6) 75Ω inputs (max)
(8) 75Ω outputs (max)
SDI Formats Supported: SMPTE ST2082-1,10, 424M, 292M, SMPTE 259M-C. All inputs/outputs 12G compliant and SDQS/2SI quad 3G compliant.
Return Loss:
> 15 dB up to 1.485 GHz
> 10 dB up to 3 GHz
> 7 dB up to 6 GHz
> 5 dB up to 12 GHz
Input Cable Length:
45m Belden 1694A cable at 11.88 Gbps
120m Belden 1694A cable at 2.97 Gbps
240m Belden 1694A cable at 1.485 Gbps
400m Belden 1694A cable at 270 Mbps
Output Signal Level: 800 mV ±10%
DC Offset: 0 V ± 50 mV
Rise and Fall Time @ 11.88 Gbps: < 45 ps
Alignment Jitter (12G/3G/HD/SD): < 0.3/0.3/0.2/0.2 UI

Frame Sync Audio/VIdeo Delay
Max offset: 20 frames
Latency (min): 1 frame

User Audio Delay Offset from Video
Bulk delay control: -33 msec to +3000 msec.
Per-channel delay controls: -800 msec to +800 msec

AES Audio Inputs/Outputs
(8) 75Ω coaxial ports (max); port direction assignable as inputs or outputs in groups of 4 ports.
Note: Hardware rev –E and later has 8 AES ports; earlier versions have 4 port max.

MADI Audio Inputs/Outputs
(2) 75Ω coaxial ports (max)
Note: Not all rear modules support full MADI I/O. MADI I/O is a function of Rear Module used
and is available only on card with on rev C (or later) hardware with firmware supporting MADI I/O.
See Rear Module illustrations for specific information.

HDMI Input (Option -H2S only)
HDMI 2.0 Input; mini connector

HDMI Output
HDMI 2.0 Output; type A standard connector

GPIO
6 GPI (max); 2 GPO (max)
Note: GPIO max capacity is a function of Rear Module used. See Rear Module Options tab for specific information.

Frame Reference Input
(2) reference from frame bus. SMPTE 170M/318M “Black Burst”, SMPTE 274M/296M “Tri-Level”

Frame Loading (Max. recommended number of 9904 cards supported per Frame Model)
  •OG3 Frame: (5) cards
  •HPF-9000 Frame: (5) cards
  •oGx Frame: (7) cards
Note: In all cases, it is recommended to leave a 1RU gap above the frame and set frame Network Controller Card to run the frame cooling fans at full (max.) speed.

Rear Module Options

Rear Modules

Note:
• MADI I/O is available on rev C (or later) hardware with firmware supporting MADI I/O. When enabled
'MADI In and MADI Out acquire SDI In 6 and SDI Out 5 (respectively) on rear modules that support
'these I/O. Rear modules that support MADI I/O ("MADI Compatible") show the MADI port locations
'that are SDI IN 6 and/or SDI OUT 5 alternatives (as shown in rear module illustrations).
• Rear modules with SFP access do not come standard with any SFP functionality. Appropriate SFP
option must be provisioned for rear module SFP functionality.
• SFP port-type availability depends upon SFP Type, rear IO module, and 9904-UDX host card rev
as follows:
• Option -UDX-SFP (non-MSA); Card Rev E and earlier with -C, -F, -G rear IO module:
- Top SFP port supports up to 2 Fiber inputs and up to 2 Fiber outputs.
- Bottom SFP port supports up to 2 Fiber inputs.
• Option -UDX-SFP (non-MSA); Card Rev F and later with -C, -F, -G rear IO module:
- Top SFP port supports up to 2 Fiber inputs and up to 2 Fiber outputs.
- Bottom SFP port supports up to 2 Fiber inputs and up to 2 Fiber outputs.
• Option -UDX-SFP (non-MSA); Card Rev E and earlier with -K rear IO:
- Top SFP port supports up to 2 Fiber inputs and up to 2 Fiber outputs.
- Bottom SFP port is unused (NC).
• Option -UDX-SFP (non-MSA); Card Rev F and later with -K rear IO:
- Top SFP port supports up to 2 Fiber inputs and up to 2 Fiber outputs.
- Bottom SFP port support up to 2 Fiber outputs.
• Option -UDX-SFP-MSA (no card restictions):
- Top SFP port supports 1 Fiber input and 1 Fiber output.
- Bottom SFP port supports 1 Fiber input and 1 Fiber output.

RM20-9904-A-HDBNC

   • (6) SDI In
   • (8) SDI Out
   • (4) AES I/O (User Selectable)
• MADI Compatible
   • GPIO/COMM
• (1) HDMI In (option –H2S only)
Note: This input resides on the
card assembly and projects through
a cutout on the rear module. The
connectors are not part of the rear
module assembly. (The connectors are
shown here for reference.)
   • (1) HDMI Out
• (1) 100/1000 BaseT Ethernet Port
(All coaxial connectors HD-BNC)
Note: This rear module replaces obsolete
rear module RM20-9904-B-HDBNC below.

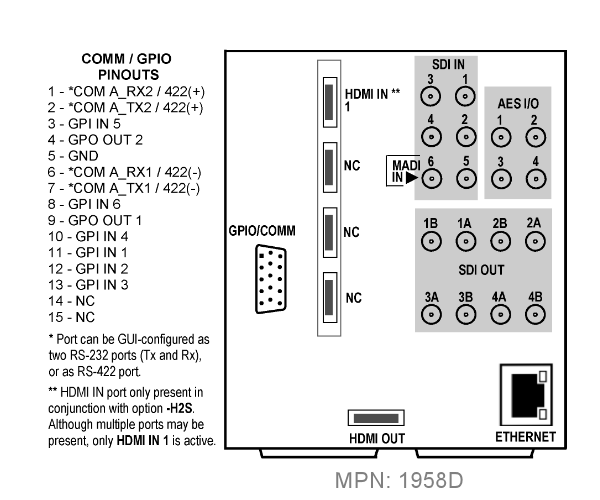

RM20-9904-B-HDBNC

   • (6) SDI In
   • (8) SDI Out
   • (4) AES I/O (User Selectable)
• MADI Compatible
   • GPIO/COMM
• (1) HDMI In (option –H2S only)
Note: This input resides on the
card assembly and projects through
a cutout on the rear module. The
connectors are not part of the rear
module assembly. (The connectors are
shown here for reference.)
   • (1) HDMI Out
• (1) 100/1000 BaseT Ethernet Port
(All coaxial connectors HD-BNC)
Note: This rear module is being replaced
by rear module RM20-9904-A-HDBNC
(shown above). RM-20-9904-A-HDBNC has identical
connectivity and form function/size as
obsoleted rear module RM20-9904-B-HDBNC.

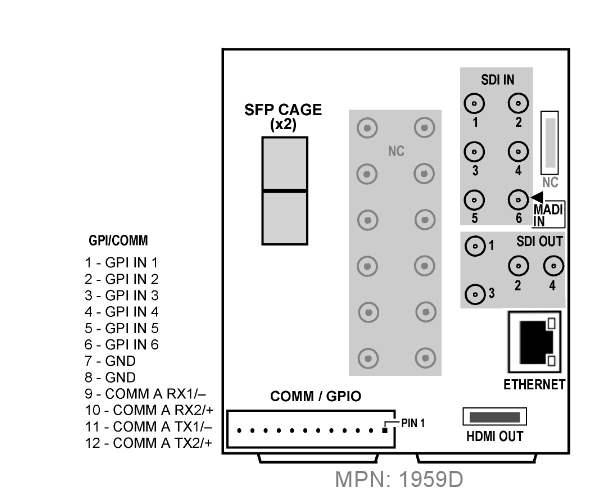

RM20-9904-C-HDBNC

   • (6) SDI In
   • (4) SDI Out
• MADI Compatible
   • GPI/COMM
   • (1) HDMI Out
   • (2) SFP cage receptacles (valid
with option -UDX-SFP or
-UDX-SFP-MSA only)
• (1) 100/1000 BaseT Ethernet Port
(All coaxial connectors HD-BNC)

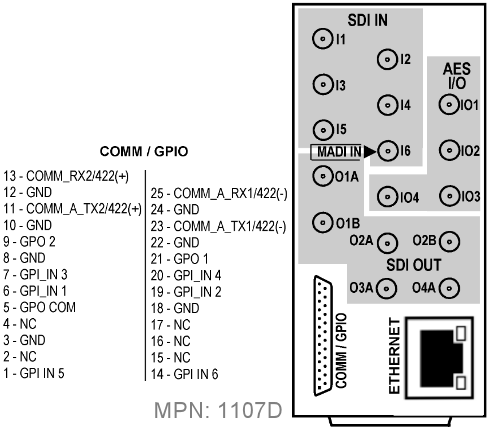

RM20-9904-D-HDBNC

   • (6) SDI In
   • (6) SDI Out
   • (4) AES I/O (User Selectable)
• MADI Compatible
   • GPIO/COMM
   • (1) 100/1000 BaseT Ethernet Port
(All coaxial connectors HD-BNC)

      Note: Due to the alignment of the 9904 card and this
rear module, the combination of the card and rear module
will consume the adjacent odd frame slot in addition to the
even slot occupied by the card.
      Note: This rear module cannot be installed in OpenGear® frame slots
     19/20 location. The 9904-UDX card, when installation is
     attempted, will clash/interfere with the frame network
     controller card.

RM20-9904-E-HDBNC

• (6) SDI In
• (9) SDI Out
• (4) AES I/O (User Selectable)
• (1) HDMI Out
• MADI Compatible
• (2) SFP cage receptacles (valid
with option -UDX-SFP or
-UDX-SFP-MSA only)
• GPI/COMM
• (1) 100/1000 BaseT Ethernet Port
Note: This rear module has been replaced
by rear module RM20-9904-F-HDBNC
(shown below).

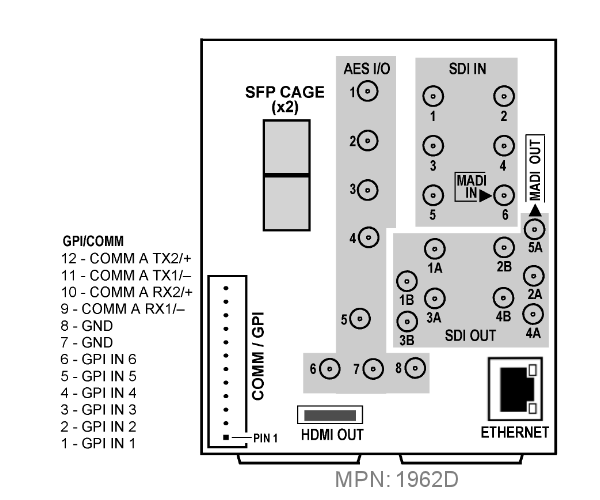

RM20-9904-F-HDBNC

   • (6) SDI In
   • (9) SDI Out
   • (8) AES I/O (User Selectable)
• (1) HDMI Out
• MADI Compatible
• (2) SFP cage receptacles (valid
with option -UDX-SFP or
-UDX-SFP-MSA only)
• GPI/COMM
• (1) 100/1000 BaseT Ethernet Port
  Note: (8) AES ports supported on card hardware rev -E and
later. Earlier card versions support (4) AES ports (max).
(All coaxial connectors HD-BNC)

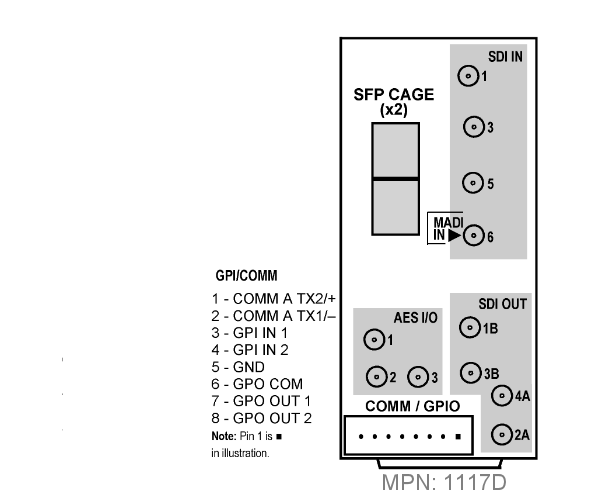

RM20-9904-G-HDBNC

   • (4) SDI In
   • (4) SDI Out
   • (3) AES I/O (User Selectable)
• MADI Compatible
• SFP cage receptacles (valid with
option -UDX-SFP or-UDX-SFP-MSA only)
• GPIO/COMM
(All coaxial connectors HD-BNC)
  Note: Mates to card in odd slot.

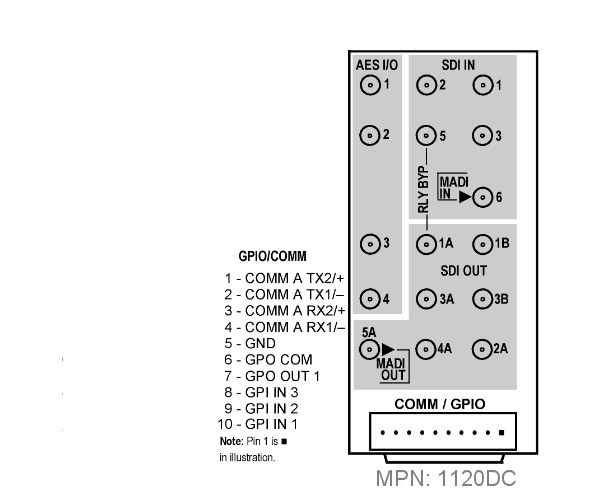

RM20-9904-H-HDBNC

   • (5) SDI In
   • (1) Relay protected SDI Out
(processed SDI OUT 1A or SDI IN 5
on loss of power)
   • (7) SDI Out
• MADI Compatible
   • (4) AES I/O (User Selectable)
   • GPIO/COMM
      (All coaxial connectors HD-BNC)
Note: Mates to card in odd slot.
Note: 12G signals over relay bypass
path stipulates maximum cable length
not to exceed 10m for total of both
input and output cable lengths.

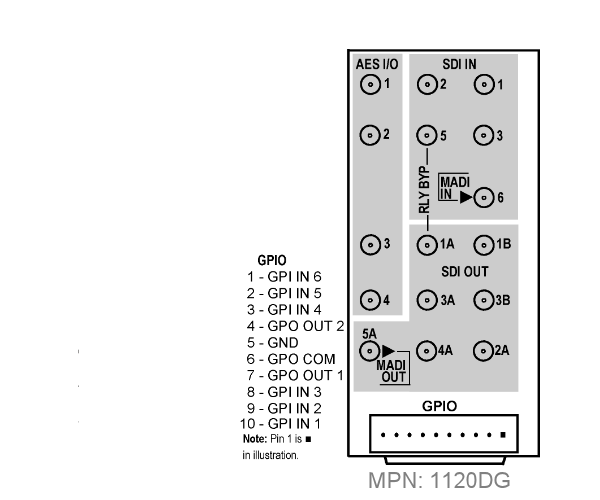

RM20-9904-J-HDBNC

   • (5) SDI In
   • (1) Relay protected SDI Out
(processed SDI OUT 1A or SDI IN 5
on loss of power)
   • (7) SDI Out
• MADI Compatible
   • (4) AES I/O (User Selectable)
   • GPIO
      (All coaxial connectors HD-BNC)
Note: Mates to card in odd slot.
Note: 12G signals over relay bypass
path stipulates maximum cable length
not to exceed 10m for total of both
input and output cable lengths.

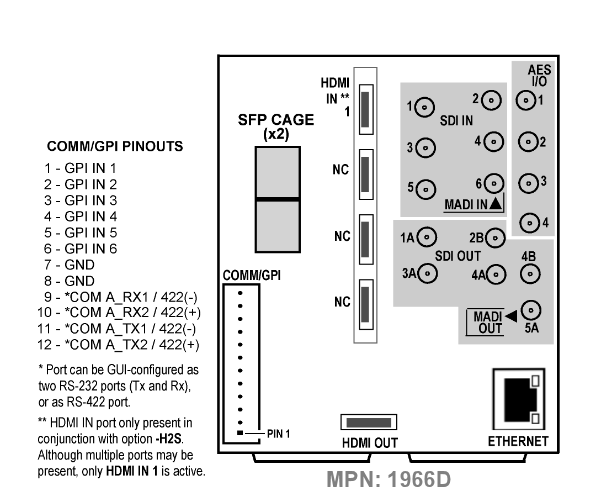

RM20-9904-K-HDBNC

   • (6) SDI In
   • (6) SDI Out
   • (4) AES I/O (User Selectable)
• MADI Compatible
   • COMM/GPI
• (1) HDMI In (option –H2S only)
Note: This input resides on the
card assembly and projects through
a cutout on the rear module. The
connectors are not part of the rear
module assembly. (The connectors are
shown here for reference.)
   • (1) HDMI Out
   • (2) SFP cage receptacles (valid
with option -UDX-SFP or
-UDX-SFP-MSA only)
• (1) 100/1000 BaseT Ethernet Port
(All coaxial connectors HD-BNC)

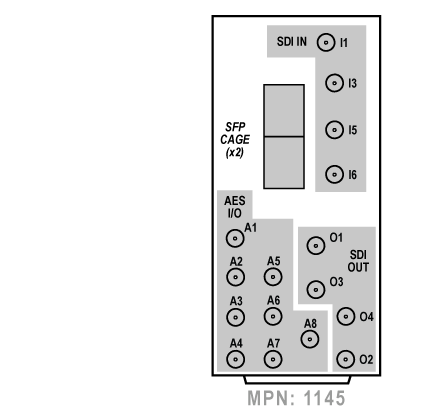

RM20-9904-P-HDBNC

(4) SDI In (I1, I3, I5, and I6)
(4) SDI Out (O1-4)
(8) AES I/O (A1-8 User Selectable)
(2) SFP Cages
(All coaxial connectors HD-BNC)

Note: Mates to card in Odd slot.

Note: This rear module cannot be installed in OpenGear® frame slots 19/20 location. The 9904-UDX card, when installation is attempted, will clash/interfere with the frame network controller card.

Ordering Information

9904-UDX-4K 12G/6G/3G/HD/SD UHD Up/Down/Cross Converter/Frame Sync/Embed/De-Embed Audio Processor

Note: Card can support/accept 3G Level A or Level B-DL input with output as Level A or B-DL (via UI control) and also support RGB 4:4:4 / YCbCr 4:4:4 when card is loaded with corresponding firmware offset version. The functionality described here is available as standard (no additional charge) when requested at order. Consult Product Support for more information.
Rear Modules:

Note:
• MADI I/O is available on rev C (or later) hardware with firmware supporting MADI I/O. When enabled
'MADI In and MADI Out acquire SDI In 6 and SDI Out 5 (respectively) on rear modules that support
'these I/O. Rear modules that support MADI I/O show the MADI port locations that are SDI IN 6 and/or
'SDI OUT 5 alternatives. Rear modules that support MADI are identified below as MADI Compatible.
• Rear modules with SFP access do not come standard with any SFP functionality. Appropriate SFP
'option must be provisioned for rear module SFP functionality.
RM20-9904-A-HDBNC 20-Slot Frame Rear I/O Module (Double-Width) (6) 12G/6G/3G/HD/SD/SD-SDI Inputs, (8) 12G/6G/3G/HD/SD/SD-SDI Processed Outputs, (4) AES I/O, GPIO/COMM, HDMI 2.0 Output (type A standard connector), (1) HDMI 2.0 Input (mini connector) (when used in conjunction with option –H2S), 100/1000 BaseT Ethernet Port MADI Compatible (All coaxial connectors HD-BNC.)
RM20-9904-C-HDBNC 20-Slot Frame Rear I/O Module (Double-Width) (6) 12G/6G/3G/HD/SD/SD-SDI Inputs, (4) 12G/6G/3G/HD/SD/SD-SDI Processed Outputs, GPI/COMM, HDMI 2.0 Output (type A standard connector), (2) SFP cage receptacles (when used in conjunction with SFP option), 100/1000 BaseT Ethernet Port MADI Compatible (All coaxial connectors HD-BNC)
RM20-9904-D-HDBNC 20-Slot Frame Rear I/O Module (Standard-Width) (6) 12G/6G/3G/HD/SD/SD-SDI Inputs, (6) 12G/6G/3G/HD/SD/SD-SDI Processed Outputs, (4) AES I/O, GPIO/COMM, 100/1000 BaseT Ethernet Port MADI Compatible (All coaxial connectors HD-BNC.)
RM20-9904-F-HDBNC 20-Slot Frame Rear I/O Module (Double-Width) (6) 12G/6G/3G/HD/SD/SD-SDI Inputs, (9) 12G/6G/3G/HD/SD/SD-SDI Processed Outputs, (8) AES I/O, GPI/COMM, HDMI 2.0 Output (type A standard connector), (2) SFP cage receptacles (when used in conjunction with SFP option), 100/1000 BaseT Ethernet Port MADI Compatible (All coaxial connectors HD-BNC.)
RM20-9904-G-HDBNC 20-Slot Frame Rear I/O Module (Standard-Width) (4) 12G/6G/3G/HD/SD/SD-SDI Inputs, (4) 12G/6G/3G/HD/SD/SD-SDI Processed Outputs, (3) AES I/O, (2) SFP cage receptacles (when used in conjunction with SFP option), GPIO/COMM MADI Compatible (All coaxial connectors HD-BNC.) (Note: Mates to card in odd frame slot.)
RM20-9904-H-HDBNC 20-Slot Frame Rear I/O Module (Standard-Width) (5) 12G/6G/3G/HD/SD/SD-SDI Inputs, (7) 12G/6G/3G/HD/SD/SD-SDI Processed Outputs (one 3G/HD/SDI Output with relay bypass failover), (4) AES I/O, GPIO/COMM MADI Compatible (All coaxial connectors HD-BNC.) (Note: Mates to card in odd frame slot.)
RM20-9904-J-HDBNC 20-Slot Frame Rear I/O Module (Standard-Width) (5) 12G/6G/3G/HD/SD/SD-SDI Inputs, (7) 12G/6G/3G/HD/SD/SD-SDI Processed Outputs (one 3G/HD/SDI Output with relay bypass failover), (4) AES I/O, GPIO MADI Compatible (All coaxial connectors HD-BNC.) (Note: Mates to card in odd frame slot.)
RM20-9904-K-HDBNC 20-Slot Frame Rear I/O Module (Double-Width) (6) 12G/6G/3G/HD/SD/SD-SDI Inputs, (6) 12G/6G/3G/HD/SD/SD-SDI Processed Outputs, (4) AES I/O, COMM/GPI, HDMI 2.0 Output (type A standard connector), (1) HDMI 2.0 Input (mini connector) (when used in conjunction with option –H2S), (2) SFP cage receptacles (when used in conjunction with SFP option), 100/1000 BaseT Ethernet Port MADI Compatible (All coaxial connectors HD-BNC.)
RM20-9904-P-HDBNC 20-Slot Frame Rear I/O Module (Standard-Width) (4) 12G/6G/3G/HD/SD/SD-SDI Inputs, (4) 12G/6G/3G/HD/SD/SD-SDI Processed Outputs, (8) AES I/O, (2) SFP/Receptacles (All coaxial connectors HD-BNC.) This I/O panel is supported on the HPF-9000 and oGx openGear frames

Options:

+HDR-TCHCLR-4K 4K SDR/HDR Conversion Option (This option includes SL-HDR encode, SL-HDR decode, and ITM Intelligent Tone Management.)
+HDR-TCHCLR SDR/HDR Conversion Option (This option includes SL-HDR encode, SL-HDR decode, and ITM Intelligent Tone Management.)
+3DLUT-PRO-4K 3D LUT 4K Option (compatible with up-mapping to HDR and processing for down-conversions to HD SDR color space)
+3DLUT-PRO 3D LUT Option (compatible with processing for down-conversions to HD SDR color space)
+3D-LUT-BBC BBC 3DLUT Option (Requires +3D-LUT-PRO or +3D-LUT-PRO-4K option to also be present to support this option)
+COLOR-4K 4K Color Correction Option
+COLOR Color Correction Option
+KEYER-4K 4K Key/Fill Keyer (Alpha) Option (Additional second option license enables a second independent keyer block.)
+KEYER Key/Fill Keyer (Alpha) Option (Additional second option license enables a second independent keyer block.)
+LOGO-4K 4K Logo Insertion Option (also includes +T-SLATE option function)
+LOGO Logo Insertion Option (also includes +T-SLATE option function)
+ANC Ancillary Data Processor Option
+LTC Audio LTC I/O Option
+UDX-DANTE-16x16 Adds DANTE support of 16x16 channels to the 9904-UDX card but it cannot be used simultaneously with +HDR-TCHCLR and +LOGO licenses. Option available for the following products: 9904-UDX-4K, 9904-UDX-4K-DSP and 9904-UDX-4K-IP. Option to be added per card at the time of card purchase. Not field upgradeable.
-H2S Adds daughter card supporting externally-accessible HDMI input port; orderable as new option. Note: To support HDMI input option -H2S, this option is required in addition to card fitted with rear module (such as RM20-9904-B-HDBNC) that allows access to the daughter card-located HDMI input connector.
-UDX-SFP-MSA Adds daughter card supporting externally-accessible dual MSA SFP cage; orderable as new option. Note: To support SFP option(s), this option is required in addition to desired specific SFP options below. The SFP modules listed below are available for the 9904-UDX-4K card when also fitted with SFP option -UDX-SFP-MSA.
• -UDX-SFP-MSA-4S daughter card is used with 4-slot ("Double-Width") rear module (such as
RM20-9904-C-HDBNC, RM20-9904-F-HDBNC, or RM20-9904-K-HDBNC). UDX-SFP-MSA is only
available for use in conjunction with 4-slot rear modules and daughter card -UDX-SFP-MSA-4S).
Rear modules RM20-9904-C-HDBNC, RM20-9904-F-HDBNC, RM20-9904-K-HDBNC and option
-UDX-SFP-MSA-4S are available separately.
-SFP-EOOE-MSA-12G 12G/6G/3G/HD/SD-SDI UHD Transceiver (LC female connectors)
-SFP-EO-MSA-12G 12G/6G/3G/HD/SD-SDI UHD Transmitter (LC female connector)
-SFP-OE-MSA-12G 12G/6G/3G/HD/SD-SDI UHD Receiver (LC female connector)
-SFP-EOOE-MSA Single-Channel Video Optical Transceiver (LC female connectors)
-SFP-EO-MSA Single-Channel Video Optical Transmitter (LC female connector)
-SFP-OE-MSA Single-Channel Video Optical Receiver (LC female connector)
-SFP-IP-SWD-MSA Software-Defined MSA SFP 2011/2022-6 Encap/De-Encap Host. 10GigE Multi-Mode Optical Interface with Female LC Duplex Connectors. The following I/O purposing software options are available for cards using SFP type -SPF-IP-SWD-MSA (Up to 3 software licenses can be added to the -SFP-IP-SWD-MSA, but only 1 license can be active at a time):
+ADD-SFP-IP-TO-SDI-2022-6 SFP Software License; Single-Channel De-Encapsulator
IP-2022-6-to-SDI

+ADD-SFP-IP-TO-SDI-2110 SFP Software License; Single-Channel De-Encapsulator IP-2110-to-SDI
+ADD-SFP-SDI-TO-IP-2022-6 SFP Software License; Single-Channel Encapsulator SDI-to-IP-2022-6
+ADD-SFP-SDI-TO-IP-2110 SFP Software License; Single-Channel Encapsulator SDI-to-IP-2110

-UDX-SFP Adds daughter card supporting externally-accessible dual SFP cage; orderable as new option. Note: To support SFP option(s), this option is required in addition to desired specific SFP options below. The SFP modules listed below are available for the 9904-UDX-4K card when also fitted with SFP option -UDX-SFP.
• -UDX-SFP-2S is required where 2-slot ("Standard-Width") rear module
(such as RM20-9904-G-HDBNC) is to be fitted with SFP option.
• -UDX-SFP-4S is required where 4-slot ("Double-Width") rear module (such as
RM20-9904-C-HDBNC, RM20-9904-F-HDBNC, or RM20-9904-K-HDBNC) is to be fitted with
SFP option. Rear modules RM20-9904-C-HDBNC, RM20-9904-F-HDBNC,
RM20-9904-G-HDBNC, RM20-9904-K-HDBNC and option -UDX-SFP-2S or
-UDX-SFP-4S are available separately.
-SFP-EOOE-12G 12G/6G/3G/HD/SD-SDI UHD Transceiver (LC female connectors)
-SFP-EO-12G 12G/6G/3G/HD/SD-SDI UHD Transmitter (LC female connector)
-SFP-OE-12G 12G/6G/3G/HD/SD-SDI UHD Receiver (LC female connector)
-SFP-2EO-12G 12G/6G/3G/HD/SD-SDI UHD Dual Transmitter (LC female connector)
-SFP-2OE-12G 12G/6G/3G/HD/SD-SDI UHD Dual Receiver (LC female connector)
-SFP-EOOE Single-Channel Video Optical Transceiver (LC female connectors)
-SFP-EO Single-Channel Video Optical Transmitter (LC female connector)
-SFP-OE Single-Channel Video Optical Receiver (LC female connector)
-SFP-2EO Dual-Channel Video Optical Transmitter (LC female connector)
-SFP-2OE Dual-Channel Video Optical Receiver (LC female connector)
-SFP-IP-SWD Software-Defined EmSFP; 2011/2022-6 Encap/De-Encap Host. 10GigE Multi-Mode Optical Interface with Female LC Duplex Connectors. The following I/O purposing software options are available for cards using SFP type -SPF-IP-SWD (Up to 3 software licenses can be added to the -SFP-IP-SWD, but only 1 license can be active at a time):
+ADD-SFP-2SDI-TO-IP-2022-6 SFP Software License; Dual-Channel Encapsulator 2SDI-to-IP-2022-6
+ADD-SFP-2SDI-TO-IP-2110 SFP Software License; Dual-Channel Encapsulator 2SDI-to-IP-2110
+ADD-SFP-IP-TO-2SDI-2022-6 SFP Software License; Dual-Channel De-Encapsulator
IP-2022-6-to-2SDI
+ADD-SFP-IP-TO-2SDI-2110 SFP Software License; Dual-Channel De-Encapsulator IP-2110-to-2SDI
+ADD-SFP-IP-TO-SDI-2022-6 SFP Software License; Single-Channel De-Encapsulator IP-2022-6-to-SDI
+ADD-SFP-IP-TO-SDI-2110 SFP Software License; Single-Channel De-Encapsulator IP-2110-to-SDI
+ADD-SFP-SDI-TO-IP-2022-6 SFP Software License; Single-Channel Encapsulator SDI-to-IP-2022-6
+ADD-SFP-SDI-TO-IP-2110 SFP Software License; Single-Channel Encapsulator SDI-to-IP-2110

+SCTE104-FAST Frame Accurate SCTE104 Trigger. Software option available (per path) for the following products: 9902-UDX, 9902-2UDX, 9904-UDX, 9904-UDX-4K (the option in this card does not support manual or GPI insertions), 9922-FS, 9922-2FS, 9902-UDX-FS, 9903-UDX-ADDA, 9934-AUD-PRO, 9950-EMDE-ANC, BBG-1002-UDX, BBG-1002-2UDX, BBG-1022-FS, BBG-1022-2FS, BBG-1002-UDX-FS, BBG-1003-UDX-ADDA, BBG-1034-AUD-PRO, BBG-1050-EMDE-ANC. Frame Accurate SCTE104 Trigger with support for SCTE-104 Proxy over TCP. Software option available (per path) for the following products: 9902-UDX, 9902-2UDX, 9922-FS, 9922-2FS, 9950-EMDE-ANC, BBG-1002-UDX, BBG-1002-2UDX, BBG-1022-FS, BBG-1022-2FS, BBG-1002-UDX-FS, BBG-1050-EMDE-ANC. (Supported for both paths. Controls for the manual insertions not available on path 2)
+DUAL-OUTPUT-9904 Enables 4K and HD outputs on the 9904-UDX series. This license does not enable a second 4K path. It only supports +3DLUT-PRO and -H2S Options on both outputs. Software option available for the following product: 9904-UDX-4K
+QC Quality Check Allows criteria such as black/ frozen frame events to propagate an event alert. This alert can be used by the card Presets function to invoke video routing changes, GPO, and other actions.
+DLY Option Expands the delay capability to 60 frames. (All video formats) NOTE: Not available if +DUAL-OUTPUT-9904 option is installed.

Product Downloads
