Electrical
Power: 17 watts

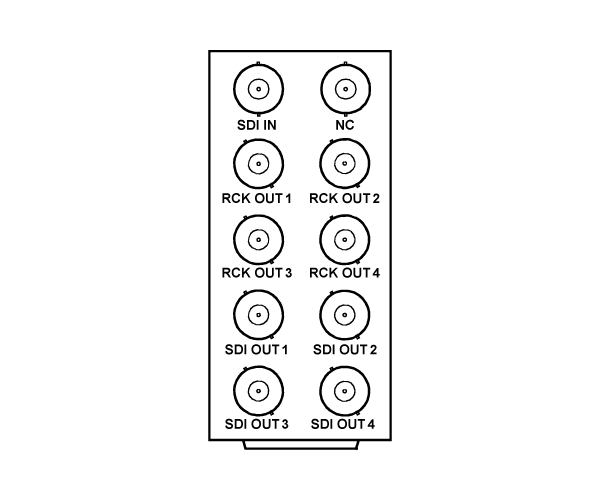

HD/SD-SDI Input
Number of Inputs: 1
Standard: SMPTE 292 and 259M
Return Loss: >15 dB at 5 MHz - 1.485 GHz

Reference Video Input
Number of Inputs: 2 looping (openGear® frame)
Standard: Tri-level sync (SMPTE 274) and black burst (NTSC and PAL)

HD/SD-SDI Output
Number of Outputs: 4 reclocked
4 processed
Standard: SMPTE 292 and 259M
Signal Level: 800 mV nominal
Return Loss: >15 dB at 5 MHz - 270 MHz
>12 dB at 270 MHz - 1.485 GHz
Jitter: HD: < 0.15 UI
SD: < 0.10 UI
Embedded Audio: 16-Ch SD/HD

RGB Color Correction
RGB Black Adjust (one per primary):
-100% to 100% in 0.1% steps
RGB White Adjust (one per primary):
0% to 200% in 0.1% steps
RGB Gamma Control (one per primary):
0.125 to 8.0 in 0.001 steps

YCbCr Proc Amp
White Adjust (Gain): 0 to 200% in 0.1% steps
Black Adjust (Lift): -100% to 100% in 0.1% steps
C Gain (Saturation): 0% to 200% in 0.1% steps
Color Phase: -360° to + 360° in 0.1
degree steps
YCbCr Clipper:
Y Black hard clip (values limited at or above):
-6.8% to 50% in 0.1% steps
Y White hard clip (values limited at or below):
50% to 109.1% in 0.1% steps
Y White soft clip (values rolled off at):
50% to 109.1% in 0.1% steps
CbCr Saturation clip (values limited at or below):
50% to 160% in 0.1% steps

Note
This card uses a daughtercard mounted on the card right-side (viewed from front). As such, this card cannot be installed in Slot 20 of a 20-slot frame (the card must be installed in even-numbered slots 2 through 18). Please note this when fitting out a frame using this card.
