ARIA OG-AUD2-DANTE
Dual Path 12G SDI DANTE/AES/MADI Embed/De-Embed functions Frame Sync Option
ARIA Logo
Dante Logo
Product Categories
12G / 4K-UHD12G Signal Processors
Embedders / De-EmbeddersAES Embedders/De-Embedders
Audio Processors12G Audio Processors
openGear® CardsEmbedders and De-Embedders
Simultaneously embed and de-embed audio between SDI, DANTE, AES and MADI with flexible routing and mixing.

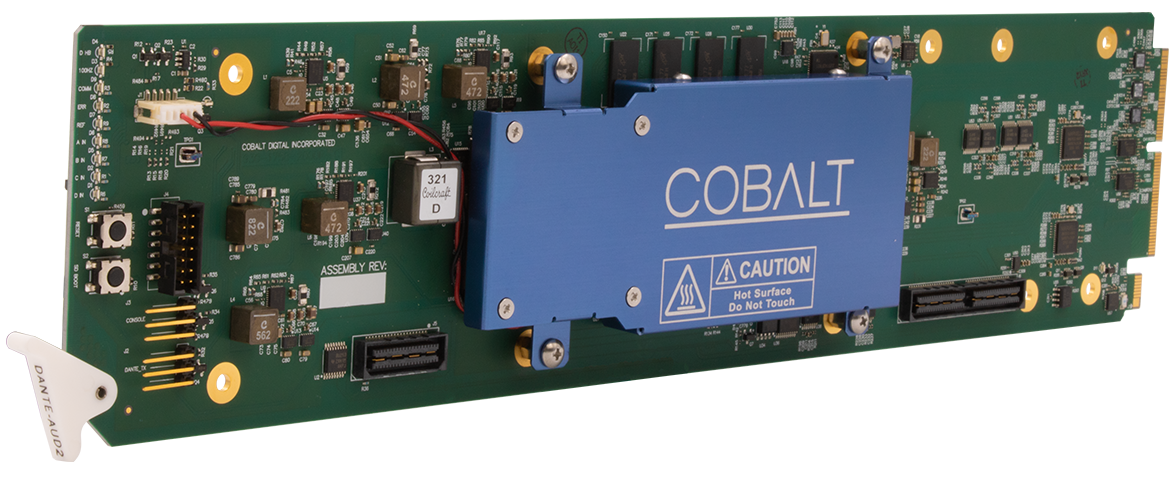

Cobalt Digital introduces the ARIA OG-AUD2-DANTE — a DANTE® card in openGear® card form factor. The COBALT ARIA OG-AUD2-DANTE is a dual path unit with 12G SDI and DANTE/AES/MADI
which can simultaneously embed and de-embed audio between SDI, DANTE, AES and MADI with flexible routing and mixing. This card also includes a built-in frame sync.
This openGear card features two gigabit Ethernet ports, and a 32×32 DANTE channel matrix mixer.
The Cobalt ARIA OG-AUD2-DANTE — High-density, compact openGear card-based solution, allows multiple devices to be installed in a single frame for up to 20 paths per 20-slot frame, as well as
offering the standard features of redundant hot-swappable power supplies and hot-swappable cards.

ARIA OG-AUD2-DANTE

Key Features

(2) SDI Inputs and Outputs, capable of up to 12G-SDI operation

(1) MADI Input and (1) MADI Output

(8) AES inputs/outputs – each block of 4 ports is software configurable as Input or Output

Simultaneous embedding and de-embedding

DashBoard™ Ethernet control and set up

Full routing and mixing between SDI, DANTE, MADI and AES

SDI Crosspoints - Connect any Input to any Processing Path and any Processing Path to any Output.

(2) Gigabit Ethernet ports for redundant DANTE operation

DANTE matrix size: ARIA OG-AUD2-DANTE: 32x32

FIVE YEAR WARRANTY

Specifications

12G/6G/3G/1.5G/SD-SDI Input/Outputs
(2) 75Ω inputs (max)
(2) 75Ω outputs (max)
Supports resolutions of: NTSC, PAL, 720p, 1080i, 1080psf, 1080p, and 2160p
Supports frame rate of: 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60
SDI Formats Supported: SMPTE ST2082-1,10, 424M,
292M, SMPTE 259M-C. All inputs/outputs 12G compliant.

MADI Inputs/Outputs

(1) 75Ω MADI input
(1) 75Ω MADI output

AES Inputs/Outputs
(8) 75Ω AES Input/Outputs. Each block of four ports
is software-configurable as Input or Output.

1G Ethernet Ports
(2) 1G Ethernet ports

Return Loss:
> 5 dB up to 12 GHz
> 7 dB up to 6 GHz
> 10 dB up to 3 GHz
> 15 dB up to 1.485 GHz

Input Cable Length:
45m Belden 1694A cable at 11.88 Gbps
120m Belden 1694A cable at 2.97 Gbps
240m Belden 1694A cable at 1.485 Gbps
400m Belden 1694A cable at 270 Mbps

Power Output: < 35 W

Output Signal Level: 800 mV ± 10%

DC Offset: 0 V ± 50 mV

Rise and Fall Time @ 11.88 Gbps: < 45 ps

Alignment Jitter (12G/3G/1.5G/SD):
< 0.3/0.3/0.2/0.2 UI

Frame Sync Audio/VIdeo Delay
Max offset: 20 frames
Latency (min): 1 frame

User Audio Delay Offset from Video
Bulk delay control: -33 msec to +3000 msec.
Per-channel delay controls: -800 msec to +800 msec

Frame Reference Input
(2) reference from frame bus. SMPTE 170M/318M “Black
Burst”, SMPTE 274M/296M “Tri-Level”

Frame Loading
(Max. recommended number of ARIA OG-AUD2-DANTE cards
supported per Frame Model)
• HPF-9000 Frame: (5) cards
• HPF-9500 Frame: (5) cards
• HPF-MAX Frame: (10) cards
• OG3 Frame: (5) cards
• oGx Frame: (7) cards

Diagrams

Block Diagram

Rear I/O Modules

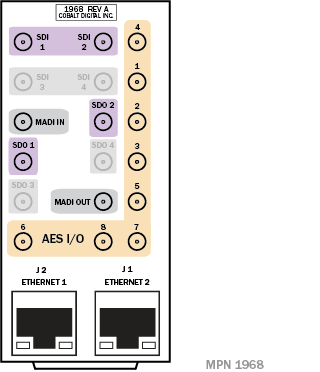

RM20-OG-AUD2-DANTE-A-DIN-HDBNC

RM20-OG-AUD2-DANTE-A-DIN-HDBNC

RM20-OG-AUD4-DANTE-A-DIN-HDBNC (MPN 1968)
20-Slot Frame Rear I/O Module (Standard-Width)
(4) 12G/6G/3G/1.5G/SD-SDI Inputs
(4) 12G/6G/3G/1.5G/SD-SDI Processed Outputs
(8) AES I/O
(1) MADI Input
(1) MADI Output
(2) 1G Ethernet ports
*All coaxial connectors are HDBNC
Note: Mates to card in an even-numbered frame slot.

Options

Hardware Options

-ARIA-OG-AUD-ANALOG

Hardware option with 2 AES and 8 analog audio inputs and outputs support with the rear I/O for the ARIA OG-AUD2-DANTE and ARIA OG-AUD4-DANTE openGear cards.
