9071 HD/SD-SDI AFD Code Inserter

Tabs

Overview

(This product is discontinued. Please see 9950-EMDE-ANC for its replacement.) The 9071 provides cost-effective HD/SD-SDI AFD code insertion. AFD codes can be applied, even if there is no code detected on the input. The output line for the AFD code can also be selected. For video input already having a code, the AFD code can be changed as desired. All video, audio, closed captioning and timecode data is passed through the card unaffected.

Features

HD/SD digital inputs
AFD code insertion
16 user presets
Remote control/monitoring via Dashboard ™ software or OGCP-9000 remote control panels
Five year warranty

Diagrams

Specifications

Electrical
Power: 8 watts

HD/SD-SDI Input
Number of Inputs: 1
Standard: SMPTE 292M and 259M
Return Loss: >15 dB at 5 MHz - 1.485 GHz

Processing Delay
Total Delay: < 3.2 μsec

HD/SD-SDI Output
Number of outputs: 4 reclocked; 4 processed
Standard: SMPTE 292M and 259M
Signal Level: 800 mV nominal
Return Loss: >15 dB at 270 MHz - 5 MHz
>12 dB at 270 MHz - 1.485 GHz
Jitter: HD: < 0.15 UI
SD: < 0.10 UI
Embedded Audio: 16-Ch SD/HD (passthrough)

Rear Module Options

Rear Modules

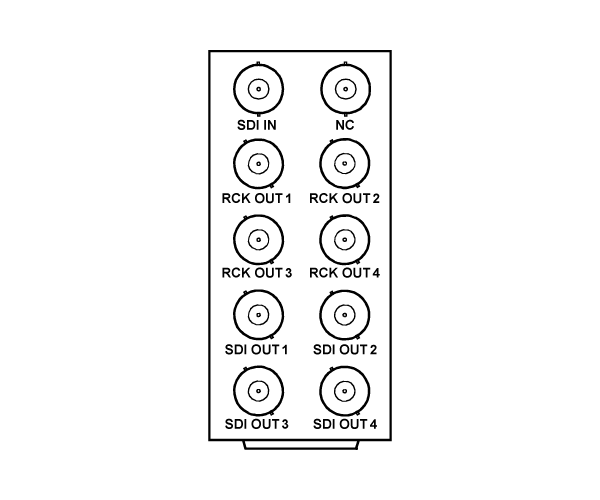

RM20-9071-A

   • SDI In
   • (4) Reclocked Input SDI Out
   • (4) Processed SDI Out
   (All coaxial connectors BNC)

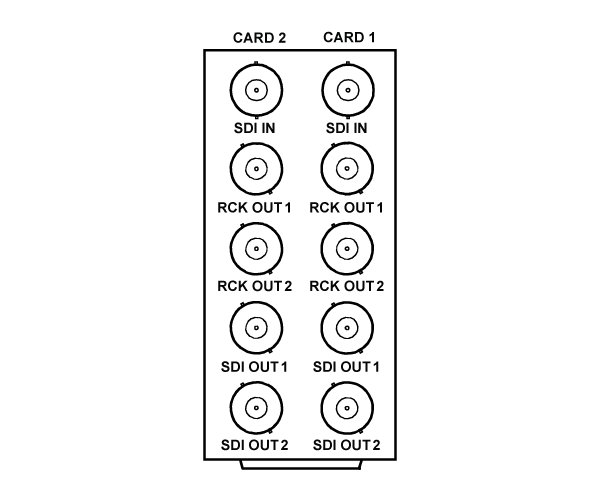

RM20-9071-A/S

   (Dual-card (split) rear module; connections are per card)
   • SDI In
   • (2) Reclocked Input SDI Out
   • (2) Processed SDI Out
   (All coaxial connectors BNC)

Ordering Information

9071 HD/SD-SDI AFD Code Inserter
RM20-9071-A 20-Slot Frame Rear I/O Module (Standard Width) HD/SD-SDI Input BNC, 4 SDI Reclocked Output BNCs, 4 SDI Processed Output BNCs
RM20-9071-A/S 20-Slot Frame Rear I/O Module (Split; supports 2 cards) HD/SD-SDI Input BNC, 2 SDI Reclocked Output BNCs, 2 SDI Processed Output BNCs (connections are per card)
