BlueBox™ offers excellent performance, and excels to a new level of ease of use and installation practicality. The Blue Box BBG-S-TO-A can power directly via USB to get its power from video monitors or other equipment. Blue Box SDI to Analog passes line 21 closed-captioning for SD conversions, and can be set to provide to provide SMPTE, Betacam™, MII, or RGB component outputs using an easy to use DIP switch. S-video or 3x DA CVBS output modes are also provided for SD streams.
Group 1 and 2 stereo pairs can be de-embedded from SDI and outputted via an analog audio output line-level pair.
Key Features
Rugged construction backed with a five-year warranty
Passes line 21 closed-captioning for SD-SDI to analog conversions
De-embedding from selectable embedded pair to stereo analog audio outputs
Offers conversions to several component and composite standards
SDI input copy output allows converter to provide SDI pass-thru
Compact size and low weight design easily affixes directly to camera or host device chassis. Optional BBG-MB mounting bracket provides rigid, secure mounting to mounting surfaces.
Powers directly from host equipment USB or standard corded power adapter. USB power and corded adapter can be simultaneously used to provide redundant power sourcing.
Specifications
Standards Supported
SMPTE 259M, 292M
Inputs
– SDI (75Ω BNC)
– DC power (via USB or adapter)
Outputs
– YPbPr, RGB, Y/C, or CVBS analog video (75Ω BNCs)
– SDI reclocked input copy (75Ω BNC)
– (2) analog audio (unbalanced consumer RCA)
Audio Conversion Format
48 kHz sampling, 24-bit
Power
5-16 VDC, 2.4 W
DC Power Connectors
USB Mini and coaxial locking connector (for use with supplied Cobalt power adapter)
Dimensions (WxHxD)
5.5” x 3” x 1” (including connector projections)
(139 x 77 x 26 mm)
Operating Temperature Range
-13°F to 149°F
(-25°C to 65°C)
Diagrams

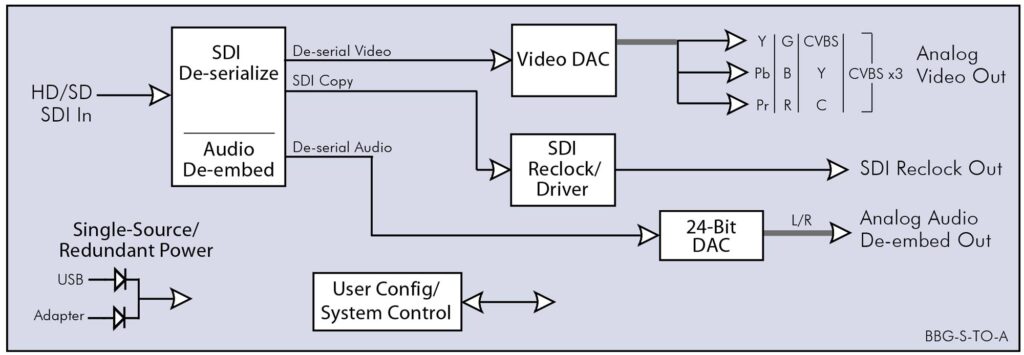

Block Diagram
Note: Device includes one PS4 Power Supply (AC adapter). Power supplies listed below are for replacement or spares purposes:
- PS4 Universal Power Supply, UL/CSA. Input: 100-240V, 60/50 Hz. Output: 5 VDC @ 12 Watts
- PS5 Universal Power Supply, IEC Connector, CE/UL/CSA. Input: 100-240V, 60/50 Hz. Output: 5V, 2A (International Power Supply. Specify country of destination.)
