9232 Utility Analog Video Distribution Amplifier

Tabs

Overview

(This product is discontinued. Please see 9910DA-AV for its replacement.) The 9232 is an analog general-purpose distribution amplifier that is useful in digital systems when there is a requirement for the distribution of basic analog signals, such as a color black reference. It is also highly suited for the distribution of analog SD-video, Tri-level sync or AES audio, as well as for situations where cable equalization and differential input are not needed (and clamping is not required).

Gain is adjustable over a range of ±3 dB. The 9232 is DC-coupled and accurately conveys all aspects of the video input signal to eight identical output copies with very low distortion.

Features

Cost-effective solution for general-purpose analog SD video distribution
User adjustable gain
Remote monitoring via DashBoard™ software or OGCP-9000 remote control panel
Five year warranty

Diagrams

Specifications

Electrical
Power: 2 watts

Analog Video Input
Number of inputs: 1 Looping
Impedance: 75 Ω
Level: 1 Vp-p, nominal
Return Loss: 46 dB at 3.58 MHz

Performance
Freq. Response: >0.05 dB at 3.58 MHz
Differential Gain: >0.15% at 3.58 MHz
Differential Phase: >0.15° at 3.58 MHz
SN: >60 dB, 5 MHz BW

Analog Video Output
Number of Outputs: 8
Impedance: 75 Ω
Level: 1 Vp-p, nominal

Rear Module Options

Rear Modules

Some Rear I/O Modules shown below may also be used for other Cobalt card models. This allows you to re-use rear modules from one card model to another. The Manufacturing Part Number (MPN) shown in the images below is the common code that is used to identify multi-use rear modules. Cross-compatibility can be checked using this number and About Cobalt Rear I/O Modules and Rear Module Cross-Reference at Reference and Help Documents.

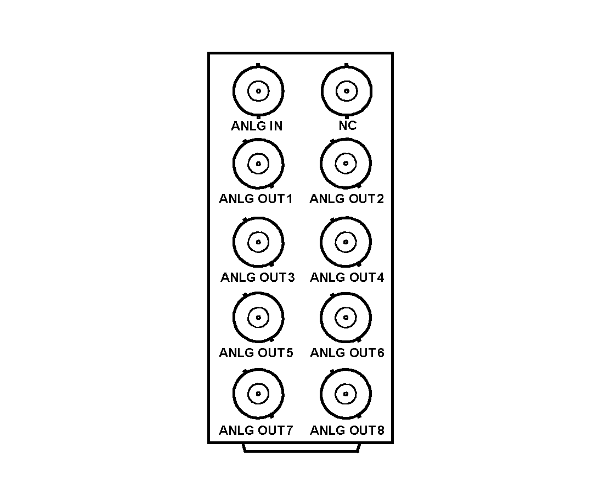

RM20-9232-A

   • CVBS Analog Video In
   • (8) CVBS DA Out (1-8)
   (All coaxial connectors BNC)

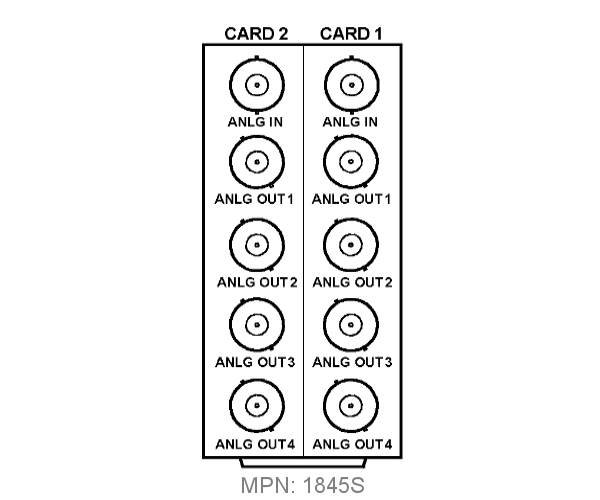

RM20-9232-A/S

    (Dual-card (split) rear module; connections are per card)
   • CVBS Analog Video In
   • (4) CVBS DA Out (1-4)
   (All coaxial connectors BNC)

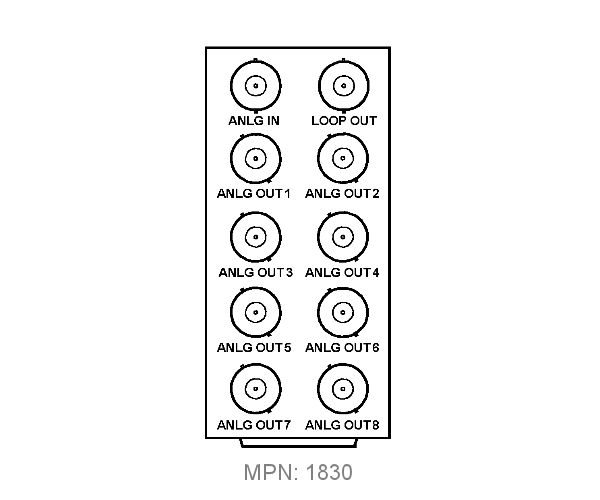

RM20-9232-B

   • CVBS Analog Video In
   • (1) CVBS Input Loop Out
   • (8) CVBS DA Out (1-8)
   (All coaxial connectors BNC)

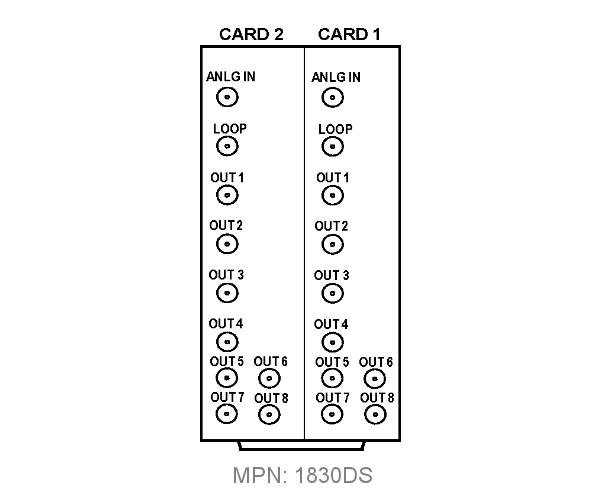

RM20-9232-B/S

    (Dual-card (split) rear module; connections are per card)
   • CVBS Analog Video In
   • (1) CVBS Input Loop Out
   • (8) CVBS DA Out (1-8)
   (All coaxial connectors DIN1.0/2.3 or HD-BNC)

Ordering Information

9232 1 X 8 Analog Video Distribution Amplifier, Looping Option (This product is discontinued. Please see 9910DA-AV for its replacement.)
RM20-9232-A 20-Slot Frame Rear I/O Module (Standard Width) 1 Video Input BNC, 8 Video Output BNCs
RM20-9232-B 20-Slot Frame Rear I/O Module (Standard Width) 1 Video Input BNC, 1 Looped Video Output BNC, 8 Video Output BNCs
RM20-9232-A/S 20-Slot Frame Rear I/O Module (Split; supports 2 cards) 1 Video Input BNC, 4 Video Output BNCs (connections are per card)
RM20-9232-B/S-HDBNC 20-Slot Frame Rear I/O Module (Split; supports 2 cards) 1 Video Input, 1 Looped Video Output, 8 Video Outputs (connections are per card; all connectors are HD-BNC)
RM20-9232-B/S-DIN 20-Slot Frame Rear I/O Module (Split; supports 2 cards) 1 Video Input, 1 Looped Video Output, 8 Video Outputs (connections are per card; all connectors are DIN 1.0/2.3)
