Option +EAS – available on a range of Cobalt Digital products – is the ideal solution for keying Emergency Alert System (EAS) text crawls in the active video and inserting station identification logos.

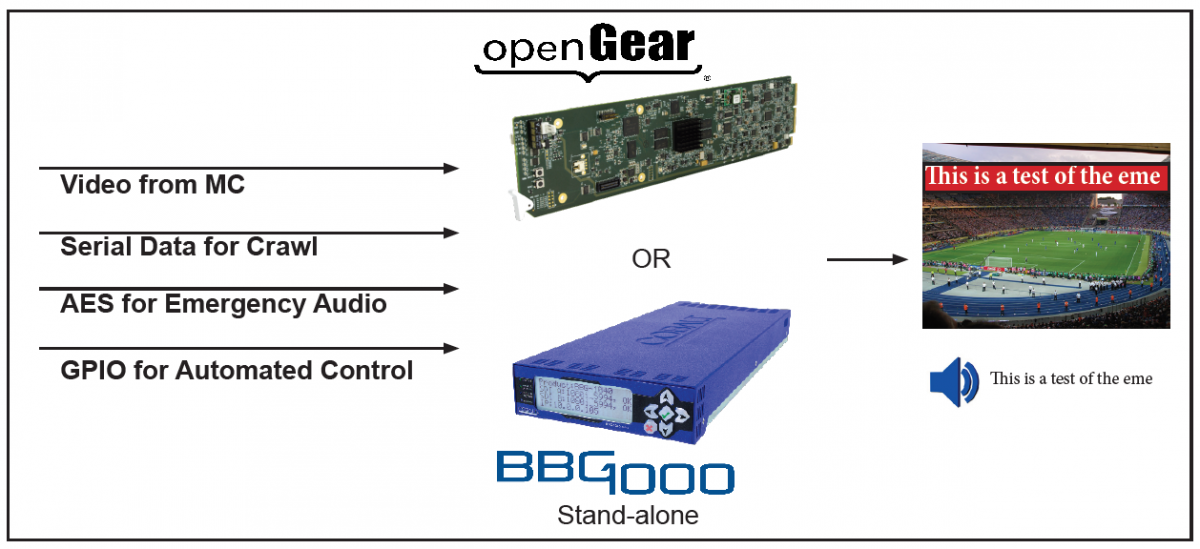

Serial crawl data from an EAS generator (such as Sage™ or Dasdec™) is transmitted to a Cobalt Digital openGear® card or BBG-1000 series stand-alone unit. The crawl data is held until a GPI is sent from the EAS generator, signaling the creation of the text graphics. The GPI also routes digital or analog emergency audio to the embedded video output. Once the GPI goes back to the resting state, the program audio is routed back to the embedded output. Crawl data is played according to the user-selectable loop counter. User-configurable fill background color and text size control can be correlated to event context severity.
AAA
Included with option +EAS is logo insertion, which can be used totally independently of EAS (as an example, for insertion of an on-the-hour station ID), or tied to the EAS crawl function as desired. Insertion enable/disable is via card/device GPI or other actions if desired. The logo insertion included with option +EAS provides for basic single static logo insertion where your png image is uploaded to the card or device.
AAA
This option is available for numerous Cobalt openGear® card-based and
BBG-1000 models where option +EAS is listed in the model web page Options section. The option is software-based and can be ordered with card purchase, or activated later using a downloadable feature key via free DashBoard™ remote control/monitoring software (no need to remove or replace card.)
