9211-OE 3G/HD/SD-SDI Fiber Receiver (OE)

Tabs

Overview

(This product is discontinued. Please see 9410DA-OE for its replacement.) The 9211-OE is a 3G/HD/SD-SDI fiber receiver card, and converts a fiber optic signal to an SDI signal. The 9211-OE detects the incoming fiber signal and outputs the SDI signal over six BNC connectors. Card-edge LED indicators identify the presence of incoming video and the identified signal data rate.

The 9211-OE can operate as a 1x6 (one in, six out) BNC DA using a full rear module (RM20-9211-B), or operate as an independent 1x3 BNC DA using the split rear module (RM20-9211-B/S). In the 1x3 configuration, the outputs are non-inverting, making it an excellent ASI distribution amplifier.

Features

Conforms to SMPTE 424M, SMPTE 292M, and SMPTE 259M
Reclocking at 270 Mbps, 1.483 Gbps, 1.485 Gbps, and 2.970 Gbps
LC/UPC optical connection
Automatic detection of incoming data rate
LED indicators for signal presence and data rate
High density with 20 cards per 20-Slot frame using split rear modules
Remote monitoring via DashBoard™ software or OGCP-9000 remote control panel
Five year warranty

Diagrams

Specifications

Electrical
Power: 4 watts

Optical Input
Number of Inputs: 1
Standard: 143-360 Mbps SMPTE 259
1.485 Gbps - SMPTE 292
3 Gbps - SMPTE 424M
Operating Wavelength Range:
1210 nm to 1600 nm
Connector Type: Single Mode, LC/UPC

SDI Outputs
Number of Outputs: 6 (max)
Return Loss: >15 dB to 1.485 GHz
>10 dB from 1.485 GHz to 2.97 GHz
Connector Type: BNC

Rear Module Options

Rear Modules

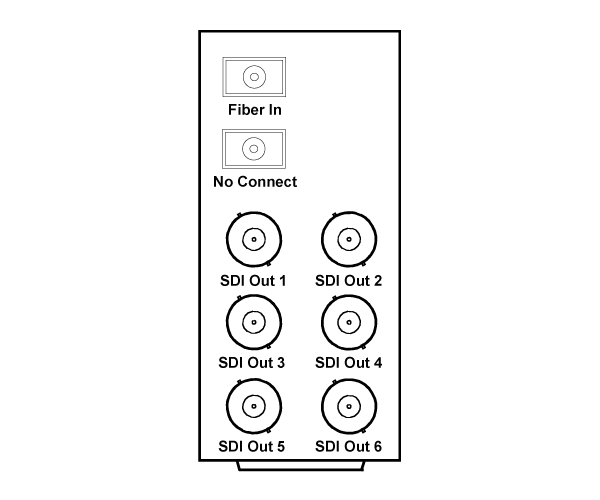

RM20-9211-B

   • Optical In (LC)
   • (6) Reclocked Input SDI Out
   (All coaxial connectors BNC)

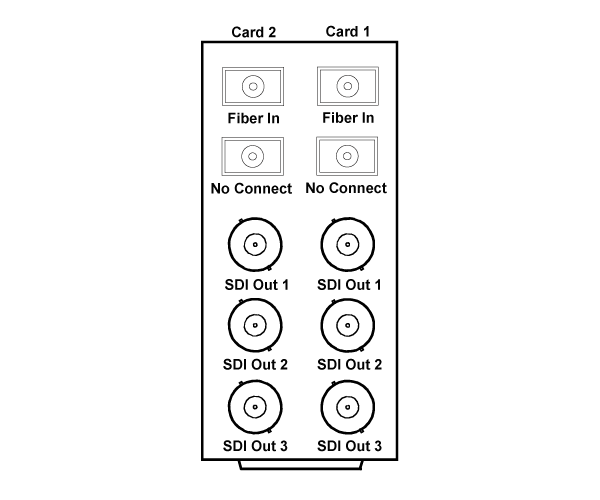

RM20-9211-B/S

   (Dual-card (split) rear module; connections are per card)
   • Optical In (LC)
   • (3) Reclocked Input SDI Out
   (All coaxial connectors BNC)

Ordering Information

9211-OE 3G/HD/SD-SDI Fiber Receiver (OE)
RM20-9211-B 20-Slot Frame Rear I/O Module (Standard Width) 1 Optical LC Input, 6 Reclocked Output BNCs
RM20-9211-B/S 20-Slot Frame Rear I/O Module (Split; supports 2 cards) 1 Optical LC Input, 3 Reclocked Output BNCs (connections are per card)
