9931-EMDE 3G/HD/SD-SDI Embedder/De-Embedder

Tabs

Overview

(This product is discontinued. Please see 9934-AUD-PRO for its replacement. When licensed with corresponding +DSP audio options, 9934-AUD-PRO provides same functions as 9931-EMDE.)

The 3G/HD/SD Fusion3G® 9931-EMDE card offers advanced audio support. Full audio support includes per-channel audio delay. Remote control is quick and easy with the free DashBoard™ remote control software or the Cobalt OGCP-9000 series remote control panels.

You can select from options to add (as inputs and/or outputs) fiber, analog video, and analog audio. Other options include color correction, Dolby® E/AC-3 encoding, ITU/ATSC/EBU compliant loudness metering, and Linear Acoustic® upmixing and loudness processing.

Where full embedding/de-embedding capability is not required, the 9931 card is available as the following base model versions (if desired later, any of these versions can be field upgraded to 9931-EMDE functionality using a firmware upgrade, without removing the card from its frame).

Alternate Base Models

9931-EM 3G/HD/SD-SDI Embedder
9931-DE 3G/HD/SD-SDI De-Embedder

Features

Full 3G/HD/SD-SDI support on BNC coax
Advanced audio processing allows routing, gain, delay, and flexible mixing

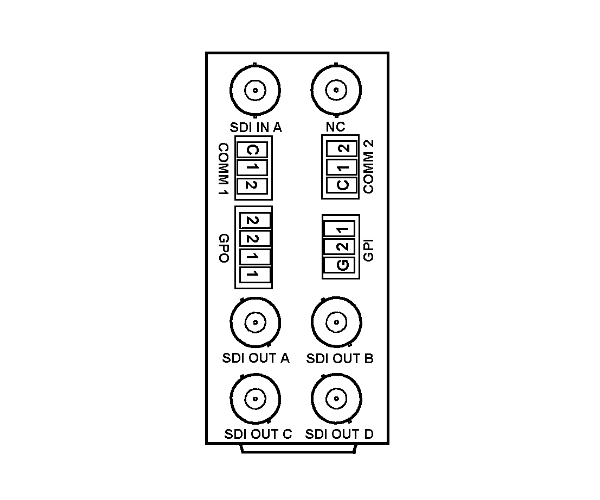

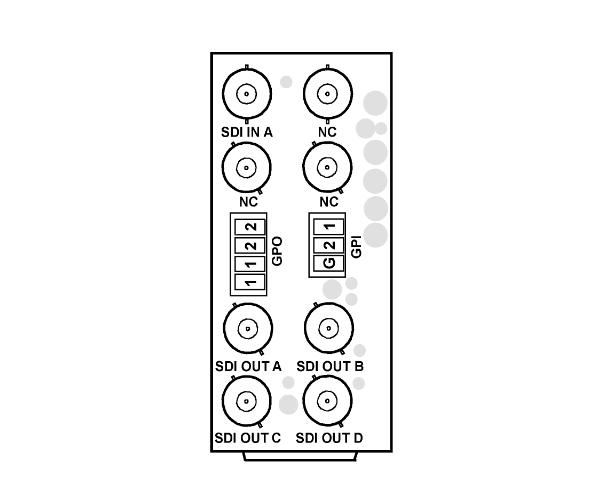

GPIO ports with user-definable functions and an advanced data logging feature provide the utmost in system automation and monitoring
Centralized GUI remote control using DashBoard™ software and Cobalt OGCP-9000 remote control panels — custom settings saved as presets can be recalled manually, or with GPI or events-based triggerings
Full SMPTE timecode support with translation between formats. Timecode sources selectable from SDI and analog video inputs, reference, and internally generated
Five year warranty

Options

Option

FUSION 3G® CARD OPTIONS OVERVIEW

Our Fusion3G® cards support the broadest array of options of any cards in our line. Using these powerful options is like having two or more cards in one card. Adding options allows adding processing versatility without the expense and space usage of extra, added cards. Many Fusion3G® options can be field-installed via an easy software feature upload, allowing select options to be installed as needed on already-installed cards. Software option upgrades typically take less than a minute to upload and require no removal of the card from its frame (these options of course can be ordered for new cards with the option already installed).

All of the Fusion3G® options described here can be installed on any Fusion3G® card (unless noted otherwise).

I/O Option

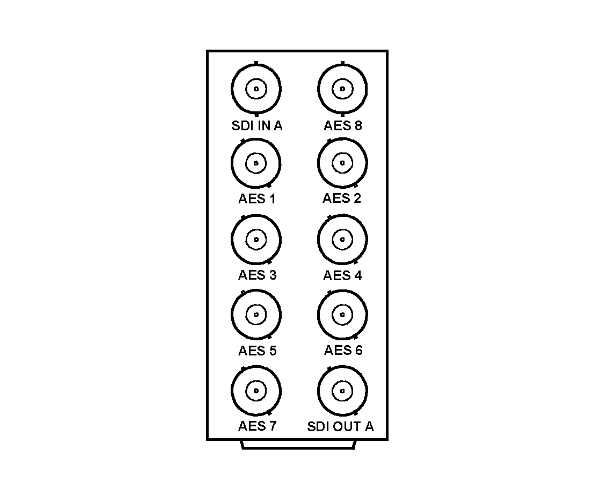

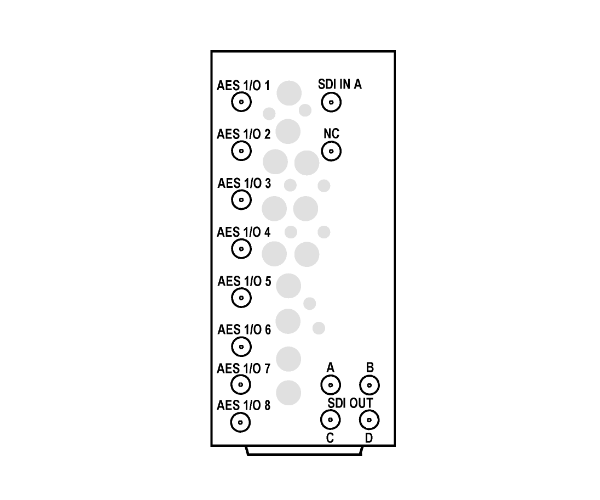

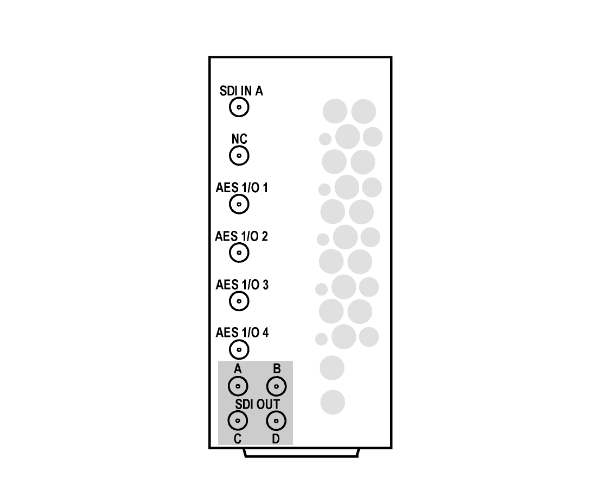

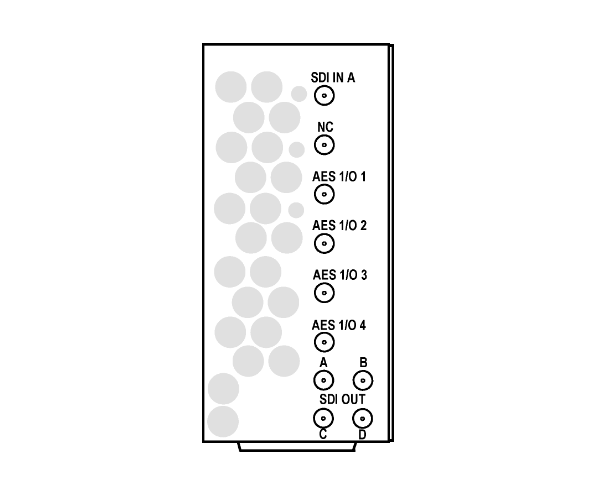

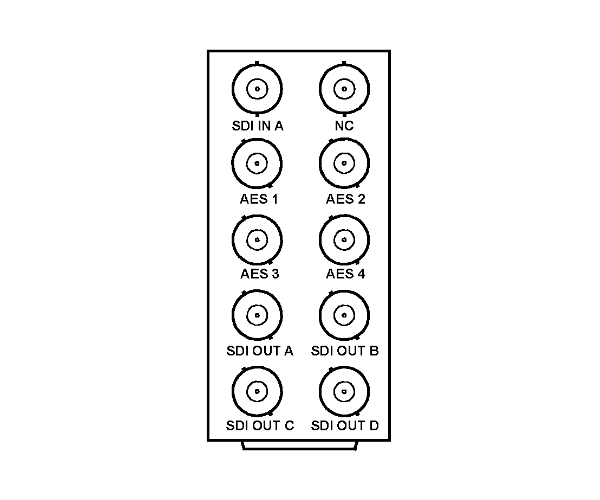

+AES
16-Channel Audio Embedding/De-embedding Option
Provides eight (total) AES pair BNC connections that can be GUI-configured as inputs or outputs. Independent SRC for all AES inputs, with auto and manual bypass for non-PCM data.

Installation: Licensable feature ordered on new card or can be field installed with feature upload. Requires appropriate compatible rear I/O module(s).

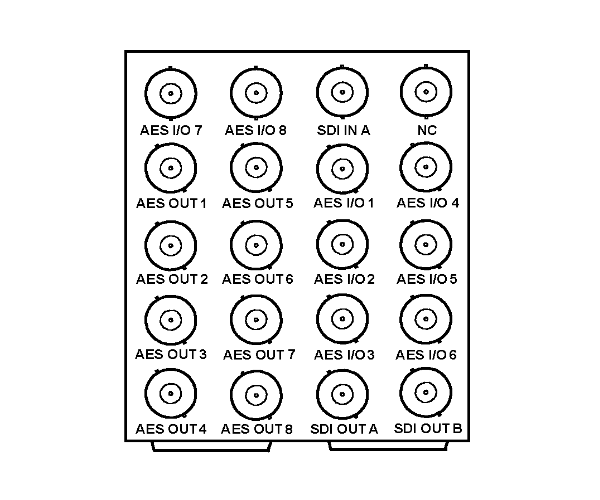

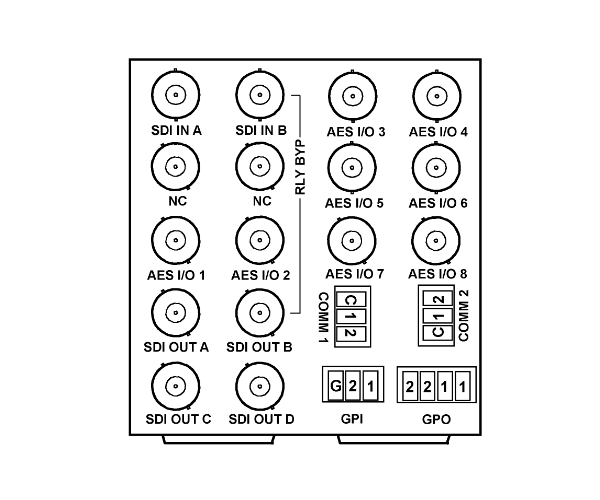

+AES16
8-Port AES Output Expansion Option
Provides the 16-channel embed/de-embed of option +AES (see above) as well as eight added AES output ports to provide a total complement of AES I/O 1 thru AES I/O 8 and added ports AES OUT 1 thru AES OUT 8. Allows 16 channels of AES embedding and 16 channels of AES de-embedding simultaneously.

Installation: Hardware feature available only on new card. Requires appropriate compatible rear I/O module(s).

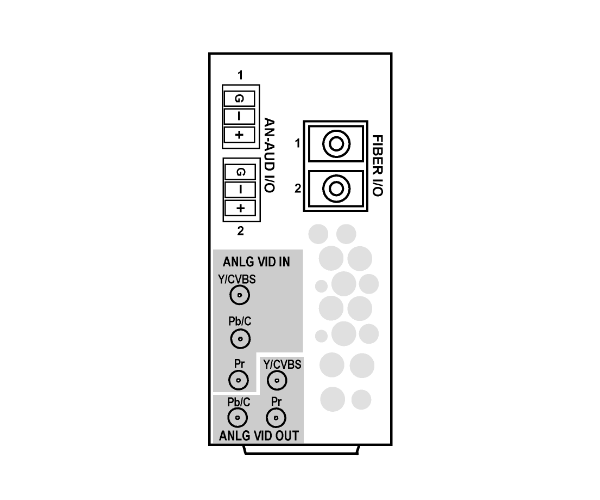

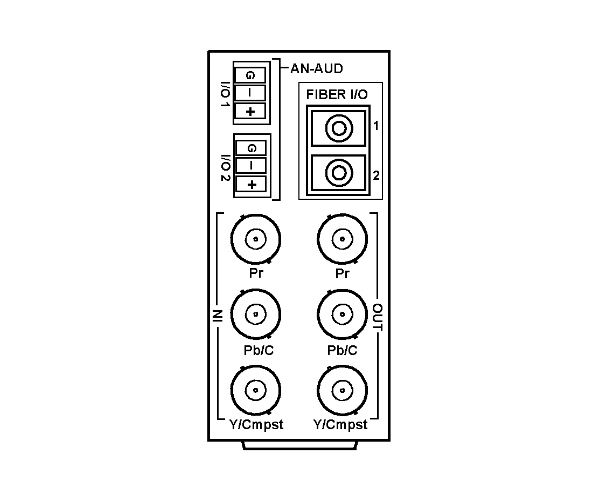

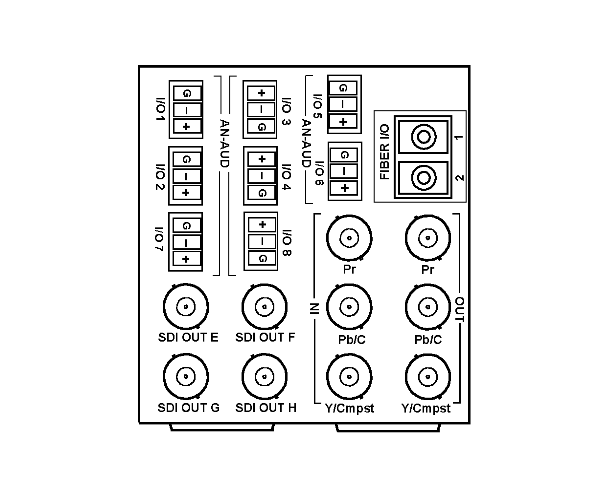

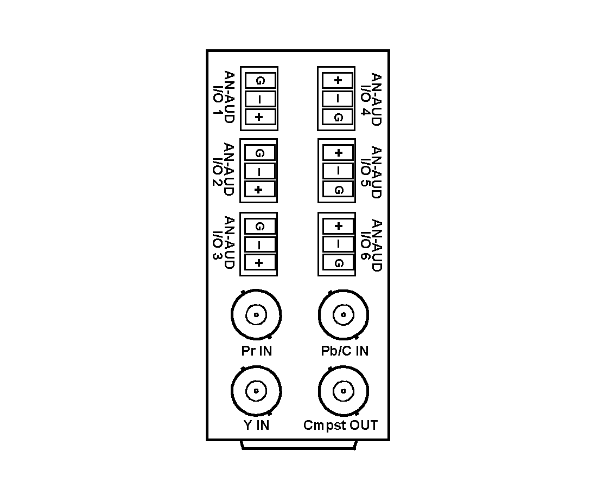

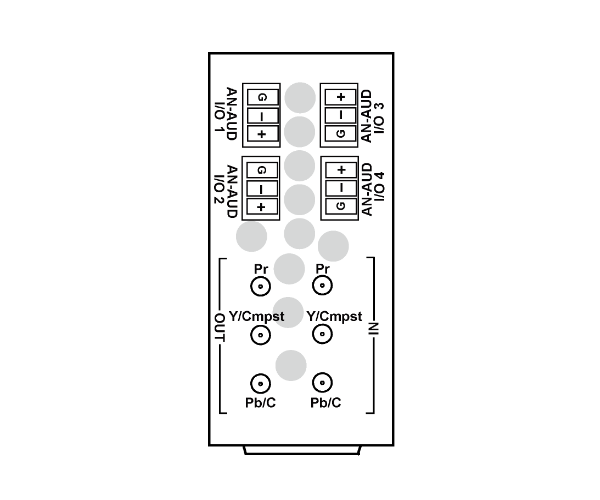

+ANA & +ANV
Analog Audio/Video I/O Options
Assorted options provide balanced analog audio and component/CVBS video input/ouputs.

+ANAIO – Analog audio I/O
+ANAVI – Analog audio/video inputs
+ANAVO – Analog audio/video ouputs
+ANAVIO – Analog audio/video inputs/outputs
See Analog I/O Options detail on web page for more information

Installation: Hardware feature available only on new card. Requires appropriate compatible rear I/O module(s).

+FTx & +FRx
Fiber Input/Output Options
Provides up to two fiber connections per card. Connector type is dual LC with blind-mate connectors. Cards are fully swappable.

+FRx – Single fiber receive (input)
+FTx – Single fiber transmit (output)
+FRxTx – Fiber receive (input) / fiber transmit (output)
+FRxRx– Dual fiber receive (input)
+FTxTx– Dual fiber transmit (output)

Installation: Hardware feature available only on new card. Requires appropriate compatible rear I/O module(s)

Audio Option

+ADM
Auto Downmix Software Option
Provides automatic stereo downmix from selected alternate multi-channel sources if primary stereo channels lose signal.
