(This product is discontinued. Please see 9922-2FS for its replacement. When licensed with option +LTC, 9922-2FS provides same functions as 9392.)
The 9392 3G/HD/SD-SDI Dual-Channel Timecode Burn-In Inserter allows individual SMPTE embedded timecode or RS-485 LTC inputs to be burned onto two respective, independent SDI video streams. The card can burn timecode and up to 16 characters of static text onto program video. Independent, per-channel failover/manual select function provides for a user- selectable flat-field to replace program video either as a manual selection or upon loss of input video. The generated flat field can be timed to input video, or to a frame reference signal. Timecode burn-in and text can be sized and positioned anywhere in the active video area using easy-to-use positioning controls.

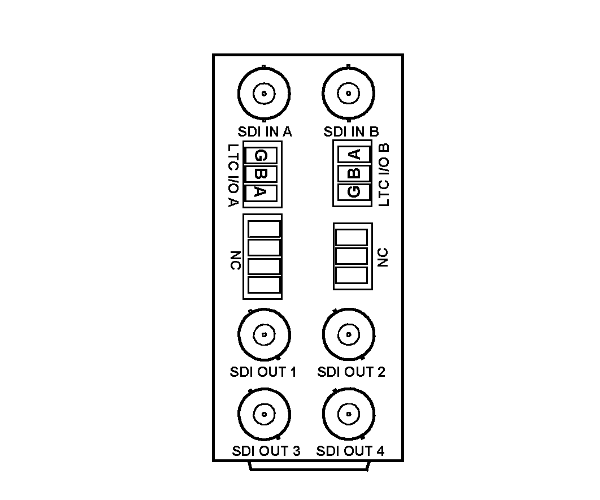

The 9392 also includes a 3x4 SDI output crosspoint, with SDI Out A (channel A),
SDI Out B (channel B), or reclocked SDI In A routable to up to 4 SDI outputs.
